- mpnU32P2G
- brandname: US Motors
- manufacturername: US Motors

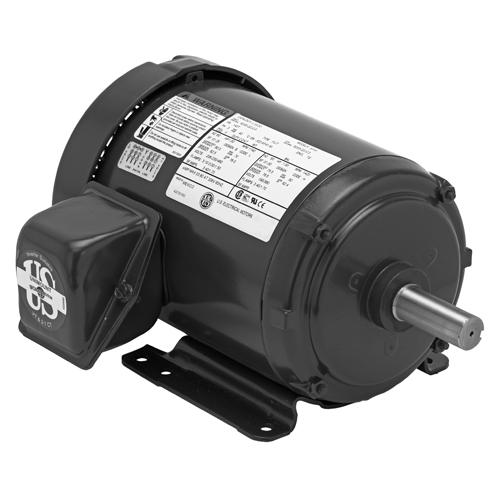

Motor,3PH,1.5HP,1800,575V,Steel Fr
- Brand: U.S. MOTORS
- PartNumber: U32P2G
- Manufacturer: U.S. MOTORS
- Label: U.S. MOTORS
Attributes
| Key | Value |
|---|
| Amps | 1.7 |
| Bearings | Ball |
| Composition | Rolled Steel |
| Construction | Rolled Steel |
| Drive End Flange Type | Standard |
| Efficiency | 86.5% |
| Enclosure | TEFC, Totally Enclosed . |
| Enclosure Type | TEFC (Totally Enclosed . |
| Estimated Weight | 38.50 |
| Family Series | US Motors Motors |
| FL Amps | 1.7 |
| FL Efficiency | 86.5 |
| Frame | 145T |
| Frequency | 60 Hz |
| Gross Weight | 35 lbs |
| Hertz | 60 |
| Horsepower | 1-1/2 hp |
| HP | 1.5, 1 1/2, 1-1/2 |
| Hz | 60 |
| Insulation Class | F |
| Item | General Purpose Motor |
| Item Number | U32P2G |
| Kilowatts | 1.1 kW |
| Length Less Shaft | 10 3/16 in |
| Manufacturer | US Motors (Nidec), US M. |
| Manufacturer Model # | FD23 |
| Manufacturer Part Number | U32P2G |
| Maximum Ambient Tempera. | 40? C |
| Model Number | FD23 |
| Motor Application | General Application |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan-Co. |
| Motor Frame Material | Rolled Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.25 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | None |
| Mounting | Foot Mount, Base |
| Mounting Type | Foot Mount |
| Nameplate RPM | 1,755 |
| NEMA Frame | 145T |
| Net Weight | 0 lbs |
| Nominal Voltage | 575 VAC |
| Number of Poles | 4 |
| Number of Speeds | 1 |
| Overall Length | 13 in |
| Part Number | U32P2G |
| Phase | 3 |
| Product Type | General Purpose, Three . |
| Rotation | Reversible |
| RPM | 1755, 1,755 RPM |
| RPM Range | 1,701-1,800 |
| Service Factor | 1.25 |
| Shaft Dia. | 7/8 in |
| Shaft Length | 2 1/4 in |
| Ship Weight | 35 lbs. |
| Speed (RPM) | 1755 |
| Standards | CE, CSA |
| Usable @ 200V | No |
| Voltage | 575V AC, 575V |
| Voltage (AC) | 575 VAC |
| Voltage Compatibility | 575V AC |
| Volts | 575 |
| Weight | 35 lb |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Global Industrial | WBB467147 | 341.95 | 1 | In Stock | 17 | US Motors | | 341.95 @ 1 |
 | Zoro | G0390815 | 359.05 | 1 | In Stock | | U.S. Motors | 42.6 | 359.05 @ 1 |
 | emotorpro.com | U32P2G | 381.45 | 1 | In Stock | | U.S. Motors | 35.0 | 381.45 @ 1 |
 | Galco | U32P2G-USM | 389.63 | 1 | In Stock | | US Motors | 35.0 | 389.63 @ 1 |
 | motorsandcontrol.com | U32P2G | 389.63 | 1 | In Stock | | US Motors (Nidec) | 38.5 | 389.63 @ 1 |
 | National Supply Network | B467147 | 409.43 | 1 | In Stock | | US MOTORS | | 409.43 @ 1 |
| motionindustries.com | 02899323 | 635.93 | 1 | In Stock | | US Motors (Nidec) | | 635.93 @ 1 |
