- mpnU7P3D
- brandname: US Motors
- manufacturername: US Motors

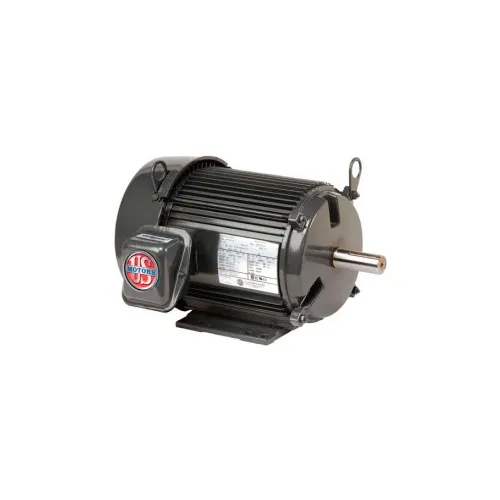

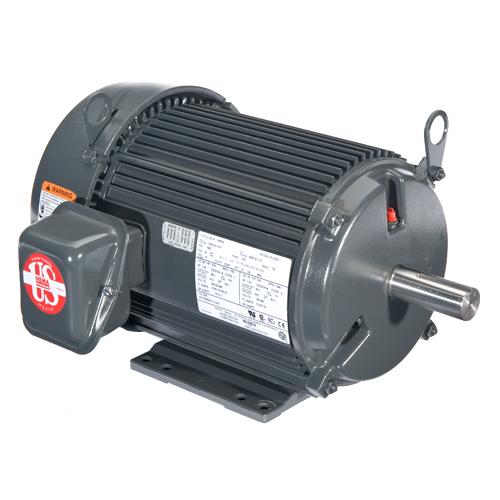

U.S. Motors US Motors Unimount TEFC, 7.5 HP, 3-Phase, 1180 RPM Motor, U7P3D
- Brand: U.S. Motors
- PartNumber: U7P3D
- PackageQuantity: 1
- Manufacturer: U.S. Motors
- Label: U.S. Motors
Attributes
| Key | Value |
|---|
| Amps | 20.6-19/9.5 |
| Bearings | Ball |
| Construction | Aluminum |
| Drive End Flange Type | Standard |
| Efficiency | 91% |
| Enclosure | TEFC |
| Enclosure Type | TEFC (Totally Enclosed . |
| Estimated Weight | 198.00 |
| FL Amps | 20.6-19/9.5 |
| FL Efficiency | 91 |
| Frame | 254T |
| Gross Weight | 180 lbs |
| Hertz | 50, 60 |
| HP | 7 1/2, 7-1/2, 7.5 |
| Hz | 50/60 |
| Insulation Class | F |
| Item | General Purpose Motor |
| Length Less Shaft | 19 7/8 in |
| Manufacturer | US Motors (Nidec) |
| Manufacturer Model # | DY91 |
| Manufacturers Warranty . | 2 yr |
| Maximum Ambient Tempera. | 40? C |
| Motor Application | General Application |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan-Co. |
| Motor Frame Material | Cast Aluminum |
| Motor Mounting Position | Horizontal or Vertical . |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.25 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | None |
| Mounting | Foot Mount, Base |
| Nameplate RPM | 1,200 |
| Number of Speeds | 1 |
| Overall Length | 23 7/8 in |
| Part Number | U7P3D |
| Phase | 3 |
| Product Type | General Purpose, Three . |
| Rotation | Reversible |
| RPM | 1180 |
| RPM Group | 1101-1200 |
| RPM Range | 1,101-1,200 |
| Service Factor | 1.25 |
| Shaft Dia. | 1 5/8 in |
| Shaft Length | 4 in |
| Ship Weight | 180 lbs. |
| Speed (RPM) | 1180 |
| Standards | CE, CSA, UL |
| Voltage | 190V, 230V, 380V, 460V,. |
| Voltage Compatibility | 200-230/440V AC, 200-23. |
| Volts | 208, 230, 460 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Global Industrial | WBB466367 | 1436.0 | 1 | In Stock | 17 | US Motors | | 1436.0 @ 1 |
 | emotorpro.com | U7P3D | 1559.7 | 1 | In Stock | | U.S. Motors | 180.0 | 1559.7 @ 1 |
 | National Supply Network | B466367 | 1588.49 | 1 | In Stock | | US MOTORS | | 1588.49 @ 1 |
 | Zoro | G4583607 | 1639.99 | 1 | In Stock | | U.S. Motors | | 1639.99 @ 1 |
 | Galco | U7P3D-USM | 1644.09 | 1 | In Stock | | US Motors | 180.0 | 1644.09 @ 1 |
 | motorsandcontrol.com | U7P3D | 1644.09 | 1 | In Stock | | US Motors (Nidec) | 198.0 | 1644.09 @ 1 |
| motionindustries.com | 02899387 | 2333.59 | 1 | In Stock | | US Motors (Nidec) | | 2333.59 @ 1 |
