Cle-line C20627

B00J9M5J2Y

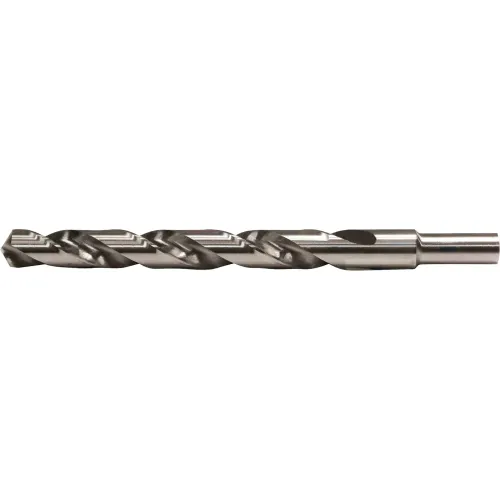

Cle-Line C20627 General Purpose Jobber Length Drill, High Speed Steel, Bright Finish, Reduced Shank, 118-Degree Radial Point, 31/64" Drill Diameter (Pack of 6)

Cle-Line C20627 General Purpose Jobber Length Drill, High Speed Steel, Bright Finish, Reduced Shank, 118-Degree Radial Point, 31/64" Drill Diameter (Pack of 6)zoom

Attributes

Key Value
ApplicationFor Non-Ferrous Materia.
Coolant FedNon-Coolant Through
Country of Origin (subj.United States
Cutting DirectionRight Hand
Decimal Equivalent0.4844
Depth x Dia. Ratio4xD
Depth:Dia. Ratio4xD
Diameter0.4844"
Diameter (Fraction)31/64"
Drill 3/8" ConstructionGeneral Purpose
Drill 3/8" Size SystemFractional
Drill 3/8" StyleJobber Drill 3/8"
Drill Bit Dimension TypeFractional Inch
Drill Bit FinishBright (Uncoated)
Drill Bit GroupingDrill Bit
Drill Bit MaterialHigh Speed Steel
Drill Bit Point Angle118 Degrees
Drill Bit Point TypeRadial Point
Drill Bit Size31/64 in
Drill Diameter Tolerance+0.0000 in /-0.0010 in
Finish - MachiningBright (Uncoated)
Flute Length4.3750", 4 3/8 in
Flute Length (Metric)111.13mm
Flute TypeSpiral
GradeGeneral Purpose
Hand of CutRight
Hand of SpiralRight
Helix Angle21 Degrees to 34 Degre.
ItemReduced Shank Drill Bit
List Number1808
MaterialHSS, High Speed Steel
Material - MachiningHigh Speed Steel
Maximum Drilling Depth1 15/16 in
Measurement SystemFractional Inch
Number of Flutes2
Overall Length5 7/8 in, 5.8750"
Overall Length (Metric)149.22mm
Point Angle118?
Point StyleRadial
Point TypeConventional Point
Series1808
Shank ConfigurationReduced
Shank Dia.3/8 in
Shank End FeatureReduced
Shank End Feature Length1.0000"
Shank Length1 1/2 in, 1.5000"
Shank Length (Metric)38.10mm
Shank Size0.3750"
Shank Size (Metric)9.52mm
Shank TypeRound
Spiral DirectionRight Hand
StandardsNot Rated
Surface ConditionBright
Tool Size31/64"

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomGlobal IndustrialWBB25437987.566Cle-Line7.5 @ 6
thumbzoomusmegastore.comC206278.4516Cle-Line8.45 @ 6
thumbzoomheavydutydepot.comC206278.45126Cle-Line8.45 @ 12
thumbzoomZoroG494139911.126612Cle-Line0.2311.12 @ 6
