Cle-Line C20637

mpnC20637
brandname: Cle-Line
manufacturername: Cle-Line

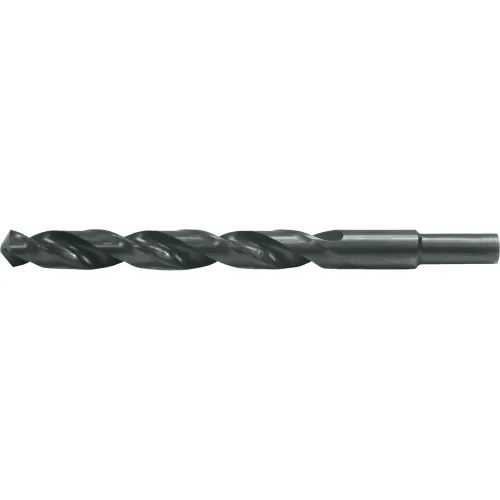

Cle-Line C20637 Heavy Duty Jobber Length Drill, High Speed Steel, Steam Oxide Finish, Reduced Shank, 135-Degree Split Point, 31/64" Drill Diameter (Pack of 6)

Brand: Cle-Line
PartNumber: C20637
Model: C20637
PackageQuantity: 1
Binding: Misc.
Manufacturer: Greenfield Industries (TEG)
Label: Greenfield Industries (TEG)

Attributes

Key	Value
Applicable Materials	Stainless Steel, Tool S.
Coolant Fed	Non-Coolant Through
Country of Origin (subj.	United States
Cutting Depth	5XD
Cutting Direction	Right Hand
Cutting Edge Material	HSS
Decimal Equivalent	0.4844
Depth x Dia. Ratio	4xD
Depth:Dia. Ratio	4xD
Diameter	0.4844"
Diameter (Fraction)	31/64"
Drill Bit Dimension Type	Fractional Inch
Drill Bit Finish	Black Oxide
Drill Bit Grouping	Drill Bit
Drill Bit Material	High Speed Steel
Drill Bit Point Angle	135 Degrees
Drill Bit Point Type	Split Point
Drill Bit Size	31/64 in
Drill Construction	Heavy-Duty
Drill Diameter Measurem.	Imperial
Drill Diameter Tolerance	+0.0000 in /-0.0010 in
Drill Size - Decimal In.	0.4844 in
Drill Size - Fraction	31/64 in
Drill Size System	Fractional
Drill Style	Jobber Drill
Finish	Black Oxide
Finish - Machining	Black Oxide
Flute Length	4.3750", 4-3/8 in, 4 3/.
Flute Length (Metric)	111.13mm
Flute Type	Right Spiral, Spiral
Hand of Cut	Right
Hand of Spiral	Right
Helix Angle	28 Degrees
Item	Reduced Shank Drill Bit
Material	HSS, High Speed Steel
Material - Machining	High Speed Steel
Maximum Drilling Depth	1 15/16 in
Measurement System	Fractional Inch
Number of Flutes	2
Overall Length	5 7/8 in, 5-7/8 in, 5.8.
Overall Length (Metric)	149.22mm
Point Angle	135 deg, 135?
Point Style	Split
Point Type	Split
Series	1809
Shank Configuration	Reduced
Shank Dia.	3/8 in
Shank End Feature	Reduced
Shank End Feature Length	1.0000"
Shank Length	1 in, 1.5000"
Shank Length (Metric)	38.10mm
Shank Size	3/8 in Dia x 1-1/2 in L.
Shank Size (Metric)	9.52mm
Shank Type	Reduced
Spiral Direction	Right Hand
Standards	Not Rated
Style	1809
Surface Condition	Steam Oxide
Through Coolant (Yes/No)	No
Tool Size	31/64"
Type	Heavy Duty

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
Megadepot	C20637	8.05	1	6		Cle-Line		8.05 @ 6
heavydutydepot.com	C20637	8.05	13	6		Cle-Line		8.05 @ 13
Global Industrial	WBB2543668	8.2	6	6		Cle-Line		8.2 @ 6
usmegastore.com	C20637	8.32	1	6		Cle-Line		8.32 @ 6
Zoro	G4941310	9.0	6	6	10	Cle-Line	0.23	9.0 @ 6
MRO Supply	6123922	9.65	4	6		Cle-Line		9.65 @ 6
