Cle-line C20726

mpnC20726
brandname: Cle-Line
manufacturername: Cle-Line

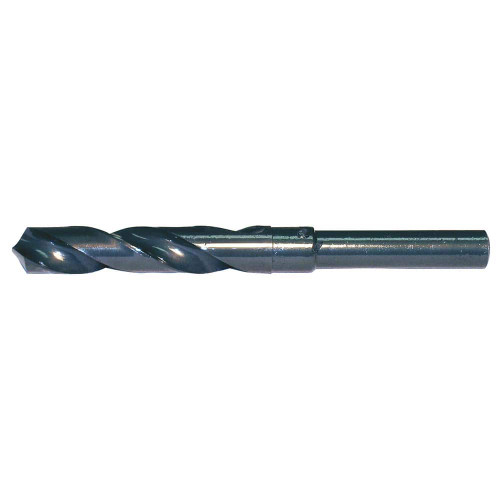

Cle-Line C20726 Silver and Deming Reduced Shank Drill, High Speed Steel, Steam Oxide Finish, Reduced Shank, 118-Degree Radial Point, 57/64" Drill Diameter

Cle-Line C20726 Silver and Deming Reduced Shank Drill, High Speed Steel, Steam Oxide Finish, Reduced Shank, 118-Degree Radial Point, 57/64" Drill Diameter

zoom

Brand: Cle-line
PartNumber: C20726
Model: C20726
PackageQuantity: 1
Binding: Misc.
Manufacturer: Greenfield Industries (TEG)
Label: Greenfield Industries (TEG)

Attributes

Key	Value
Applicable Materials	Iron Based Ferrous Meta.
Application	For Alloy And Carbon St.
Coolant Fed	Non-Coolant Through
Cutting Depth	3-1/8 in
Cutting Direction	Right Hand
Cutting Edge Material	HSS
Decimal Equivalent	0.8906
Depth x Dia. Ratio	4xD
Depth:Dia. Ratio	4xD
Diameter	0.8906"
Diameter (Fraction)	57/64"
Drill Bit Dimension Type	Fractional Inch
Drill Bit Finish	Black Oxide
Drill Bit Point Angle	118 Degrees
Drill Bit Size	57/64 in
Drill Construction	General Purpose
Drill Diameter Tolerance	+0.0000 in /-0.0012 in
Drill Size - Decimal In.	0.8906 in
Drill Size - Fraction	57/64 in
Drill Size System	Fractional
Drill Style	Silver & Deming Drill
Finish	Black Oxide
Finish - Machining	Black Oxide
Flute Length	3.1250", 79.38 mm, 3-1/.
Flute Length (Metric)	79.38mm
Flute Type	Spiral
Hand of Cut	Right
Hand of Spiral	Right
Helix Angle	28 Degrees
Item	Reduced Shank Drill Bit
Material	HSS
Maximum Drilling Depth	3 9/16 in
Number of Flutes	2
Overall Length	6.0000", 6 in
Overall Length (Metric)	152.40mm
Point Angle	118 deg, 118?
Point Style	Radial
Point Type	Radial
Series	1813
Shank Configuration	Reduced
Shank Dia.	1/2 in
Shank Length	2 1/4 in, 2.2500"
Shank Length (Metric)	57.15mm
Shank Neck Diameter	0.8466"
Shank Neck Length	0.5000"
Shank Size	0.5000", 1/2 in
Shank Size (Metric)	12.70mm
Shank Type	Reduced
Silver & Deming Drill	No
SKU	C20726
Spiral Direction	Right Hand
Style	1813
Surface Condition	Steam Oxide
Tool Size	57/64"
Type	General Purpose
UPC	6.97E+11

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Zoro	G4958305	21.35	1	In Stock		Cle-Line	0.56	21.35 @ 1
	usmegastore.com	C20726	22.32	1	In Stock		Cle-Line		22.32 @ 1
	Megadepot	C20726	24.23	1	In Stock		Cle-Line		24.23 @ 1
	heavydutydepot.com	C20726	24.23	5	In Stock		Cle-Line		24.23 @ 5
	Global Industrial	WBB2543692	24.5	1	In Stock		Cle-Line		24.5 @ 1
	MRO Supply	6123980	28.8	2	In Stock		Cle-Line		28.8 @ 2
	imsbolt.com	C20726	47.47	1	In Stock		CLE-LINE		47.47 @ 1
