Cle-line C20731

mpnC20731
brandname: Cle-Line
manufacturername: Cle-Line

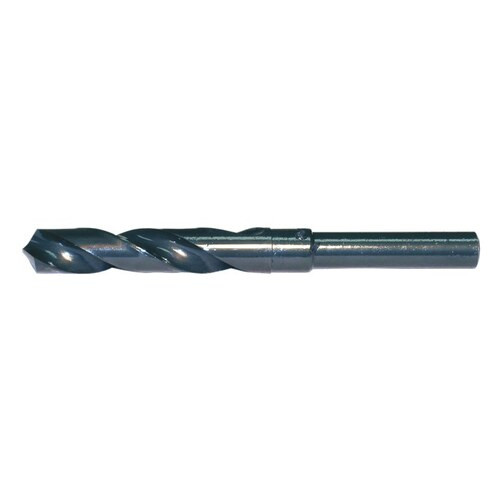

Cle-Line C20731 Silver and Deming Reduced Shank Drill, High Speed Steel, Steam Oxide Finish, Reduced Shank, 118-Degree Radial Point, 1 5/32" Drill Diameter

Cle-Line C20731 Silver and Deming Reduced Shank Drill, High Speed Steel, Steam Oxide Finish, Reduced Shank, 118-Degree Radial Point, 1 5/32" Drill Diameter

zoom

Brand: Cle-line
PartNumber: C20731
Model: C20731
PackageQuantity: 1
Binding: Misc.
Manufacturer: Greenfield Industries (TEG)
Label: Greenfield Industries (TEG)

Attributes

Key	Value
Applicable Materials	Iron Based Ferrous Meta.
Application	For Alloy And Carbon St.
Coolant Fed	Non-Coolant Through
Cutting Depth	3-1/8 in
Cutting Direction	Right Hand
Cutting Edge Material	HSS
Decimal Equivalent	1.1562
Depth x Dia. Ratio	4xD
Depth:Dia. Ratio	4xD
Diameter	1.1562"
Diameter (Fraction)	1-5/32"
Drill Bit Dimension Type	Fractional Inch
Drill Bit Finish	Black Oxide
Drill Bit Point Angle	118 Degrees
Drill Bit Point Type	Conventional Point
Drill Bit Size	1 5/32 in
Drill Construction	General Purpose
Drill Diameter Tolerance	+0.0000 in /-0.0015 in
Drill Size - Decimal In.	1.1562 in
Drill Size - Fraction	1-5/32 in
Drill Size System	Fractional
Drill Style	Silver & Deming Drill
Finish	Black Oxide
Finish - Machining	Black Oxide
Flute Length	3.1250", 79.38 mm, 3-1/.
Flute Length (Metric)	79.38mm
Flute Type	Spiral
Hand of Cut	Right
Hand of Spiral	Right
Item	Reduced Shank Drill Bit
Material	HSS
Maximum Drilling Depth	4 5/8 in
Number of Flutes	2
Overall Length	6.0000", 6 in
Overall Length (Metric)	152.40mm
Point Angle	118 deg, 118?
Point Style	Radial
Point Type	Radial
Primary Material Applic.	Cast Iron, Steel
Primary Material Applic.	K, P
Series	1813
Shank Configuration	Reduced
Shank Dia.	1/2 in
Shank Length	2 1/4 in, 2.2500"
Shank Length (Metric)	57.15mm
Shank Neck Diameter	1.1122"
Shank Neck Length	0.5000"
Shank Size	0.5000", 1/2 in
Shank Size (Metric)	12.70mm
Shank Type	Reduced
SKU	C20731
Spiral Direction	Right Hand
Style	1813
Surface Condition	Steam Oxide
Tool Size	1-5/32"
Type	General Purpose
UPC	6.97E+11

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	usmegastore.com	C20731	40.02	1	In Stock		Cle-Line		40.02 @ 1
	Zoro	G4958497	44.05	1	In Stock		Cle-Line	0.88	44.05 @ 1
	Megadepot	C20731	44.55	1	In Stock		Cle-Line		44.55 @ 1
	heavydutydepot.com	C20731	44.55	3	In Stock		Cle-Line		44.55 @ 3
	Global Industrial	WBB2543768	48.95	1	In Stock		Cle-Line		48.95 @ 1
	MRO Supply	6123985	56.37	1	In Stock		Cle-Line		56.37 @ 1
	imsbolt.com	C20731	89.34	1	In Stock		CLE-LINE		89.34 @ 1
