- mpnC23522
- brandname: Cle-Line
- manufacturername: Cle-Line

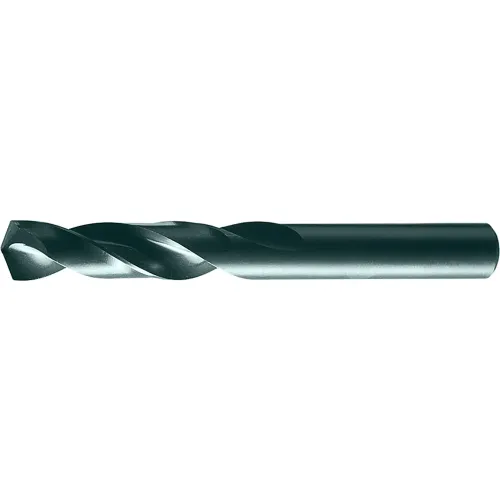

Cle-Line C23522 Heavy Duty Screw Machine Length, High Speed Steel, Steam Oxide Finish, Straight Shank, 135-Degree Split Point, Wire Size 38 (Pack of 12)
- Brand: Cle-line
- PartNumber: C23522
- Model: C23522
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Greenfield Industries (TEG)
- Label: Greenfield Industries (TEG)
Attributes
| Key | Value |
|---|
| Applicable Materials | Alloy Steel, Carbon Ste. |
| Application | For Alloy, Carbon And T. |
| Coolant Fed | Non-Coolant Through |
| Country of Origin (subj. | United States |
| Cutting Depth | 3XD |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Decimal Equivalent | 0.1015 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 0.1015" |
| Diameter (Wire/Let) | 38 |
| Drill Bit Dimension Type | Wire |
| Drill Bit Finish | Black Oxide |
| Drill Bit Point Angle | 135 Degrees |
| Drill Bit Point Type | Split Point |
| Drill Bit Size | #38 |
| Drill Construction | Heavy-Duty |
| Drill Diameter Measurem. | Imperial |
| Drill Diameter Tolerance | +0.0000 in /-0.0005 in |
| Drill Length Class | Screw Machine Length |
| Drill Point Length | 0.021 in |
| Drill Size - Decimal In. | 0.1015 in |
| Drill Size - Wire | #38 |
| Drill Size System | Wire |
| Drill Style | Screw Machine Drill |
| Finish | Black Oxide |
| Finish - Machining | Black Oxide |
| Flute Length | 0.8125", 13/16 in |
| Flute Length (Metric) | 20.64mm |
| Flute Type | Right Spiral, Spiral |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| Helix Angle | 28 Degrees |
| Item | Screw Machine Drill Bit |
| Material | HSS |
| Material - Machining | High Speed Steel |
| Maximum Drilling Depth | 13/16 in |
| Measurement System | Wire, Imperial |
| Number of Flutes | 2 |
| Overall Length | 1.8125", 1 13/16 in, 1-. |
| Overall Length (Metric) | 46.04mm |
| Point Angle | 135 deg, 135? |
| Point Style | Split |
| Point Type | Split |
| Primary Material Applic. | Cast Iron, Steel |
| Primary Material Applic. | K, P |
| Series | 1896 |
| Shank Configuration | Straight |
| Shank Dia. | 3/32 in |
| Shank Length | 1 in, 1.0000" |
| Shank Length (Metric) | 25.40mm |
| Shank Size | 0.1015", 0.1015 in Dia . |
| Shank Size (Metric) | 2.58mm |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| Spiral Direction | Right Hand |
| Standards | ASME B94.11M |
| Style | 1896 |
| Surface Condition | Steam Oxide |
| Tool Size | #38 |
| Type | General Purpose Heavy D. |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Global Industrial | WBB2544186 | 0.9515 | 12 | 12 | | Cle-Line | | 0.9515 @ 12 |
 | Megadepot | C23522 | 1.09 | 1 | 12 | | Cle-Line | | 1.09 @ 12 |
 | heavydutydepot.com | C23522 | 1.09 | 92 | 12 | | Cle-Line | | 1.09 @ 92 |
 | usmegastore.com | C23522 | 1.11 | 1 | 12 | | Cle-Line | | 1.11 @ 12 |
 | Zoro | G4947026 | 1.13 | 12 | 12 | 10 | Cle-Line | 0.03 | 1.13 @ 12 |
 | MRO Supply | 6124910 | 1.17 | 43 | 12 | | Cle-Line | | 1.17 @ 43 |
| AmazonSC | B00J9FBIG2 | 19.89 | 1 | 12 | | Cle-line | | 19.89 @ 12 |
