Dayton 4M101

mpn4M101
brandname: DAYTON
manufacturername: DAYTON

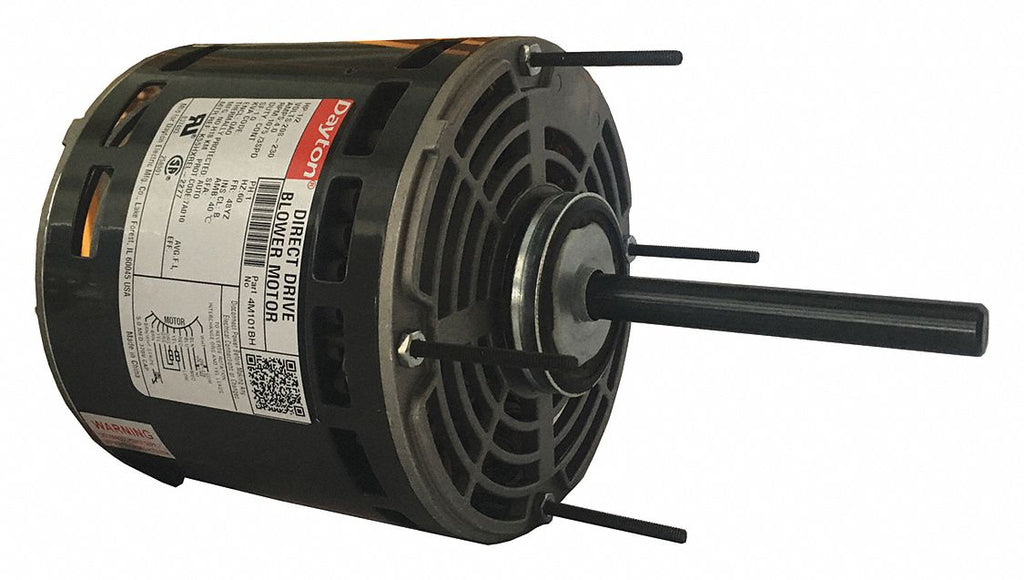

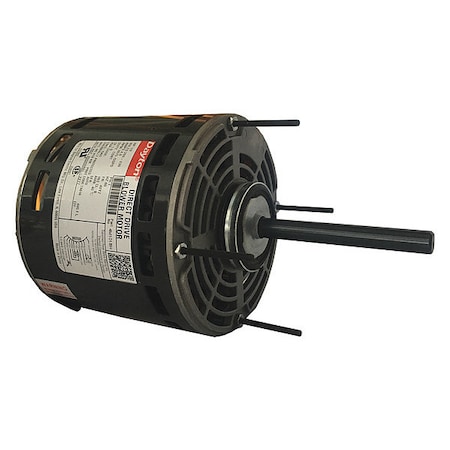

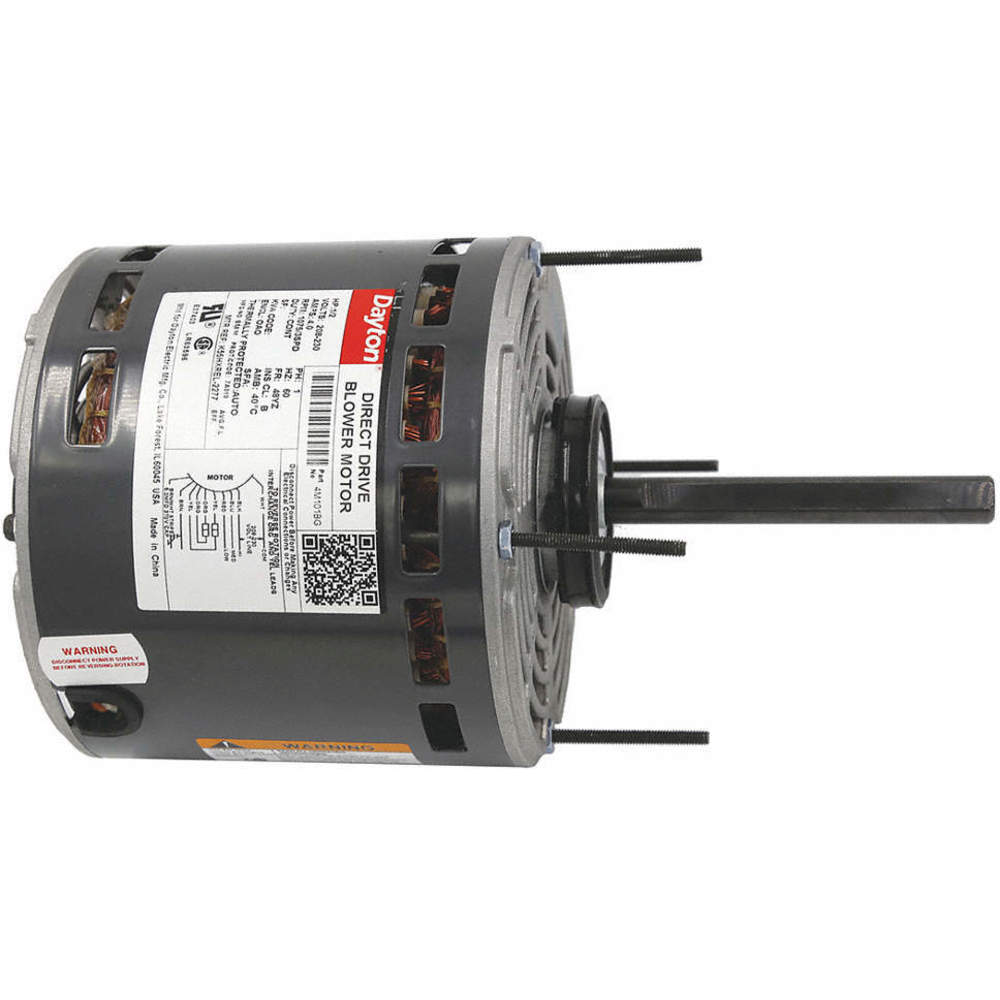

Dayton 1/2 HP Direct Drive Blower Motor, Permanent Split Capacitor, 1075 Nameplate RPM, 208-230 Voltage

Dayton 1/2 HP Direct Drive Blower Motor, Permanent Split Capacitor, 1075 Nameplate RPM, 208-230 Voltage

zoom

Brand: Dayton
PartNumber: 4M101
PackageQuantity: 1
Manufacturer: CAI - DAYTON
Label: CAI - DAYTON

Attributes

Key	Value
Amps	4.0-4.0
Application	Blowers, Fans and Air C.
Bearings	Sleeve
Body Dia.	5 5/8 in
Bolt Circle Dia.	5 1/8 in
Brand	Dayton
Capacitor	5MFD @ 370VAC Run Capac.
Capacitor Required	2MDV4
Cross Reference	4KA37, 3LU84
Current Stock	97
Duty Cycle	Continuous
Efficiency	58.5%
Enclosure Type	OAO (Open Air Over)
Frame	48YZ
Full Load Amps	4.0-4.0
HP	1/2
Hz	60
Includes	Split Rings to Increase.
Insulation Class	B
International Shipping	No
Lead Time	Expected to ship in 1-2.
Length Less Shaft	6 3/16 in
Max. Ambient Temp.	40 Degrees C
Maximum Ambient Tempera.	40? C
Motor Bearings	Sleeve
Motor Design	Permanent Split Capacit.
Motor Diameter	5-5/8"
Motor Mounting Position	All Angle
Motor Service Factor	1
Motor Shell Length	6-3/16"
Motor Thermal Protection	Auto
Mounting	Ring/Stud
Mpn	4M101
Nameplate RPM	1,075
Nominal Efficiency	58.5 %
Number of Speeds	3
Overall Length	10-3/16", 10 3/16 in
Phase	1, Single
Product Type	PSC (Permanent Split Ca.
Resilient Ring Dia.	2 1/4 in
Rotation	Reversible
RPM	1075
Service Factor (SF)	1.00
Shaft Dia.	1/2 in
Shaft Diameter	1/2" Flatted
Shaft Length	4", 4 in
Ship Weight	17 lbs.
SKU	ZO-G3007627
Standards	CSA Certification (2585.
Stud Size	8-32 NC 2A Thread x 1 5.
SubCategory	Motors/Ac Motors
Thermal Protection	Automatic
UPC	190735330067
Voltage Compatibility	115/208-230V AC, 200-23.
Volts	208-230

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	AmazonTP	B001GBRWUS	110.47	1	In Stock	3	DAYTON		110.47 @ 1
	sustainablesupply.com	C1561242	149.96	1	In Stock		Dayton	17.2	149.96 @ 1
	Zoro	G3007627	159.99	1	191		Dayton	11.6	159.99 @ 1
	emotorpro.com	4M101	176.24	1	In Stock		Dayton	17.0	176.24 @ 1
	Raptor Supplies	AD8TEP	184.9325985	1	In Stock		DAYTON		184.9325985 @ 1
	simsupply.com	ZO-G3007627	189.44	1	97		Dayton		189.44 @ 1
