Dayton 4M249

B000LDFYDO

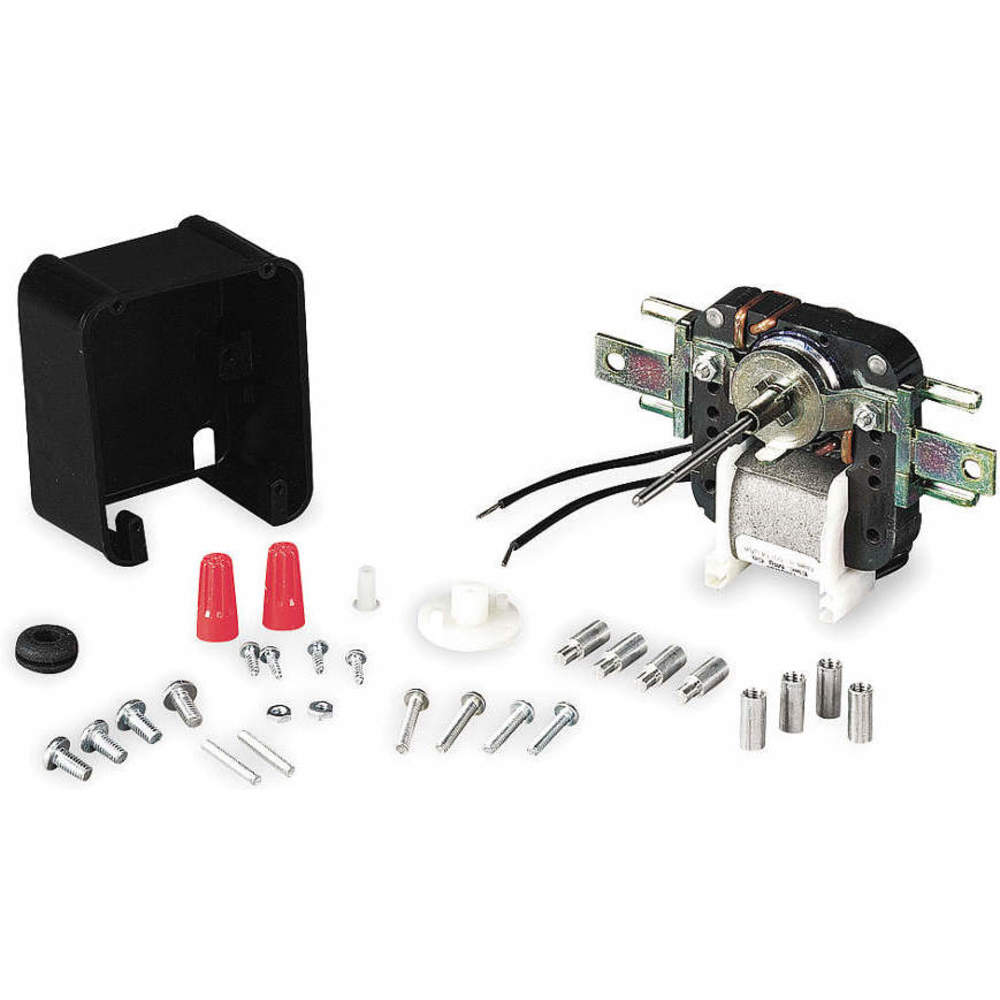

C-Frame Motor, Shaded Pole, 2-1/2 In. L

C-Frame Motor, Shaded Pole, 2-1/2 In. Lzoom

Attributes

Key Value
Amps0.26
BearingsSleeve
Cord Length6"
Duty CycleContinuous
Enclosure TypeOAO (Open Air Over)
FrameC-Frame, Non-Standard
Full Load Amps0.26
HP1/200
Hz60
Includes2" Long Break-Off Shaft.
Ins. ClassB
Insulation ClassB
ItemC-Frame Motor
Length Less Shaft2-5/16"
Max. Ambient Temp.40 Degrees C
Maximum Ambient Tempera.40? C
Motor ApplicationHVAC/R
Motor BearingsSleeve
Motor DesignShaded Pole
Motor Enclosure DesignOpen Air-Over
Motor Mounting PositionAll Angle
Motor Mounting TypeStud
Motor Service Factor1.00
Motor Shaft RotationCWSE
Motor Shell Length2-5/16"
Motor Sub ApplicationDirect Drive Fan/Blower
Motor Thermal ProtectionImpedance
MountingStud
Nameplate RPM3,000
No. of Speeds1
Number of Shafts2
Number of Speeds1
O.C. Mounting4 1/8 in
Phase1
Product TypeShaded Pole
RotationReversible
RPM3000
RPM Range1,801 - 3,000
Service Factor (SF)1.00
Shaft Dia.1/8"
Shaft Diameter1/8"
Shaft Length2-1/2"
Ship Weight2 lbs.
Stack Size1/2"
StandardsUL Recognized (E40077),.
Thermal ProtectionImpedance
Usable @ 200VNo
Usable @ 208VNo
Voltage120
Voltage Compatibility115, 120, 115/208-230, .
Volts115

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomRaptor SuppliesAD8TGP35.0624431In StockDAYTON35.062443 @ 1
grainger.caWWG4M24941.490796321In StockDAYTON1.041.49079632 @ 1
thumbzoomemotorpro.com4M24978.771In StockDayton2.078.77 @ 1
