Dixon Valve & Coupling 61-103

mpn61-103
brandname: DIXON VALVE
manufacturername: DIXON VALVE

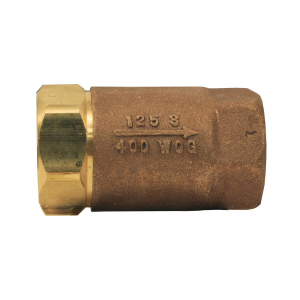

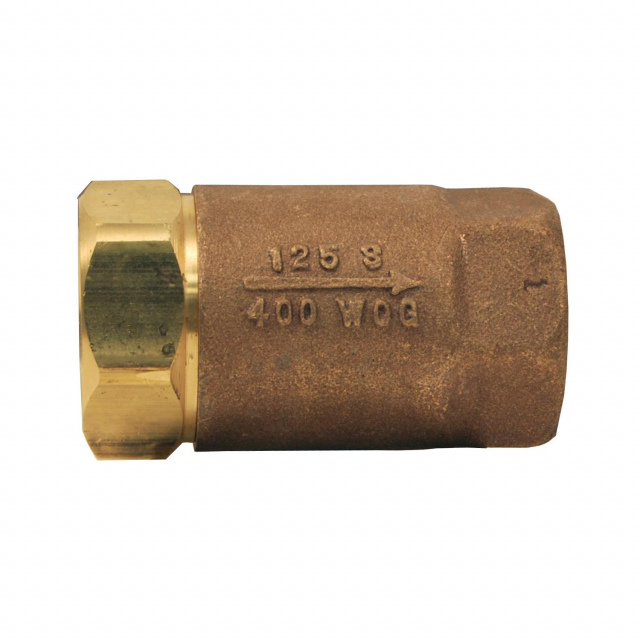

Dixon 61-103 Brass Ball Cone Check Valve, 1/2" NPT Female

Dixon 61-103 Brass Ball Cone Check Valve, 1/2" NPT Female

zoom

Brand: Dixon Valve & Coupling
PartNumber: 61-103
Model: 61-103
Size: 0.5 Inch
PackageQuantity: 1
Binding: Misc.
Manufacturer: Dixon Valve & Coupling
Label: Dixon Valve & Coupling

Attributes

Key	Value
:	N/A
Application	For use with water, oil.
Body Material	Brass
Brand	Dixon Valve & Coupling
Brand Name	DIXON?
Connection	NPT
Connection Type	FNPT x FNPT
Cracking Pressure	0.5 psi
Data	125 PSI (Saturated Stea.
Description:	1/2" Brass Ball Cone Ch.
Dimensions	2-5/16 in L x 1-1/8 in W
Domestic/Import	Domestic
End Style	FNPT Connection
Features	Tight shut-off with liq.
Item	Ball Cone Check Valve
Length	2-5/16"
Length (in)	2.312
Manufacturer	Dixon Valve & Coupling,.
Manufacturer Part Number	61-103
Material	Brass
Material of Construction	Brass
Max Temp (?F)	353
Max. Pressure	400 psi WOG, 125 psi WSP
Media	Gas/Oil/Steam/Water
MFG Part #:	61-103
Min. Temp (?F)	-20
MPN	61-103
Nominal Size	1/2 in
Package Quantity	1/Each
Pipe Size	1/2"
Pressure Rating	400 psi WOG, 125 psi WS.
Product	Check Valves
Product Type	Simple product
Saturated Steam Pressure	125 PSI
Saturated Steam Pressur.	125
Size	1/2", 1/2 in
Softgoods Material	PTFE Seat
Supplier:	Dixon Valve & Coupling .
Temperature Range	-20?F to 353?F (-29?C t.
Temperature range	-20F to 353F (-29C to 1.
Temperature Rating	-20 to 353?F, -20 to 35.
Thread	Female NPT x Female NPT
WARNING!	This product contains a.
Weight	0.370000
Weight Lb	0.3700
Width	1-1/8"
Width (in)	1.125

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	toolfetch.com	DIX-61-103	40.09	1	4		DIXON VALVE		40.09 @ 4
	heavydutydepot.com	61-103	44.9	3	4		Dixon		44.9 @ 4
	Megadepot	61-103	48.25	1	4		Dixon Valve	0.37	48.25 @ 4
	usmegastore.com	61-103	48.52	1	4		Dixon Valve	0.37	48.52 @ 4
	andersonprocess.com	61-103	49.87	1	4	26	Dixon Valve & Coupling	0.37	49.87 @ 4
	MRO Supply	105301	52.48	1	4		Dixon		52.48 @ 4
	Zoro	G6550796	54.05	1	4	10	Dixon Valve & Coupling	2.39	54.05 @ 4
	Purvis	61-103	54.26	1	4		Dixon Valve		54.26 @ 4
	kscdirect.com	DIX 61-103	54.63	1	4		Dixon Valve & Coupling Co		54.63 @ 4
	industrialzone.com	61-103	57.25	4	4		Dixon	0.37	57.25 @ 4
	hanessupply.com	61-103-10639	73.44	1	4		Dixon Valve & Coupling		73.44 @ 4
	motionindustries.com	01628268	80.39	1	4		Dixon Valve & Coupling Company, LLC		80.39 @ 4
	Wilson	61-103	179.29	1	4		Dixon		179.29 @ 4
