- mpnBTM34010D
- brandname: DWYER INSTRUMENTS
- manufacturername: DWYER INSTRUMENTS

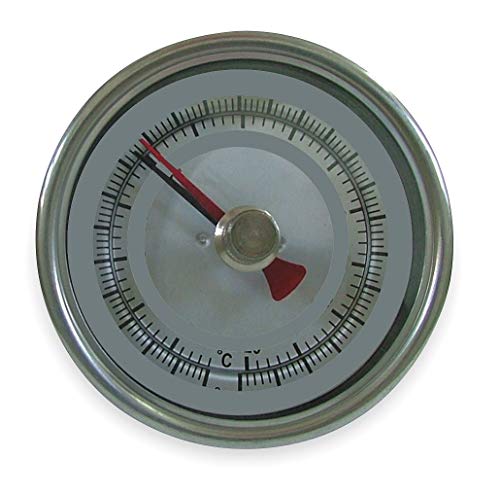

Bimetal Thermom, 3 in Dial, 0 to 200F
- Brand: Dwyer
- PartNumber: BTM34010D
- Model: BTM34010D
- PackageQuantity: 1
- Manufacturer: DWYER INSTRUMENTS
- Label: DWYER INSTRUMENTS
Attributes
| Key | Value |
|---|
| Accuracy | ?2%, +/-2%, 1 % |
| Application | Oven Monitoring, Refrig. |
| Brand | Dwyer Instruments |
| Case | Hermetically Sealed |
| Case Features | Hermetically Sealed |
| Case Material | 300 Stainless Steel, St. |
| Case Size | 3 " |
| Case Style | Center Back Mount |
| Connection | 1/2 NPT |
| Connection Location | Back |
| Connection Size | 1/2 in NPT |
| Construction | 300 Stainless Steel Hou. |
| Corrosion Resistant | No |
| Current Stock | 3 |
| Dial Diameter | 3 in |
| Dial Size | 3", 3 in |
| Family Series | Dwyer Instruments Therm. |
| Functions | Min/Max Indicating |
| Glow-in-the-Dark | No |
| Graduations | 2 Degrees F/2 Degrees C |
| Gross Weight | 0 lbs |
| Housing Material | 300 Stainless Steel, Se. |
| Includes NIST-Traceable. | No |
| International Shipping | No |
| Item | Min/Max Dial Thermometer |
| Item Number | BTM34010D |
| Lead Free | No |
| Lead Time | Expected to ship in 1-2. |
| Lens | Glass |
| Lens Material | Glass |
| Long Reach | No |
| Manufacturer | Dwyer Instruments |
| Manufacturer Part Number | BTM34010D |
| Manufacturer Warranty L. | 1 yr |
| Manufacturers Warranty . | 1 yr |
| Material | Bi-Metal |
| Maximum Temperature ?C | 93.3 Degrees C |
| Maximum Temperature ?F | 200 Degrees F |
| Maximum Value | 200 |
| Minimum Temperature ?C | -17.8 Degrees C |
| Minimum Temperature ?F | 0 Degrees F |
| Minimum Value | 0 |
| Mounting Location | Back |
| Mpn | BTM34010D |
| Net Weight | 0.4625 lbs |
| Process Connection | 1/2" NPT, 1/2 in NPT |
| Product Series | BTM3 |
| Resolution | 2? |
| Scale | Celsius, Fahrenheit |
| Scale Type | Dial |
| Sensing Element | Bimetal |
| Shatterproof | No |
| SKU | ZO-G0545754 |
| Stem Dia. | 1/2 in |
| Stem Diameter | 0.25 in |
| Stem Length | 4 in, 4 " |
| Stem Material | 304 Stainless Steel |
| SubCategory | Test Instruments |
| Temp Range | 0-200 ?F |
| Temp. Range (C) | 10 Degrees to 94 Degre. |
| Temp. Range (F) | 0 Degrees to 200 Degre. |
| Temperature Limits | Ambient: 15 to 300?F (-. |
| Temperature Range | 0 Degrees to 200 Degre. |
| Thermometer Type | Min/Max Reading Dial Th. |
| Thread Gender | Male |
| Thread Size | 1/2 in |
| Thread Type | NPT |
| Units | Dual Scale: deg F, deg C |
| Vibration Resistant | No |
| Weight | 7.4 oz (210 g) |
| Wetted Materials | 304 SS |
| Window Composition | Glass |
| Window Material | Glass |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Newark | 82AK6171 | 81.75 | 1 | In Stock | | DWYER | | 81.75 @ 1 |
 | Zoro | G0545754 | 85.65 | 1 | 1 | | Dwyer Instruments | 0.5 | 85.65 @ 1 |
 | cappusa.com | 4116305 | 92.56 | 1 | In Stock | | Dwyer | | 92.56 @ 1 |
 | Galco | BTM34010D-DWYR | 92.94 | 1 | In Stock | | Dwyer Instruments | 0.4625 | 92.94 @ 1 |
 | sustainablesupply.com | C1759754 | 94.76 | 1 | In Stock | | Dwyer Instruments | 0.5 | 94.76 @ 1 |
 | industrialzone.com | BTM34010D | 95.0 | 3 | In Stock | | Dwyer | 0.5 | 95.0 @ 3 |
| alliedcontrols.com | BTM34010D | 96.25 | 1 | In Stock | | Dwyer | | 96.25 @ 1 |
 | Megadepot | BTM34010D | 97.72 | 1 | In Stock | | Dwyer | 0.4625 | 97.72 @ 1 |
 | usmegastore.com | BTM34010D | 97.72 | 1 | In Stock | | Dwyer | 0.4625 | 97.72 @ 1 |
 | simsupply.com | ZO-G0545754 | 102.58 | 1 | 3 | | Dwyer Instruments | | 102.58 @ 1 |
 | blackhawksupply.com | BTM34010D | 104.37 | 1 | In Stock | | Dwyer | | 104.37 @ 1 |
| grainger.ca | WWG1UYU8 | 158.34183696 | 1 | In Stock | | DWYER INSTRUMENTS | 0.5 | 158.34183696 @ 1 |
 | Raptor Supplies | AB3RDP | 184.58622 | 1 | In Stock | | DWYER INSTRUMENTS | | 184.58622 @ 1 |
