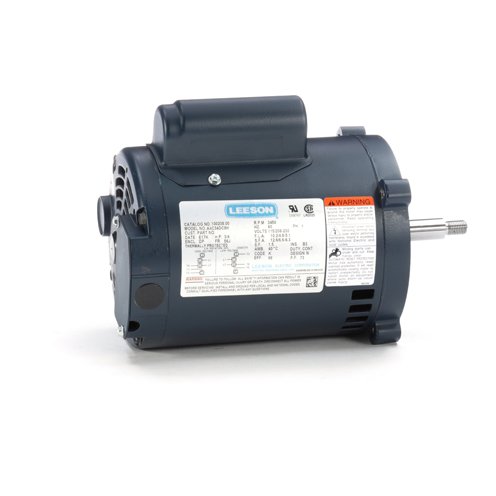

Leeson Electric 100208.00 - Jet Pump Motor - 1 ph, 3/4 hp, 3600 rpm, 115/208-230 V, 56J Frame, Drip Proof Enclosure, 60 Hz

mpn100208.00
brandname: LEESON ELECTRIC
manufacturername: LEESON ELECTRIC

Leeson Electric 100208.00 - Jet Pump Motor - 1 ph, 3/4 hp, 3600 rpm, 115/208-230 V, 56J Frame, Drip Proof Enclosure, 60 Hz

Leeson Electric 100208.00 - Jet Pump Motor - 1 ph, 3/4 hp, 3600 rpm, 115/208-230 V, 56J Frame, Drip Proof Enclosure, 60 Hz

zoom

Binding: Misc.
Manufacturer: Leeson Electric
Label: Leeson Electric

Attributes

Key	Value
Alternate Mfr Part Numb.	A4C34DC8H
Amperage Rating	10.2/4.8 to 5.1 A
Application Type	Jet Pump (JM/JP) Motors
Approvals	CSA, UL
Bearing Type	Ball, 10.5
Category	Electric Motor
Class/Group	A4C34DC8
Composition	Steel
Current Rating	10.2 ; 4.8 to 5.1 A
Description:	3/4HP..3450RPM.56.DP.11.
Dimensions	5.62 in Dia x 10.5 in L.
Duty Cycle	Continuous
Efficiency	66 %
Enclosure	ODP, Drip Proof
Enclosure Type	Drip Proof, DP
Family Series	Leeson Motors, Pump Dut.
Frame	56J
Frame Remarks	FOOTLESS
Frequency	60 Hz
Frequency Rating	60 Hz
Gross Weight	0 lbs
Horsepower	0.75 HP, 3/4 hp
Horsepower Rating	0.75 HP
HP	0.75
Insulation Class	Class B
Insulation Type	Class B
Item Condition	FACTORY NEW
Item Number	100208.00
Manufacturer	LEESON ELECTRIC CORPORA.
Manufacturer Part Number	100208.00
Material	Rolled Steel
MFG Part #:	100208.00
Model Number	A4C34DC8
mounting	C-face (NO base)
Mounting Type	Round/C-Face/Footless/F.
NEMA Frame	S56J
Net Weight	21 lbs
Nominal Voltage	208 VAC, 240 VAC
Number of Poles	2
Number of Speeds	1
Overall Length	10.5 "
Phase	1, 1 Phase, 1 ph
Product Series	Pump Duty
Rotation	Fixed CW
RPM	3450 RPM, 3600, 3,600 R.
Service Factor	1.5
Shaft Diameter	UL;CSA
Shaft Size	0.63 in Dia x 2.44 in L
Special Features	Service Factor - 1.5, C.
Standards	UL Recognized
Supplier:	LEESON ELECTRIC CORPORA.
Supply Voltage	115/208-230 VAC
Type	Capacitor Start Inducti.
UPC Code	691720004708
UPC:	691720004708
Volts	115/208/230

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	AmazonTP	B0773VD4ZK	219.51	1	In Stock	3	Leeson Electric		219.51 @ 1
	Dealers Electric	100208.00	268.89	1	In Stock		Leeson	20.0	268.89 @ 1
	Walker Industrial	100208-00	359.47	1	In Stock	17	Leeson		359.47 @ 1
	Raptor Supplies	AJ2PHG	377.865423	1	In Stock		LEESON		377.865423 @ 1
	us.rs-online.com	72239467	430.71	1	In Stock		Leeson		430.71 @ 1
	Galco	100208.00-LEES	435.54	1	In Stock		Leeson	21.0	435.54 @ 1
	kscdirect.com	LEE 100208.00	511.23	1	In Stock		LEESON ELECTRIC CORPORATION		511.23 @ 1
