Molex 171814-0004

mpn1718140004
brandname: MOLEX
manufacturername: MOLEX

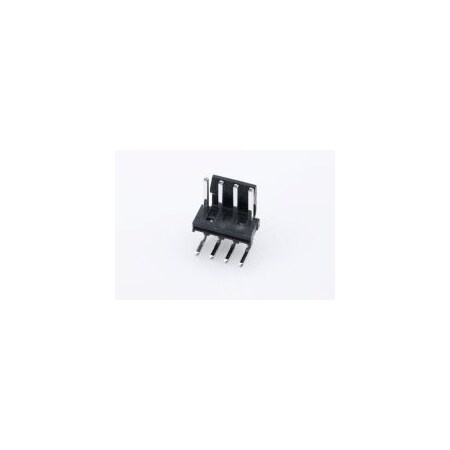

MOLEX 171814-0004

MOLEX 171814-0004

zoom

Brand: Molex
PartNumber: 171814-0004
Model: 171814-0004
PackageQuantity: 1
Manufacturer: MOLEX
Label: MOLEX

Attributes

Key	Value
Alternate Mfr Part Numb.	171814-0004
Angle	Right Angle
Applications	Automotive, General Pur.
Base Product Number	171814
Category	Connectors, Interconnec.
Color	Black
Connector Type	Header
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Finish Thicknes.	60.0?in (1.52?m)
Contact Finish Thicknes.	60.0?in (1.52?m)
Contact Length - Mating	0.446" (11.33mm)
Contact Length - Post	0.100" (2.54mm)
Contact Material	Brass
Contact Plating	Tin
Contact Shape	Square
Contact Type	Male Pin
Current Rating	7 A
Current Rating (Amps)	-
Description	CONN HEADER R/A 4POS 3..
Detailed Description	Connector Header Throug.
Digi-Key Part Number	WM10167-ND
Family Name	KK 396
Fastening Type	Friction Lock
Features	-
Ingress Protection	-
Insulation Color	Black
Insulation Height	0.394" (10.00mm)
Insulation Material	Polyamide (PA), Nylon
Manufacturer	Molex
Manufacturer Product Nu.	1718140004
Manufacturer Standard L.	32 Weeks
Mated Stacking Heights	-
Material Flammability R.	UL94 V-2
Mfr	Molex
Mounting Type	Through Hole, Right Ang.
Number of Circuits	4
Number of Contacts	4
Number of Positions	4
Number of Positions Loa.	All
Number of Rows	1
Operating Temperature	-
Orientation	Right Angle
Overall Contact Length	-
Package	Bulk
Package Quantity	1
Pitch	3.96 mm (0.156") In./mm
Pitch - Mating	0.156" (3.96mm)
Plating Material	Tin
Primary Type	Board Mount
Product Status	Active
Row Spacing - Mating	-
Series	171814 Series, KK396, 1.
Shrouding	Shrouded - 1 Wall
Special Features	Low-Halogen
Style	Board to Board or Cable
Termination	Solder, Through Hole
Type	Right Angle Header
Voltage Rating	-

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Heilind Electronics	171814-0004	0.25844	600	960		MOLEX		0.25844 @ 600
	Arrow	171814-0004	0.29	1	155		Molex		0.29 @ 100
	Onlinecomponents.com	171814-0004	0.329	1	4601		MOLEX / WALDOM		0.329 @ 100
	jensentools.com	10152700	0.34	1	100		Molex		0.34 @ 100
	TME	MX-171814-0004	0.411	257	100		MOLEX		0.411 @ 257
	Newark	06X9786	0.464	6300	100		MOLEX		0.464 @ 6300
	us.rs-online.com	70314266	0.4869	1	100		Molex Incorporated		0.4869 @ 100
	Digi-Key	4423871	0.4921	1	2207		Molex		0.4921 @ 100
	RS Delivers	792-2871	0.7548	1	100		Molex		0.7548 @ 100
	Zoro	G2749683	4788.0	1	100		Molex		4788.0 @ 100
