Schurter C20F.0002-SCHURTER

mpnC20F.0002
brandname: Schurter
manufacturername: Schurter

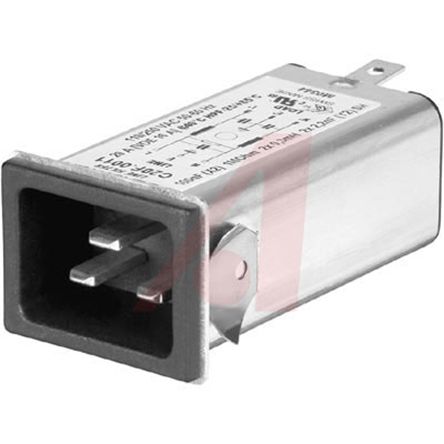

SCHURTER C20F.0002

SCHURTER C20F.0002

zoom

Brand: Schurter
PartNumber: C20F.0002-SCHURTER
Model: C20F.0002-SCHURTER
PackageQuantity: 1
Binding: Electronics
Manufacturer: SCHURTER
Label: SCHURTER

Attributes

Key	Value
Agency Approvals	cULus ; UL ; CSA
Body Material	Thermoplastic
Brand	Schurter
Color	Black
Contact Type	Pin
Current Rating	16 (IEC) A, 20 (UL / CS.
Cx Capacitance	100 nF
Depth	78.8mm
Dielectric Strength	>1.7 kVDC (L-N), >2.7 k.
Filter Type	AC Line
Gender	Male
Height	30mm
Housing Material	Thermoplastic
IEC Connector Type	C20
Inductance	2?0.3 mH
Insulation Resistance	10 MegaOhms
IP Rating	IP40
Leakage Current	<5 ?A
Mounting Type	Screw, Panel Mount
Number of Contacts	3
Number of Fuses	Ohne
Number of Poles	3
Operating Frequency	50 (IEC) Hz, 60 (UL / C.
Operating Temperature	-25 to +85 ?C
Panel Cut Out	26.8?42 mm
Panel Thickness	0.315" (8mm)
Primary Type	Module
Product Header	Power Entry Module with.
Resistance	1 Megaohms
Series	C20F Series
Special Features	Screw-On
Standards	UL,CSA, IEC,EN Standards
Switch Type	None
Termination	Solder
Termination Method	Solder
Type	Filter
Version	Medical
Voltage Rating	250 V ac, 250 V
Width	53mm

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Onlinecomponents.com	C20F.0002	18.88	1	36		SCHURTER		18.88 @ 20
	Newark	88K1890	21.34	1	90		SCHURTER		21.34 @ 20
	RS Delivers	870-1792	31.7916	20	20		Schurter		31.7916 @ 20
	Digi-Key	486-4072-ND	32.84	1	20		Schurter Inc.		32.84 @ 20
	us.rs-online.com	70080797	34.68	40	20		Schurter		34.68 @ 40
	Radwell	C20F0002	37.34	1	20		SCHURTER		37.34 @ 20
