OAC-5H

mpn2-1393028-9
brandname: TE Connectivity
manufacturername: TE Connectivity

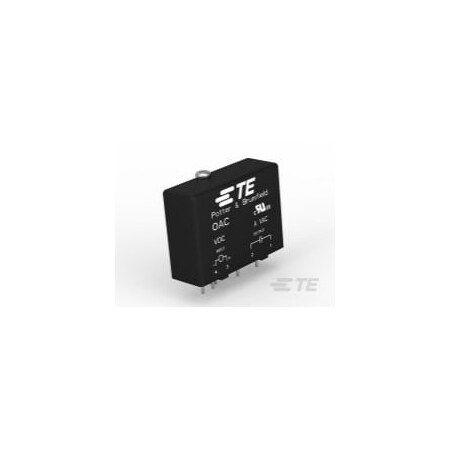

I/O Modules 5VDC input 5A 24-280AC out Blk

I/O Modules 5VDC input 5A 24-280AC out Blk

zoom

PartNumber: OAC-5H
Model: OAC-5H
PackageQuantity: 1
Manufacturer: TE Connectivity / P\u0026B
Label: TE Connectivity / P\u0026B

Attributes

Key	Value
Alternate Mfr Part Numb.	2-1393028-9
Base Product Number	OAC
Category	Relays
Color	Black
Connection to Host	Circuit Board
Country of Origin (subj.	Mexico
Current - Input	20 mA
Current - Output	5A
Depth	0.157 in
Description	AC OUTPUT MODULE 5A
Detailed Description	AC Output Module Output.
Digi-Key Part Number	PB701-ND
Dimensions	43.18 x 31.8 x 15.2 mm
Features	Hold Down Screw
For Use With	2IO Series Mounting Boa.
Input Current	20 mA
Input Resistance	220 Ohms (Typ.) Ohms
Insulation Resistance	100 MegaOhms
Isolation Voltage	4000 VAC
Leakage Current	1 mA (RMS) (Max.) @ 120.
Length	1.7 in
Manufacturer	TE Connectivity Potter .
Manufacturer Product Nu.	OAC-5H
Manufacturer Standard L.	19 Weeks
Maximum Operating Tempe.	+80 ?C
Mfr	TE Connectivity Potter .
Minimum Operating Tempe.	-30 ?C
Module Type	Control
Mounting Type	PCB Mount
Number of Channels	1
Number of IO Ports	1
Operating Temperature	?30 to +80 ?C
Operating Voltage	3 V
Output Type	Digital
Package	Bulk
Primary Type	Module
Product Status	Active
Range Output	24 to 280 VAC
Series	OAC Series, OAC
Special Features	Optical Isolation
Standards	UL Recognized, CSA Cert.
Style	Standard
Supply Voltage	8 VDC
Temperature Operating R.	-30 to +80 ?C
Turn Off Time	8.3 ms (Max.), 8.33ms
Turn On Time	8.3 ms, 8.33ms
Type	AC Output Module, Output
Voltage - Input	5VDC
Voltage - Output	24 ~ 280VAC
Width	0 in

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Arrow	OAC-5H	5.475	1	60		TE Connectivity		5.475 @ 10
	Waldom	TE CONNECTIVITY AMP BRAND 2-1393028-9	19.07	3	256		TE CONNECTIVITY/AMP BRAND		19.07 @ 10
	Onlinecomponents.com	2-1393028-9	20.0	1	88		TE Connectivity / AMP Brand		20.0 @ 10
	Hotenda	H3536477	22.705	1	847		TE Connectivity Potter & Brumfield Relays		22.705 @ 10
	RS Delivers	783-0252	27.6	1	10		TE Connectivity		27.6 @ 10
	Digi-Key	813768	30.147	1	20		TE Connectivity Potter & Brumfield Relays		30.147 @ 10
	Zoro	G300979645	30.84	200	10		Te Connectivity		30.84 @ 200
	us.rs-online.com	70199325	31.74	1	199		TE Connectivity		31.74 @ 10
	Newark	41AJ5193	34.91	1	136		AMP - TE CONNECTIVITY		34.91 @ 10
	AmazonTP	B00DWIJY4A	34.95	1	10	3	TE Connectivity / P\u0026B		34.95 @ 10
