- mpnS3P1A
- brandname: US Motors
- manufacturername: US Motors

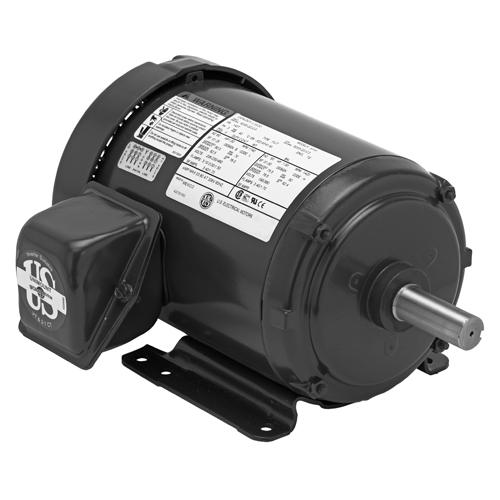

U.S. Motors US Motors Unimount TEFC, 3 HP, 3-Phase, 3540 RPM Motor, S3P1A
- Brand: U.S. Motors
- PartNumber: S3P1A
- PackageQuantity: 1
- Manufacturer: U.S. Motors
- Label: U.S. Motors
Attributes
| Key | Value |
|---|
| Amps | 8.4-7.7/3.9 |
| Bearings | Ball |
| Composition | Rolled Steel |
| Construction | Rolled Steel |
| Drive End Flange Type | Standard |
| Efficiency | 86.5% |
| Enclosure | TEFC, Totally Enclosed . |
| Enclosure Type | TEFC (Totally Enclosed . |
| Estimated Weight | 55.00 |
| Family Series | US Motors Motors |
| FL Amps | 8.4-7.7/3.9 |
| FL Efficiency | 87.5 |
| Frame | 182T |
| Frequency | 60 Hz |
| Gross Weight | 50 lbs |
| Hertz | 60 |
| Horsepower | 3 hp |
| HP | 3 |
| Hz | 60 |
| Insulation Class | F |
| Item | Motor,3PH,3HP,3600,208-. |
| Item Number | S3P1A |
| Kilowatts | 2.2 kW |
| Manufacturer | US Motors (Nidec), US M. |
| Manufacturer Model # | DA51 |
| Manufacturer Part Number | S3P1A |
| Maximum Ambient Tempera. | 40? C |
| Model Number | DA51 |
| Mounting | Foot Mount, Base |
| Mounting Type | Foot Mount |
| NEMA Frame | 182T |
| Net Weight | 0 lbs |
| Nominal Voltage | 208 VAC, 240 VAC, 480 V. |
| Number of Poles | 2 |
| Number of Speeds | 1 |
| Part Number | S3P1A |
| Phase | 3 |
| Product Type | General Purpose, Three . |
| Rotation | Reversible |
| RPM | 3,540 RPM, 3540 |
| Service Factor | 1.15 |
| Ship Weight | 50 lbs. |
| Speed (RPM) | 3540 |
| Voltage | 208V, 230V, 460V |
| Voltage (AC) | 208-230 VAC, 460 VAC |
| Volts | 208, 230, 460 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G0405192 | 412.29 | 1 | In Stock | | U.S. Motors | 50.0 | 412.29 @ 1 |
 | Global Industrial | WBB467178 | 447.95 | 1 | In Stock | 17 | US Motors | | 447.95 @ 1 |
 | emotorpro.com | S3P1A | 476.81 | 1 | In Stock | | U.S. Motors | 50.0 | 476.81 @ 1 |
 | motorsandcontrol.com | S3P1A | 502.61 | 1 | In Stock | | US Motors (Nidec) | 55.0 | 502.61 @ 1 |
 | Galco | S3P1A-USM | 502.62 | 1 | In Stock | | US Motors | 50.0 | 502.62 @ 1 |
 | National Supply Network | B467178 | 502.74 | 1 | In Stock | | US MOTORS | | 502.74 @ 1 |
| motionindustries.com | 04426981 | 713.4 | 1 | In Stock | | US Motors (Nidec) | | 713.4 @ 1 |
