- mpn6363SL005
- brandname: ALPHA WIRE
- manufacturername: ALPHA WIRE

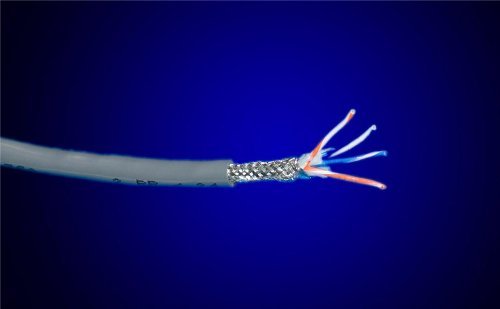

Alpha Wire Part Number 6363 SL005
- Brand: Alpha Wire
- PartNumber: 6363 SL005
- PackageQuantity: 1
- Manufacturer: Alpha Wire
- Label: Alpha Wire
Attributes
| Key | Value |
|---|
| Application | For EIA RS-232C interfa. |
| Cable Type | Twisted Pair, Multi-Pair |
| Category | Cables, Wires |
| Conductor Insulation | Poly-Vinyl Chloride (PV. |
| Conductor Material | Tinned Copper (TC), Cop. |
| Conductor Size | 24 AWG |
| Conductor Strand | 7/32 |
| Configuration | Conductors |
| Features | Drain Wire |
| Insulation Material | Polyvinyl Chloride (PVC) |
| Insulation Thickness | 0.010 in. |
| Jacket (Insulation) Dia. | 0.246" (6.25mm) |
| Jacket (Insulation) Mat. | Poly-Vinyl Chloride (PV. |
| Jacket (Insulation) Thi. | 0.0320" (0.813mm) |
| Jacket Color | Gray, Slate |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Jacket Thickness | 0.032 in. |
| Length | 100.0' (30.5m), 100 ft |
| Mfr | Alpha Wire |
| Nominal Impedance | 50 Ohms |
| Number of Conductors | 3, 6 (3 Pair Twisted) |
| Number of Pairs | 3 |
| Operating Temperature | -20 to +80 ?C, -20?C ~ . |
| Outer Diameter | 0.245 in. |
| Package | Spool |
| Packaging | Coil |
| Part Status | Active |
| Product Header | Multipair Foil/Braid Sh. |
| Ratings | UL Style 2464 |
| Series | 6363 Series, - |
| Shield | Aluminum/Polyester |
| Shield Coverage | 100%, 65% |
| Shield Material | Aluminum; Copper, Tinne. |
| Shield Type | Foil, Braid |
| Shielding | Braid, Foil |
| Standards | UL Type CM ; UL AWM Sty. |
| Stranding | 7x32 |
| Temperature, Rating | -20 to 80 C |
| Usage | - |
| Voltage | 300 V |
| Voltage Rating | 300 V |
| Wire Gauge | 24 AWG |
| Wire Size | 24 AWG |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| RS Delivers | 187-2063 | 2.8224 | 1 | 42 | | Alpha Wire | | 2.8224 @ 1 |
 | AI Consolidated | 6363-SL005-ALPHA-WIRE | 124.46 | 1 | 42 | | Alpha Wire | 4.6 | 124.46 @ 1 |
 | Digi-Key | 6363SL005-ND | 205.31 | 1 | 42 | | Alpha Wire | | 205.31 @ 1 |
 | Radwell | 6363SL005 | 233.4 | 1 | 42 | | ALPHA WIRE | | 233.4 @ 1 |
| us.rs-online.com | 70139477 | 312.37 | 1 | 2 | | Alpha Wire | | 312.37 @ 1 |
 | Newark | 28B8315 | 338.21 | 1 | In Stock | | ALPHA WIRE | | 338.21 @ 1 |
