Burndy K2C23

B00CBL663G

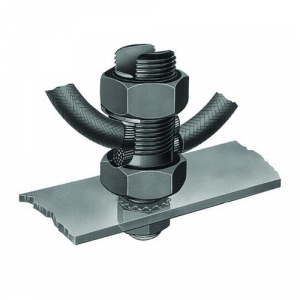

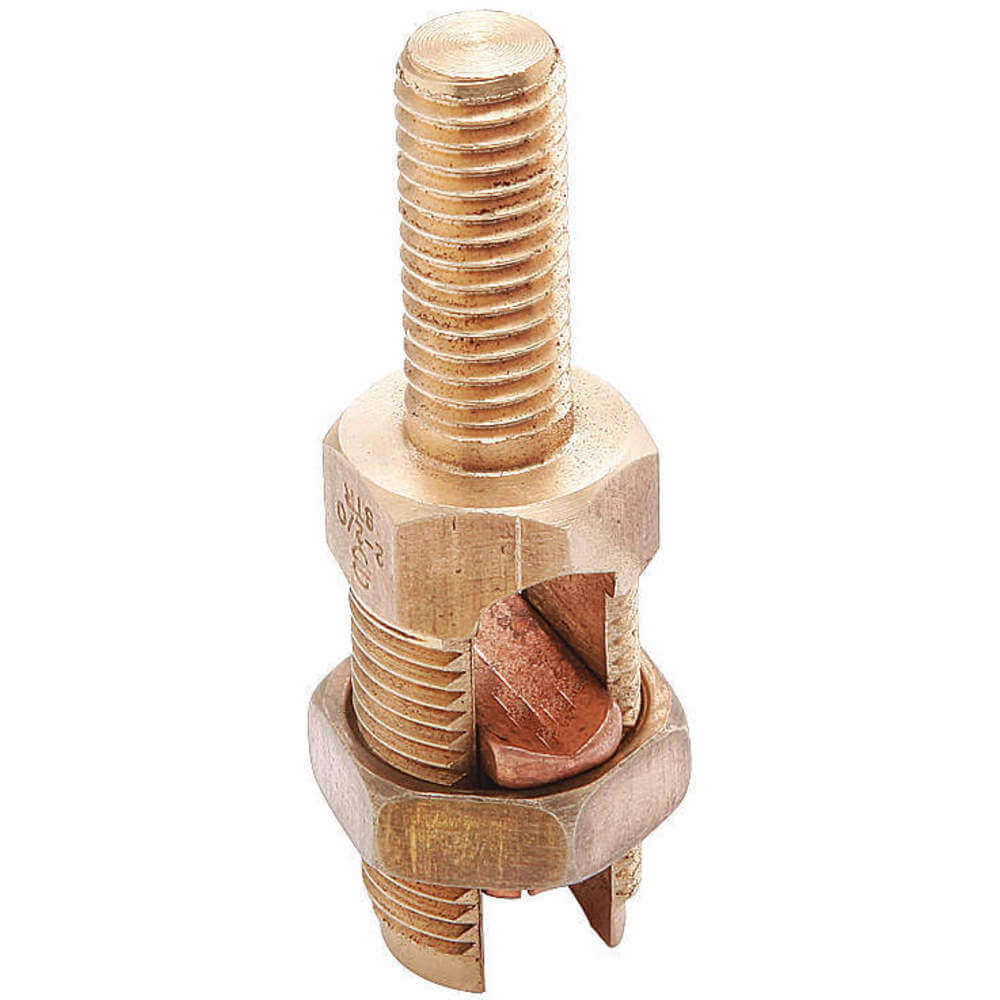

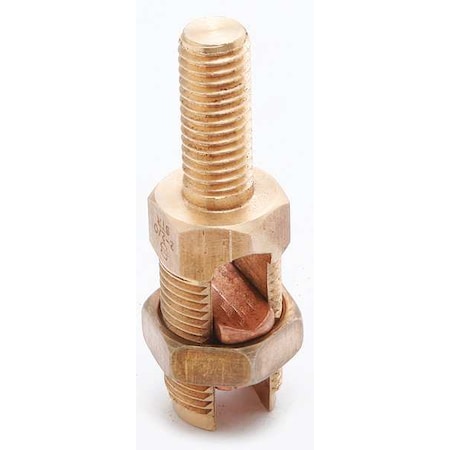

Burndy K2C23 Servit Post Mechanical Grounding Connector, 13/16" Nut Size, 15/32" Stud Length, for 1 or 2 Conductors

Burndy K2C23 Servit Post Mechanical Grounding Connector, 13/16" Nut Size, 15/32" Stud Length, for 1 or 2 Conductorszoom

Attributes

Key Value
ApplicationFor Direct Burial Appli.
ApprovalsUL
Certification - CSA App.No
Certification - cULusNo
Certification - ETLNo
Certification - UL List.Yes
Certification - UL Reco.No
Conductor - Copper Soli.10 AWG;9 AWG;8 AWG;7 AW.
Conductor - Copper Soli.1 AWG - 10 AWG
Conductor - Copper Str .8 AWG;7 AWG;6 AWG;5 AWG.
Conductor - Copper Str .2 AWG - 8 AWG
Conductor Size8 to 2 AWG STR
Conductor Size Range10-1 AWG
Conductor TypeRun
Connector MaterialLeaded Bronze Alloy
Connector TypeMechanical
Country of OriginUS - United States
Dimension - B Length fr.15/32 in
Dimension - B Length in.0.46 in
Dimension - Body Width .0.62 in
Dimension - Bolt Size f.44993, 3/8
Dimension - D inch0.62 in
Dimension - Height frac.1
Dimension - Height inch1.34 in
Dimension - L Length Ov.56 mm
Dimension - Length Over.2.19 in
Dimension - Nut Width i.0.81 in
Dimension - P inch0.32 in
Dimension - Threads per.16
Dimension - Width inch34 mm
Direct BurialYes
ECCNEAR99
Family SeriesBurndy Grounding
For Use WithBusbar, Steel Structure.
Gross Weight0.135 lbs
Grounding Wire Size10 to 1 AWG SOL, 8 to 2.
Industry Standard(s)UL467
Installation Torque80 in-lb
ItemGrounding Split Bolt Co.
Item - Grounding Connec.Grounding Split Bolt Co.
Item NumberK2C23
Length - Grounding Stud15/32 in
ManufacturerBurndy
Manufacturer Part NumberK2C23
MaterialBronze Alloy, Leaded, B.
Material - Grounding Co.Leaded Bronze Alloy
Material of ConstructionLeaded Bronze Alloy
Max Conductor Size1 AWG
Min Conductor Size10 AWG
Minimum Pack Quantity1
Net Weight0.125 lbs
Number of Conductors2
Number of Wires - Groun.1
Overall Length2 3/16 in
Overall Width5/8 in
Physical Attribute - Nu.2
PlatedN
Plating TypeUnplated
RoHSYes
SeriesK2C, KC
StandardsUL Listed, UL Listed-Di.
Standards - Industry St.UL467
Standards - RoHS Compli.EX
Stud Installation Torqu.280 LBS/in
Stud Length15/32"
Stud Size3/8-16
Sub BrandSERVIT POST
Thread Size3/8"-16
Thread Size - Grounding.3/8 in 16
Trade NameSERVIT POST?
TypeKC and K2C Series
Type - Grounding Connec.Mechanical
UL ListedYes
UNSPSC39121408
UPC781810257203
UPC 12 Digit7818102572033
UPC Code781810257203
Wire Size - Grounding10 to 1 AWG Solid, 8 to.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
steinerelectric.com30613325.051In StockBURNDY25.05 @ 1
thumbzoomKelly HayesK2C2336.291285Burndy36.29 @ 1
thumbzoomZoroG469551241.65166Burndy0.1541.65 @ 1
Graybar8804755645.763211Burndy45.7632 @ 1
thumbzoomusmegastore.comK2C2351.031In StockBurndy51.03 @ 1
thumbzoomMegadepotK2C2355.271In StockBurndy55.27 @ 1
thumbzoomgordonelectricsupply.comK2C2365.821In StockBURNDY65.82 @ 1
thumbzoommayerelectric.comBURK2C2368.621In StockBURNDY68.62 @ 1
thumbzoomGalcoK2C23-BURN79.021In StockBurndy0.13579.02 @ 1
us.rs-online.com7148641486.81133BURNDY86.81 @ 1
thumbzoomRaptor SuppliesAB6QZT112.46127751In StockBURNDY112.4612775 @ 1
kirbyrisk.com539335117.561In StockBurndy117.56 @ 1
