- mpnC20064
- brandname: Cle-Line
- manufacturername: Cle-Line

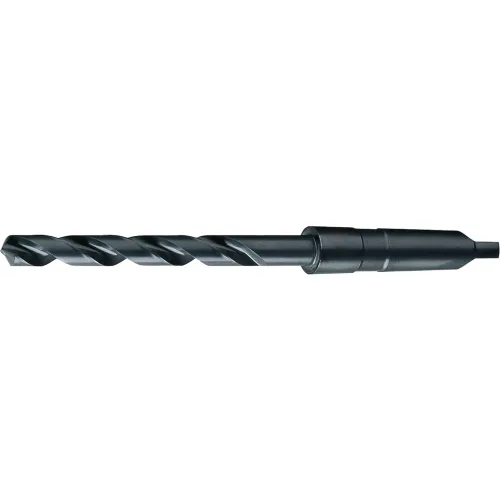

Cle-Line C20064 General Purpose Taper Shank Drill, High Speed Steel, Steam Oxide Finish, No.1 Morse Taper Shank, 118-Degree Radial Point, 23/64" Drill Diameter
- Brand: Cle-line
- PartNumber: C20064
- Model: C20064
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Greenfield Industries (TEG)
- Label: Greenfield Industries (TEG)
Attributes
| Key | Value |
|---|
| Application | General Purpose Drilling |
| Catalog Page | N/A |
| Coolant Fed | Non-Coolant Through |
| Country of Origin | USA |
| Country of Origin (subj. | United States |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.3594 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 0.3594" |
| Diameter (Fraction) | 23/64" |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Finish | Black Oxide |
| Drill Bit Point Angle | 118 ?, 118 Degrees |
| Drill Bit Point Type | Conventional Point |
| Drill Bit Size | 23/64 in |
| Drill Construction | General Purpose |
| Drill Diameter Tolerance | +0.0000 in /-0.0010 in |
| Drill Size System | Fractional |
| Drill Style | Taper Shank Drill |
| Finish - Machining | Black Oxide |
| Flute Length | 3.5000", 3 1/2 in, 3-1/. |
| Flute Length (Metric) | 88.90mm |
| Flute Type | Spiral |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| Helix Angle | 21 Degrees to 34 Degre. |
| Item | Taper Shank Drill Bit |
| Item? | 50AZ11 |
| Material | HSS |
| Material - Machining | High Speed Steel |
| Maximum Drilling Depth | 3 1/2 in, 3-1/2 in |
| Measurement System | Fractional Inch |
| Mfr. Model? | C20064 |
| Number of Flutes | 2 |
| Overall Length | 6-3/4 in, 6 3/4 in, 6.7. |
| Overall Length (Metric) | 171.45mm |
| Point Angle | 118? |
| Point Style | Radial |
| Primary Material Applic. | Cast Iron, Steel, Cast . |
| Primary Material Applic. | K, P, K; P |
| Series | 1894 |
| Shank Configuration | #1 Morse Taper |
| Shank Length | 3.2500" |
| Shank Length (Metric) | 82.55mm |
| Shank Type - Machining | Taper |
| Spiral Direction | Right Hand |
| Standards | ASME B94.11M |
| Surface Condition | Steam Oxide |
| Taper Shank Size | MT1 |
| Tool Size | 23/64" |
| UNSPSC | 27112801 |
