- mpnC20730
- brandname: Cle-Line
- manufacturername: Cle-Line

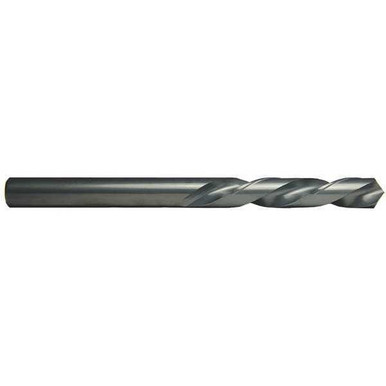

Cle-Line C20730 Silver and Deming Reduced Shank Drill, High Speed Steel, Steam Oxide Finish, Reduced Shank, 118-Degree Radial Point, 1 1/32" Drill Diameter
- Brand: Cle-Line
- PartNumber: C20730
- Model: C20730
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Greenfield Industries (TEG)
- Label: Greenfield Industries (TEG)
Attributes
| Key | Value |
|---|
| Applicable Materials | Iron Based Ferrous Meta. |
| Application | For Alloy And Carbon St. |
| Brand | Cle-Line |
| Color | Black Oxide |
| Coolant Fed | Non-Coolant Through |
| Current Stock | 3 |
| Cutting Depth | 3-1/8 in |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Decimal Equivalent | 1.0039 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 1.0312" |
| Diameter (Fraction) | 1-1/32" |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Finish | Black Oxide |
| Drill Bit Point Angle | 118 Degrees |
| Drill Bit Size | 1 1/32 in |
| Drill Construction | General Purpose |
| Drill Diameter Tolerance | +0.0000 in /-0.0015 in |
| Drill Size - Decimal In. | 1.0312 in |
| Drill Size - Fraction | 1-1/32 in |
| Drill Size System | Fractional |
| Drill Style | Silver & Deming Drill |
| Finish | Black Oxide |
| Finish - Machining | Black Oxide |
| Flute Length | 3.1250", 79.38 mm, 3-1/. |
| Flute Length (Metric) | 79.38mm |
| Flute Type | Spiral |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| International Shipping | No |
| Item | Reduced Shank Drill Bit |
| Lead Time | Expected to ship in 1-2. |
| Material | HSS, High Speed Steel |
| Material - Machining | High Speed Steel |
| Maximum Drilling Depth | 4 1/8 in |
| Mpn | C20730 |
| Number of Flutes | 2 |
| Overall Length | 6.0000", 6 in |
| Overall Length (Metric) | 152.40mm |
| Point Angle | 118 deg, 118? |
| Point Style | Radial |
| Point Type | Radial |
| Primary Material Applic. | Cast Iron, Steel |
| Primary Material Applic. | K, P |
| Series | 1813 |
| Shank Configuration | Reduced |
| Shank Dia. | 1/2 in |
| Shank Length | 2 1/4 in, 2.2500" |
| Shank Length (Metric) | 57.15mm |
| Shank Neck Diameter | 0.9872" |
| Shank Neck Length | 0.5000" |
| Shank Size | 0.5000", 1/2 in |
| Shank Size (Metric) | 12.70mm |
| Shank Type | Reduced |
| Silver & Deming Drill | No |
| SKU | C20730, ZO-G4958567 |
| Style | 1813 |
| SubCategory | Machining |
| Surface Condition | Steam Oxide |
| Tool Size | 1-1/32" |
| Type | General Purpose |
| UPC | 697334207306, 6.97E+11 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Megadepot | C20730 | 37.2 | 1 | In Stock | | Cle-Line | | 37.2 @ 1 |
 | heavydutydepot.com | C20730 | 37.2 | 3 | In Stock | | Cle-Line | | 37.2 @ 3 |
 | Global Industrial | WBB2543767 | 37.95 | 1 | In Stock | | Cle-Line | | 37.95 @ 1 |
 | usmegastore.com | C20730 | 38.72 | 1 | In Stock | | Cle-Line | | 38.72 @ 1 |
 | Zoro | G4958567 | 40.99 | 1 | 1 | | Cle-Line | 0.7 | 40.99 @ 1 |
 | MRO Supply | 6123984 | 44.07 | 2 | In Stock | | Cle-Line | | 44.07 @ 2 |
 | simsupply.com | ZO-G4958567 | 55.14 | 1 | 3 | | Cle-Line | | 55.14 @ 1 |
 | imsbolt.com | C20730 | 72.63 | 1 | In Stock | | CLE-LINE | | 72.63 @ 1 |
