- mpnC21189
- brandname: Cle-Line
- manufacturername: Cle-Line

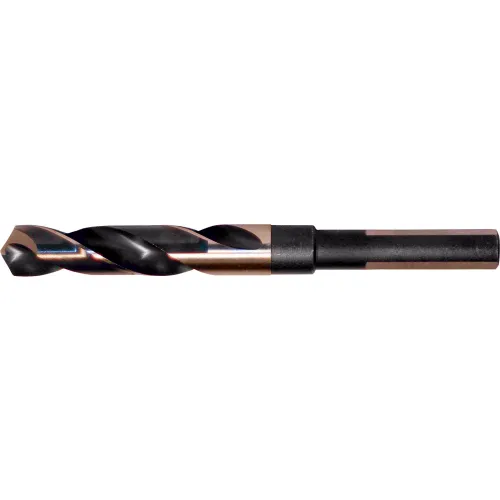

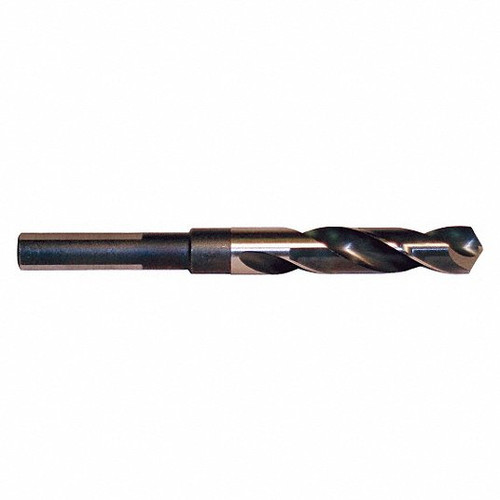

Cle-Line C21189 Silver and Deming Reduced Shank Drill, High Speed Steel, Steam Oxide Finish, Reduced Flatted Shank, 118-Degree Split Point, 25.00 mm Drill Diameter
- Brand: Cle-line
- PartNumber: C21189
- Model: C21189
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Greenfield Industries (TEG)
- Label: Greenfield Industries (TEG)
Attributes
| Key | Value |
|---|
| Applicable Materials | Cast Iron and Steel |
| Application | For Alloy And Carbon St. |
| Catalog Page | N/A |
| Coolant Fed | Non-Coolant Through |
| Country of Origin | USA |
| Country of Origin (subj. | United States |
| Cutting Depth | 79.38 mm |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Decimal Equivalent | 0.9843 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 0.9843" |
| Diameter (Metric) | 25.00mm |
| Drill Bit Dimension Type | Metric |
| Drill Bit Finish | Black/Gold |
| Drill Bit Point Angle | 118 ?, 118 Degrees |
| Drill Bit Point Type | Split Point |
| Drill Bit Size | 25.00 mm |
| Drill Construction | General Purpose |
| Drill Diameter Tolerance | +0.0000 in /-0.0012 in |
| Drill Size - Decimal In. | 0.9843 in |
| Drill Size - Metric | 25 mm |
| Drill Size System | Metric |
| Drill Style | Silver & Deming Drill |
| Finish | Black/Steam Oxide |
| Finish - Machining | Black Oxide |
| Flute Length | 3 1/8 in, 3.1250", 79.3. |
| Flute Length (Metric) | 79.38mm |
| Flute Type | Spiral |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| Helix Angle | 28?, 28 Degrees |
| Item | Reduced Shank Drill Bit |
| Item? | 50AY15 |
| Material | HSS |
| Material - Machining | High Speed Steel |
| Maximum Drilling Depth | 3-29/32 in, 3 29/32 in |
| Measurement System | Metric |
| Mfr. Model? | C21189 |
| Number of Flutes | 2 |
| Overall Length | 152.40 mm, 152.4 mm, 6.. |
| Overall Length (Metric) | 152.40mm |
| Point Angle | 118 deg, 118? |
| Point Style | Split |
| Point Type | Split |
| Primary Material Applic. | Cast Iron, Steel, Cast . |
| Primary Material Applic. | K, P, K; P |
| Series | 1877M |
| Shank Configuration | Reduced w/ 3 Flats |
| Shank Dia. | 12.70 mm |
| Shank End Feature | 3 Flats |
| Shank End Feature Length | 0.8750" |
| Shank Length | 2.2500", 57.15 mm |
| Shank Length (Metric) | 57.15mm |
| Shank Neck Diameter | 0.9403" |
| Shank Neck Length | 0.5000" |
| Shank Size | 0.5000", 12.7 mm |
| Shank Size (Metric) | 12.70mm |
| Shank Type | Flat/Reduced |
| Shank Type - Machining | Straight |
| Silver & Deming Drill | Yes |
| SKU | C21189 |
| Spiral Direction | Right Hand |
| Standards | Not Rated |
| Style | 1877M |
| Surface Condition | Black & Gold |
| Tool Size | 25.00mm, 25mm |
| UNSPSC | 27112801 |
| UPC | 6.97E+11 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Megadepot | C21189 | 36.3 | 1 | In Stock | | Cle-Line | | 36.3 @ 1 |
 | heavydutydepot.com | C21189 | 36.3 | 3 | In Stock | | Cle-Line | | 36.3 @ 3 |
 | Global Industrial | WBB2543970 | 36.95 | 1 | In Stock | | Cle-Line | | 36.95 @ 1 |
 | usmegastore.com | C21189 | 37.78 | 1 | In Stock | | Cle-Line | | 37.78 @ 1 |
 | Zoro | G4954166 | 41.9 | 1 | In Stock | 35 | Cle-Line | 0.65 | 41.9 @ 1 |
 | MRO Supply | 6124153 | 43.07 | 2 | In Stock | | Cle-Line | | 43.07 @ 2 |
| AmazonSC | B00J9MPVPO | 51.98 | 1 | In Stock | | Cle-line | | 51.98 @ 1 |
 | imsbolt.com | C21189 | 71.0 | 1 | In Stock | | CLE-LINE | | 71.0 @ 1 |
| Grainger | 50AY15 | 73.47 | 1 | In Stock | | CLE-LINE | | 73.47 @ 1 |
