- mpnC23483
- brandname: Cle-Line
- manufacturername: Cle-Line

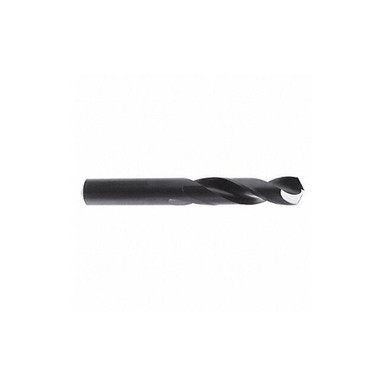

Screw Mach Drill, Hss, Blk Oxide, 27/64 in
- Brand: Cle-line
- PartNumber: C23483
- Color: Black Oxide
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: CLE-LINE
- Label: CLE-LINE
Attributes
| Key | Value |
|---|
| Applicable Materials | Alloy Steel, Carbon Ste. |
| Application | For Alloy, Carbon And T. |
| Brand | Cle-Line |
| Color | Black Oxide |
| Current Stock | 47 |
| Cutting Depth | 3XD |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Decimal Equivalent | 0.4219 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 0.4219" |
| Diameter (Fraction) | 27/64" |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Finish | Black Oxide |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | High Speed Steel |
| Drill Bit Point Angle | 135 Degrees |
| Drill Bit Size | 27/64 in |
| Drill Construction | Heavy-Duty |
| Drill Diameter Measurem. | Imperial |
| Drill Diameter Tolerance | +0.0000 in /-0.0010 in |
| Drill Length Class | Screw Machine Length |
| Drill Point Length | 0.0874 in |
| Drill Size - Decimal In. | 0.4219 in |
| Drill Size - Fraction | 27/64 in |
| Drill Size System | Fractional |
| Drill Style | Screw Machine Drill |
| Finish | Black Oxide |
| Flute Length | 2 in, 2.0000" |
| Flute Length (Metric) | 50.80mm |
| Flute Type | Right Spiral, Spiral |
| Grade | Heavy Duty |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| International Shipping | No |
| Item | Screw Machine Drill Bit |
| Lead Time | Expected to ship in 1-2. |
| List Number | 1896 |
| Material | HSS, High Speed Steel |
| Maximum Drilling Depth | 2 in |
| Measurement System | Imperial |
| Mpn | C23483 |
| Number of Flutes | 2 |
| Overall Length | 3 3/8 in, 3-3/8 in, 3.3. |
| Overall Length (Metric) | 85.72mm |
| Point Angle | 135 deg, 135? |
| Point Style | Split |
| Point Type | Split point, Split |
| Series | 1896 |
| Shank Configuration | Straight |
| Shank Dia. | 27/64 in |
| Shank Length | 1 3/8 in, 1.3750" |
| Shank Length (Metric) | 34.92mm |
| Shank Size | 27/64 in Dia x 1-3/8 in. |
| Shank Size (Metric) | 10.72mm |
| Shank Type | Straight |
| Sizes Included | 27/64" |
| SKU | ZO-G0785382 |
| Style | 1896 |
| SubCategory | Machining |
| Surface Condition | Steam Oxide |
| Tool Size | 27/64" |
| Type | General Purpose Heavy D. |
| UPC | 697334234838 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Global Industrial | WBB2544654 | 4.39 | 6 | 6 | | Cle-Line | | 4.39 @ 6 |
 | Megadepot | C23483 | 4.74 | 1 | 6 | | Cle-Line | | 4.74 @ 6 |
 | usmegastore.com | C23483 | 4.78 | 1 | 6 | | Cle-Line | | 4.78 @ 6 |
 | heavydutydepot.com | C23483 | 4.78 | In Stock | 6 | | Cle-Line | | 4.78 @ 21 |
 | MRO Supply | 6124882 | 5.22 | 10 | 6 | | Cle-Line | | 5.22 @ 10 |
 | Zoro | G0785382 | 5.29 | 1 | 126 | | Cle-Line | 0.1 | 5.29 @ 6 |
 | Raptor Supplies | AE7YFK | 7.2516015 | 1 | 6 | | CLE-LINE | | 7.2516015 @ 6 |
 | sustainablesupply.com | C1465284 | 8.14 | 1 | 6 | | Cle-Line | 0.1 | 8.14 @ 6 |
 | simsupply.com | ZO-G0785382 | 12.54 | 1 | 47 | | Cle-Line | | 12.54 @ 6 |
