CLEVELAND C16756

mpnC16756
brandname: CLEVELAND
manufacturername: CLEVELAND

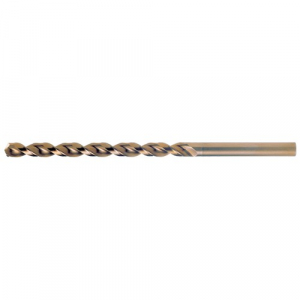

Cleveland 2575 Cobalt Steel Jobbers' Length Drill Bit, Wide Land Parabolic Flute, Gold Oxide Finish, Round Shank, 135 Degree Notch Point, Wire Size #33 (Pack of 10)

Cleveland 2575 Cobalt Steel Jobbers

zoom

Brand: CLEVELAND
PartNumber: C16756
Model: C16756
Size: #33
PackageQuantity: 1
Binding: Misc.
Manufacturer: Greenfield Industries
Label: Greenfield Industries

Attributes

Key	Value
Application	For Stainless Steel, To.
Coolant Fed	Non-Coolant Through
Coolant Through	No
Country of Origin (subj.	United States
Cutting Direction	Right Hand
Decimal Equivalent	0.1130
Depth x Dia. Ratio	10xD
Depth:Dia. Ratio	10xD
Drill Bit Dimension Type	Wire
Drill Bit Finish	Gold Ferrous Oxide
Drill Bit Grouping	Drill Bit
Drill Bit Material	Cobalt
Drill Bit Point Angle	135 Degrees
Drill Bit Point Type	Split Point
Drill Bit Size	#33
Drill Diameter Tolerance	+0.0000 in /-0.0005 in
Drill Length Class	Taper Length
Drill Point Length	0.0234 in
Finish - Machining	Straw/Bronze
Flute Length	2 3/4 in
Flute Type	Parabolic
Grade	High Performance
Helix Angle	35 Degrees /45 Degrees
Item	Taper Length Drill Bit
List Number	2575
Material	HSS-CO 8% (M42)
Material - Machining	Cobalt
Material Grade - Machin.	M42
Maximum Drilling Depth	2 3/4 in
Measurement System	Wire
Number of Flutes	2
Overall Length	5 1/8 in
Point Type	Split
Primary Material Applic.	Aluminum, Brass, Bronze.
Primary Material Applic.	N
Series	2575
Shank Dia.	7/64 in
Shank Length	2 3/8 in
Shank Type	Straight
Shank Type - Machining	Straight
Sizes Included	#33
Spiral Direction	Right Hand
Standards	ASME B94.11M-1993
Style	2575
Surface Condition	Straw
Tool Size	#33

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	MRO Supply	6111957	19.86	2	10		Cleveland		19.86 @ 10
	usmegastore.com	C16756	20.51	1	10		Cleveland		20.51 @ 10
	Zoro	G2999433	26.1	1	10		Cleveland	0.01	26.1 @ 10
	sustainablesupply.com	C2768747	28.18	1	10		Cleveland	0.01	28.18 @ 10
	bscsource.com	C16756	29.99	1	10		Cleveland		29.99 @ 10
	National Supply Network	2148278	35.629	1	10		Cleveland		35.629 @ 10
	Guardian	02148278	41.28	1	10		Cleveland		41.28 @ 10
