- mpnC27927
- brandname: CLEVELAND
- manufacturername: CLEVELAND

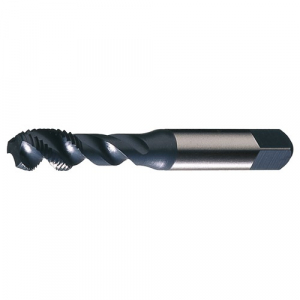

Cleveland C27927 B101 1/2-20 H5 3f Mbtm Ctd Hp Pm Sp Fl Tap
- Brand: Cleveland Twist Drill
- PartNumber: C27927
- Manufacturer: Cleveland
- Label: Cleveland
Attributes
| Key | Value |
|---|
| 55% Thread Drill Size | 11.80 mm |
| 65% Thread Drill Size | 11.60 mm |
| 75% Thread Drill Size | 11.40mm |
| Chamfer Type | Semi-Bottoming |
| Class of Fit | 2B/3B, 2B, 3B |
| Country of Origin (subj. | United States |
| Cutting Direction | Right Hand |
| Cutting Direction - Mac. | Right Hand |
| Drill Bit Size | 29/64 in |
| Extended Neck | Yes |
| Finish/Coating | Steam Oxide |
| Helix Angle | 42 Degrees, 30 deg |
| Item | Spiral Flute Tap |
| List Number | B101 |
| Material | HSS-E, M4 HSS/SD Powder. |
| Measurement System | Fractional Inch, Imperi. |
| Number of Flutes | 3 |
| Number of Pieces | 1 |
| Overall Length | 3-3/8 in, 3-3/8" |
| Pitch Diameter Limit | H5 |
| Primary Material Applic. | Stainless Steel, Steel |
| Primary Material Applic. | M, P |
| Secondary Material Appl. | Cast Iron, Stainless St. |
| Secondary Material Appl. | K, M |
| Series | B101 |
| Shank Dia. | Shank Dia.: 0.3670" |
| Shank Diameter | 0.367 in |
| Shank Length | 1 23/32 in |
| Shank Type - Machining | Straight |
| Spiral Direction | Right Hand |
| Square Size | 0.2750 in, 0.275 in |
| Standards | USCTI Table 302A |
| Style | B101 |
| Surface Condition | Steam Oxide |
| Tap Chamfer | Semi-Bottoming |
| Tap Dimension Type | Inch |
| Tap Finish | Steam Oxide |
| Tap Material | High Speed Steel |
| Tap Shank Standard | USCTI Table 302A |
| Tap Size | 1/2" |
| Tap Style | Spiral Flute |
| Tap Thread Size | 1/2"-20 |
| Tap Thread Type | UNF |
| Thread Direction | Right Hand |
| Thread Form | UNF |
| Thread Length | 15/16 in, 1-21/32" |
| Thread Limit | H5 |
| Thread Pitch | 20 |
| Thread Size | 1/2"-20, 1/2-20 |
| Thread Standard | UNF |
| Threads per Inch | 20 |
| Tool Size | 1/2-20 UNF |
| Type | High Performance Spiral. |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | MRO Supply | 6120049 | 32.27 | 2 | In Stock | | Cleveland | | 32.27 @ 2 |
 | usmegastore.com | C27927 | 34.26 | 1 | In Stock | | Cleveland | | 34.26 @ 1 |
 | Zoro | G2754390 | 39.34 | 1 | In Stock | 8 | Cleveland | 1.68 | 39.34 @ 1 |
 | sustainablesupply.com | C2769645 | 41.45 | 1 | In Stock | | Cleveland | 1.68 | 41.45 @ 1 |
