CLEVELAND C40801

mpnC40801
brandname: CLEVELAND
manufacturername: CLEVELAND

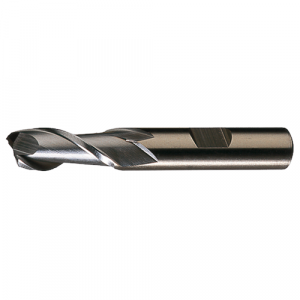

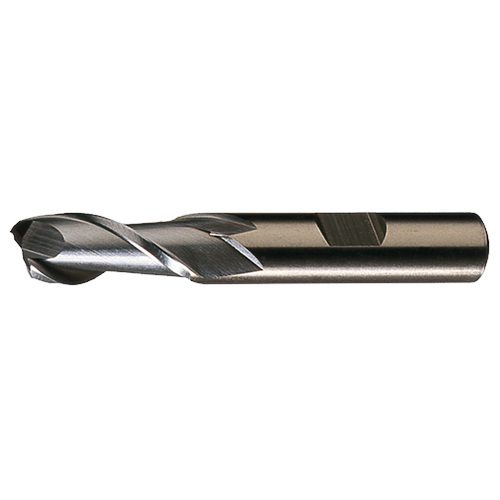

CLEVELAND Sq. End Mill,Single End,Pow Met,11/16" C40801

CLEVELAND Sq. End Mill,Single End,Pow Met,11/16" C40801

zoom

Brand: CLEVELAND
PartNumber: C40801
Model: C40801
PackageQuantity: 1
Binding: Misc.
Manufacturer: CLEVELAND
Label: CLEVELAND

Attributes

Key	Value
# of Flutes	2
Cast Iron (K) Compatibi.	No
Corner Radius	0.000 in
Cutter Diameter	11/16 in
Cutting Direction	Right Hand
Diameter (in)	0.6875
Diameter (mm)	17.46
Dimension Type	Fractional Inch
End Mill Cutting Type	Center Cutting
End Mill Material	Powdered Metal
Finish	Bright, Bright (Uncoate.
Flute Type	Spiral
Grade	Heavy Duty
Hardened (H) Compatibil.	No
Helix Angle	37 deg, 37 Degrees
Length of Cut	1-5/8 in, 1 5/8 in
Length of Cut (in)	1.6250
Length of Cut (mm)	41.27
List Number	PM-2
Material	HSS-E (PM), PM HSS-E
Milling Dia.	11/16 in
Milling Diameter	11/16"
Neck Dia.	Not Applicable
Neck Length	Not Applicable
Non Ferrous (N) Compati.	Yes
Number of Flutes	2
Overall Length	3 3/4 in, 3-3/4 in
Overall Length (in)	3.7500
Overall Length (mm)	95.25
Series	PM-2
Shank Dia.	5/8 in
Shank Diameter	5/8 in
Shank Diameter (in)	0.6250
Shank Diameter (mm)	15.88
Shank Type	Straight/Weldon Flat, W.
Single End/Double End	Single End
Size	11/16"
Stainless (M) Compatibi.	Yes
Style	PM-2
Super Alloy (S) Compati.	Yes
Surface Condition	Bright
Tool Size	11/16" x 5/8" x 1-5/8" .
Type	Center Cutting Single E.

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	MRO Supply	6116559	64.68	1	In Stock		Cleveland		64.68 @ 1
	Megadepot	C40801	67.34	1	In Stock		Cleveland		67.34 @ 1
	usmegastore.com	C40801	67.77	1	In Stock		Cleveland		67.77 @ 1
	Zoro	G2975198	74.09	1	1		Cleveland	0.3	74.09 @ 1
