HARTING 62M1474

mpn62M1474
brandname: HARTING
manufacturername: HARTING

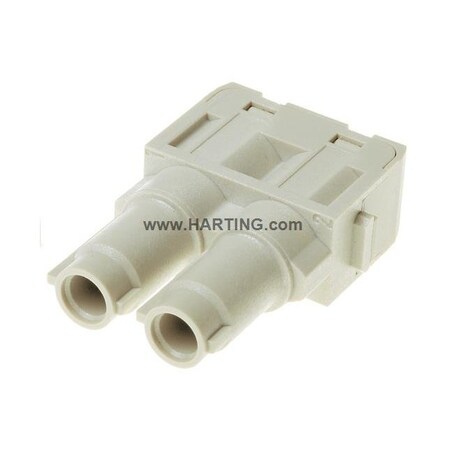

HARTING 09 14 002 2741 Rectangular HAN Module Socket 2WAY Screw

HARTING 09 14 002 2741 Rectangular HAN Module Socket 2WAY Screw

zoom

Brand: HARTING
PartNumber: 62M1474
Model: 62M1474
PackageQuantity: 1
Manufacturer: HARTING
Label: HARTING

Attributes

Key	Value
Amperage Rating	70 A
Application	Industrial Connectors
ASIN	B00MEJB34C
Color	Pebble Gray
Connection Type	Screw
Connector Gender	Female
Connector Type	Modules
Contact Material	Copper alloy, Silver Pl.
Contact Plating	Silver plated
Contact Style	Female
Contacts, # of	2
Current Rating	70 A
Export Class	EAR / EAR99
Family Name	Han-Modular Family
Gender	Female
Includes Poles	Yes
Insert Color	Gray
Insert Material	Polycarbonate
Item	Industrial Rectangular .
Item model number	62M1474
Item Package Quantity	1
Manufacturer	HARTING
Material	Polycarbonate
Max. Single Wire Size	16 mm2
Max. Voltage	1000V
Maximum Contact Resista.	0.5 megaohm
Maximum Operating Tempe.	125 Degrees C
Min. Single Wire Size	6 mm2
Minimum Insulation Resi.	1.00 x 10^10 ohm
Minimum Mating Cycles	500
Number of Contacts	2
Number of Positions	2
Operating Voltage DC	1,000 V
Part Number	62M1474
Pole Finish	Silver plated
Pole Material	Copper alloy
Primary Type	Rectangular
RoHS	Yes
Series	Han-Modular Series, Han.
Special Features	Axial
Specification	Han-Modular
Standards	RoHS Compliant
Style	8-4
Temperature Range	-40 Degrees C to 125 .
Termination	Crimp
Termination Method	Axial screw termination
Type	Socket
Voltage Rating	1000V
Weight (g)	30.00000
Weight (lbs)	0.06614
Wire Size	6 to 16 sq mm, 4-8 AWG

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Carlton Bates Company	78950617243	32.7	1	In Stock		HARTING OF NORTH AMERICA INC		32.7 @ 1
	TME	09140022741	33.83	1	23		HARTING		33.83 @ 1
	PEI-Genesis	09140022741	35.93	1	34		Harting		35.93 @ 1
	AmazonSC	B00MEJB34C	36.36	1	In Stock		HARTING		36.36 @ 1
	Zoro	G205301862	37.99	1	In Stock		Harting	2.0	37.99 @ 1
	us.rs-online.com	70104155	40.79	1	266		HARTING		40.79 @ 1
	Newark	62M1474	42.64	1	156		HARTING		42.64 @ 1
	RS Delivers	173-7318	52.1724	1	14		HARTING		52.1724 @ 1
	AmazonTP	B00GPPUZ36	60.66	1	In Stock	2	HARTING		60.66 @ 1
