Marathon Electric GT1413

mpnGT1413
brandname: Marathon Electric Motors
manufacturername: Marathon Electric Motors

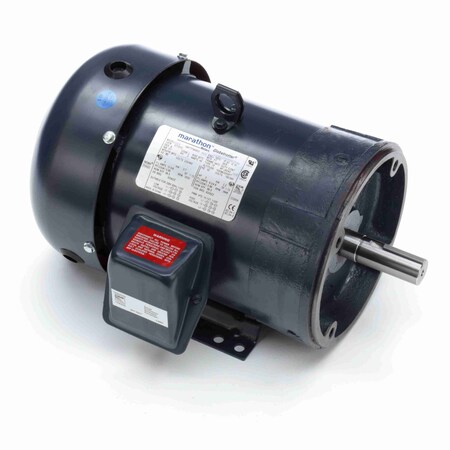

Marathon GT1413 184TC Frame 184TTFB6032 TEFC General Purpose Motor, 3 Phase, C-Face with Base, Ball Bearing, 5 hp, 1800 rpm, 1 Speed, 208-230/460 VAC

Marathon GT1413 184TC Frame 184TTFB6032 TEFC General Purpose Motor, 3 Phase, C-Face with Base, Ball Bearing, 5 hp, 1800 rpm, 1 Speed, 208-230/460 VAC

zoom

Brand: Marathon Electric
PartNumber: GT1413
Model: MGT1413
PackageQuantity: 1
Binding: Misc.
Manufacturer: Marathon Electric
Label: Marathon Electric

Attributes

Key	Value
Amps	5 A
Bearings	Ball
CC Number	CC003A
Country of Origin (subj.	China
Duty Cycle	Continuous
Efficiency	90.2%
Enclosure Material	Steel
Enclosure Type	TEFC (Totally Enclosed .
Frame	184TC
Full Load Amps	5.2
Green Certification or .	NEMA Premium(R) Rated
HP	5
Hz	60
Ins. Class	F
Insulation Class	F
Inverter Rated	Yes
Item	General Purpose Motor
Length Less Shaft	14 1/8 in
Manufacturer Model #	184TTFB6032
Manufacturers Warranty .	1 yr
Max. Ambient Temp.	40 Degrees C
Maximum Ambient Tempera.	40? C
Motor Application	General Application
Motor Bearings	Ball
Motor Design	3-Phase
Motor Efficiency Group	NEMA Premium Efficient
Motor Enclosure Design	Totally Enclosed Fan-Co.
Motor Frame Material	Steel
Motor Mounting Position	Horizontal
Motor Mounting Type	Face/Base
Motor Service Factor	1.15
Motor Shaft Design	Keyed
Motor Shaft Rotation	CW/CCW
Motor Thermal Protection	None
Mounting Orientation	Horizontal
Mounting Type	Rigid Base
Nameplate RPM	1,765
NEMA Design	A
No. of Speeds	1
Nominal Efficiency	88.5 %
Number of Speeds	1
Overall Length	16.73", 16 7/8 in
Phase	3, Three
Product Type	3 Phase
Rotation	Reversible
RPM	1760
Service Factor	1.15
Shaft Dia.	1 1/8 in
Shaft Diameter	1-1/8"
Shaft Length	2 3/4 in, 2.62"
Ship Weight	105 lbs.
Standards	UL Recognized (E49747),.
Usable @ 200V	No
Usable @ 208V	No
Voltage	575V AC
Volts	575
Weight	110 lb

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	emotorpro.com	GT1413	352.13	1	In Stock		Marathon	105.0	352.13 @ 1
	grainger.ca	AOSGT1413	816.05271804	1	In Stock		MARATHON MOTORS	105.0	816.05271804 @ 1
	Zoro	G7033401	1004.36	1	In Stock	10	Marathon		1004.36 @ 1
	cbtcompany.com	GT1413	1133.56	1	In Stock		Marathon Electric Motors		1133.56 @ 1
