- mpnD1V2B
- brandname: US Motors
- manufacturername: US Motors

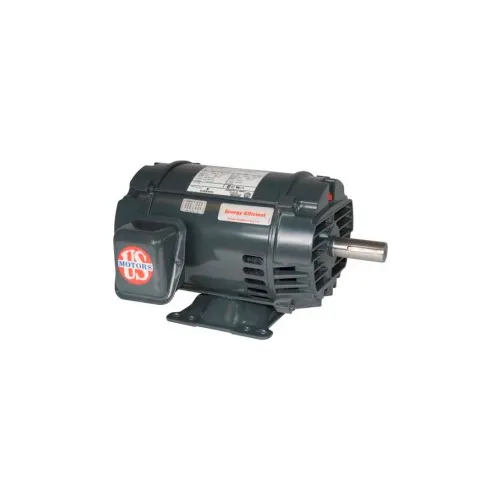

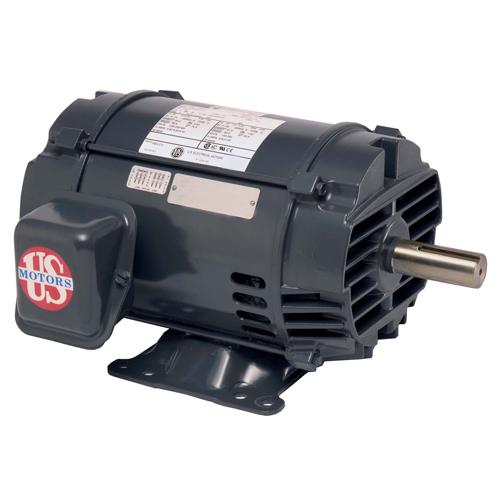

U.S. Motors US Motors Inverter Duty, 1 HP, 3-Phase, 1760 RPM Motor, D1V2B
- Brand: U.S. Motors
- PartNumber: D1V2B
- Manufacturer: U.S. Motors
- Label: U.S. Motors
Attributes
| Key | Value |
|---|
| Amps | 3.1/1.6 |
| Bearings | Ball |
| Composition | Rolled Steel |
| Construction | Rolled Steel |
| Drive End Flange Type | Standard |
| Efficiency | 85.5% |
| Enclosure | Open Drip Proof, Open |
| Enclosure Type | ODP (Open Dripproof) |
| Estimated Weight | 40.76 |
| Family Series | US Motors Motors |
| FL Amps | 3.1/1.6 |
| FL Efficiency | 84 |
| Frame | 143T |
| Frequency | 60 Hz |
| Gross Weight | 30 lbs |
| Hertz | 60 |
| Horsepower | 1 hp |
| HP | 1 |
| Hz | 60 |
| Insulation Class | F |
| Inverter Duty | Yes |
| Item | Motor,3PH,1HP,1800,230/. |
| Item Number | D1V2B |
| Manufacturer | US Motors (Nidec), US M. |
| Manufacturer Model # | FE58 |
| Manufacturer Part Number | D1V2B |
| Maximum Ambient Tempera. | 40? C |
| Model Number | HC81 |
| Mounting | Foot Mount, Base |
| Mounting Type | Foot Mount |
| NEMA Frame | 143T |
| Net Weight | 0 lbs |
| Nominal Voltage | 240 VAC, 480 VAC |
| Number of Poles | 4 |
| Number of Speeds | 1 |
| Part Number | D1V2B |
| Phase | 3 |
| Product Type | General Purpose, Three . |
| Rotation | Reversible |
| RPM | 1760, 1,760 RPM |
| Service Factor | 1.15 |
| Ship Weight | 30 lbs. |
| Speed (RPM) | 1755 |
| Voltage | 230V, 460V |
| Voltage (AC) | 230 VAC, 460 VAC |
| Volts | 230, 460 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G0402401 | 328.99 | 1 | In Stock | | U.S. Motors | 30.0 | 328.99 @ 1 |
 | Global Industrial | WBB466123 | 383.95 | 1 | In Stock | 17 | US Motors | | 383.95 @ 1 |
 | emotorpro.com | D1V2B | 413.76 | 1 | In Stock | | U.S. Motors | 30.0 | 413.76 @ 1 |
 | National Supply Network | B466123 | 431.24 | 1 | In Stock | | US MOTORS | | 431.24 @ 1 |
 | motorsandcontrol.com | D1V2B | 436.15 | 1 | In Stock | | US Motors (Nidec) | 40.76 | 436.15 @ 1 |
 | Galco | D1V2B-USM | 534.69 | 1 | In Stock | | US Motors | 30.0 | 534.69 @ 1 |
| motionindustries.com | 02898371 | 745.0 | 1 | In Stock | | US Motors (Nidec) | | 745.0 @ 1 |
