- mpnEC0504B
- brandname: US Motors
- manufacturername: US Motors

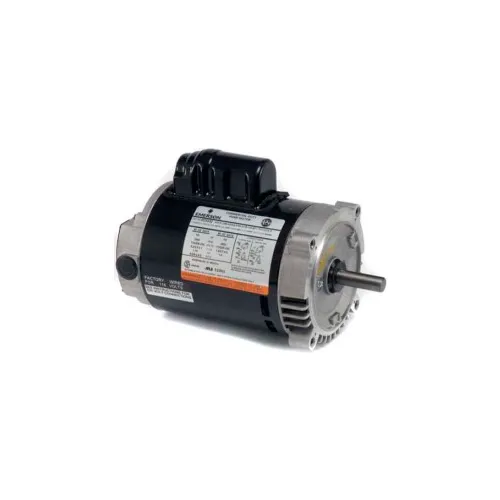

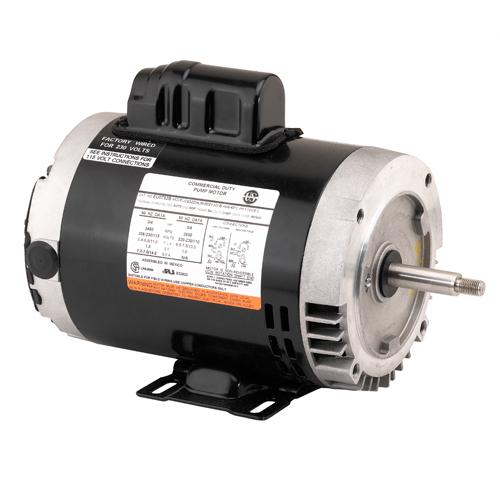

U.S. Motors US Motors Pump, 1/2 HP, 1-Phase, 1725 RPM Motor, EC0504B
- Brand: U.S. Motors
- PartNumber: EC0504B
- Binding: Misc.
- Manufacturer: U.S. Motors
- Label: U.S. Motors
Attributes
| Key | Value |
|---|
| AMP | 4.4, 4.5, 8.9 |
| Amps | 8.9/4.4-4.5 |
| Application | Commercial |
| Bearings | Ball |
| CE Approved | No |
| Coating | Painted |
| Color Finish | Grey |
| Composition | Rolled Steel |
| Condensing | No |
| Construction | Rolled Steel |
| Country of Origin (subj. | Mexico |
| CSA Certified | Yes |
| Diameter | 6-3/10 in |
| Drive End Flange Type | C-Face |
| Enclosure | Open Drip Proof, Open |
| Enclosure Type | ODP (Open Dripproof) |
| Estimated Weight | 24.20 |
| Family Series | US Motors Motors |
| Fan Speeds | 1 |
| FL Amps | 8.9/4.4-4.5 |
| Frame | 56C |
| Frequency | 60 Hz |
| Gross Weight | 24.9 lbs |
| Height | 11 in |
| Hertz | 60 |
| Horsepower | 1/2 hp |
| HP | 0.5, 1/2 |
| Hz | 60 |
| Indoor Outdoor | Indoor/Outdoor |
| Installation Type | Flanged |
| Insulation Class | B |
| Item | Motor,1/2HP,1725RPM,115. |
| Item Number | EC0504B |
| Kilowatts | 0.4 kW |
| Length | 15-8/25 in |
| Manufacturer | US Motors (Nidec), US M. |
| Manufacturer Model # | C063HKJ4998014J |
| Manufacturer Part Number | EC0504B |
| Material | Steel |
| Maximum Ambient Tempera. | 40? C |
| Model Number | C063HKJ4998014J |
| Motor Enclosure | Open Drip Proof (ODP) |
| Mounting | Foot Mount, Base/Face |
| Mounting Type | C-Face, Rigid |
| NEMA Frame | 56C |
| Net Weight | 0 lbs |
| Nominal Voltage | 120 VAC, 208 VAC, 240 V. |
| Number of Poles | 4 |
| Number of Speeds | 1 |
| Origin | Global |
| Overall Box Size | 15-8/25 in x 8-1/4 in x. |
| Overload Protection | Automatic |
| Part Number | EC0504B |
| Phase | 1, Single Phase |
| Power Source | Electric |
| Product Type | General Purpose, Motor,. |
| Rotation | Reversible |
| RPM | 1725, 1,725 RPM |
| RPM Range | 1400 and Above |
| Service Factor | 1.25 |
| Shaft Length | 2-31/500 in |
| Shaft Size | 5/8 in |
| Ship Weight | 22 lbs. |
| Speed (RPM) | 1725 |
| Temperature Range | -29 to 40 Deg C |
| Temperature Rating | 40 |
| Thermal Protection | Automatic |
| Type | USMEC0504B |
| UL Listed | No |
| Voltage | 110-120V, 208V, 230V |
| Voltage (AC) | 115 VAC, 208-230 VAC |
| Volts | 115/208-230V, 115/208-2. |
| Weight | 22 |
| Width | 8-1/4 in |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G0914512 | 320.0 | 1 | In Stock | | U.S. Motors | 22.0 | 320.0 @ 1 |
 | Global Industrial | WBB465427 | 430.95 | 1 | In Stock | | US Motors | | 430.95 @ 1 |
 | emotorpro.com | EC0504B | 433.49 | 1 | In Stock | | U.S. Motors | 22.0 | 433.49 @ 1 |
 | motorsandcontrol.com | EC0504B | 441.96 | 1 | In Stock | | US Motors (Nidec) | 24.2 | 441.96 @ 1 |
 | Galco | EC0504B-USM | 452.49 | 1 | In Stock | | US Motors | 24.9 | 452.49 @ 1 |
 | National Supply Network | B465427 | 467.74 | 1 | In Stock | | US MOTORS | | 467.74 @ 1 |
| motionindustries.com | 04385272 | 579.16 | 1 | In Stock | | US Motors (Nidec) | | 579.16 @ 1 |
| ferguson.com | 9582093 | 786.01 | 1 | In Stock | | US Motors | | 786.01 @ 1 |
