- mpnEH616
- brandname: US Motors
- manufacturername: US Motors

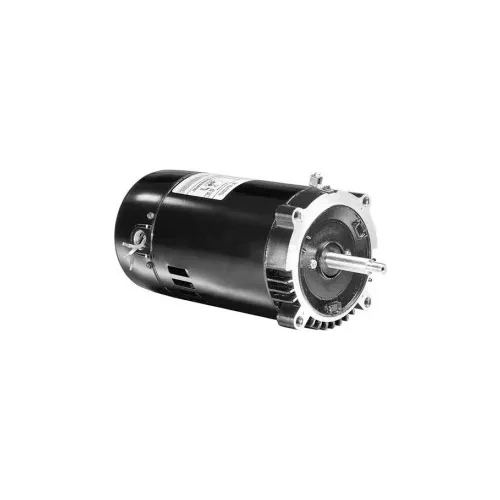

U.S. Motors 3-Phase Pool & Spa, Square & C-Face Flange, 1 1/2 HP, 3-Phase, 3450 RPM, EH616
- Brand: U.S. Motors
- PartNumber: EH616
- PackageQuantity: 1
- Manufacturer: U.S. Motors
- Label: U.S. Motors
Attributes
| Key | Value |
|---|
| Bearing Type | Ball |
| Bearings | Ball |
| Composition | Rolled Steel |
| Construction | Rolled Steel |
| Country of Origin (subj. | Mexico |
| Drive End Flange Type | C-Face |
| Enclosure | Open |
| Enclosure Type | ODP (Open Dripproof) |
| Estimated Weight | 29.70 |
| Family Series | US Motors Motors |
| Frame | 56C |
| Frequency | 60 Hz |
| Gross Weight | 17 lbs |
| Hertz | 50, 60 |
| Horsepower | 1-1/2 hp |
| HP | 1.5, 1-1/2 |
| Hz | 50/60 |
| Insulation Class | B |
| Item | Motor,1-1/2HP,3450,2850. |
| Item Number | EH616 |
| Kilowatts | 1.1 kW |
| Manufacturer | US Motors (Nidec), US M. |
| Manufacturer Model # | P063GFD4530014J |
| Manufacturer Part Number | EH616 |
| Maximum Ambient Tempera. | 50? C |
| Model Number | P063GFD4530014J |
| Mounting | Footless, Face |
| Mounting Type | C-Flange |
| NEMA Frame | 56C |
| Net Weight | 0 lbs |
| Nominal Voltage | 208 VAC, 240 VAC, 480 V. |
| Number of Poles | 2 |
| Number of Speeds | 1 |
| Overload Protection | None |
| Part Number | EH616 |
| Phase | 3 |
| Product Type | Three Phase, Pool and S. |
| Rotation | Reversible |
| RPM | 3450, 3,450 RPM |
| Service Factor | 1.30 |
| Ship Weight | 27 lbs. |
| Speed (RPM) | 3450 |
| Voltage | 208V, 230V, 460V |
| Voltage (AC) | 208-230 VAC, 460 VAC |
| Volts | 208, 230, 460 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G0918125 | 309.0 | 1 | In Stock | | U.S. Motors | 27.0 | 309.0 @ 1 |
 | Global Industrial | WBB465982 | 359.95 | 1 | In Stock | | US Motors | | 359.95 @ 1 |
 | emotorpro.com | EH616 | 382.96 | 1 | In Stock | | U.S. Motors | 27.0 | 382.96 @ 1 |
 | National Supply Network | B465982 | 405.94 | 1 | In Stock | | US MOTORS | | 405.94 @ 1 |
 | motorsandcontrol.com | EH616 | 437.6 | 1 | In Stock | | US Motors (Nidec) | 29.7 | 437.6 @ 1 |
| Pool Supply World | 318244 | 439.99 | 1 | In Stock | | U.S. Motors Emerson | | 439.99 @ 1 |
 | Galco | EH616-USM | 449.14 | 1 | In Stock | | US Motors | 17.0 | 449.14 @ 1 |
| motionindustries.com | 04385427 | 573.47 | 1 | In Stock | | US Motors (Nidec) | | 573.47 @ 1 |
