- mpnEU3002B
- brandname: US Motors
- manufacturername: US Motors

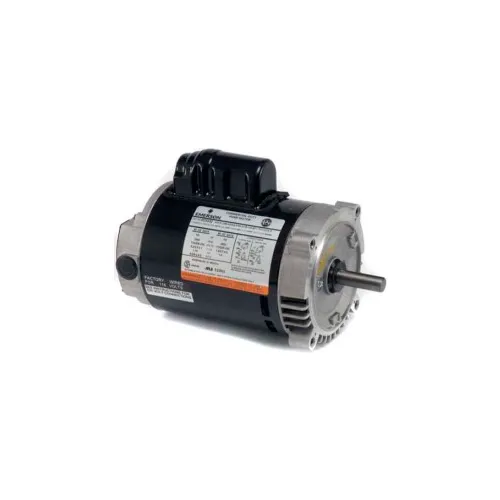

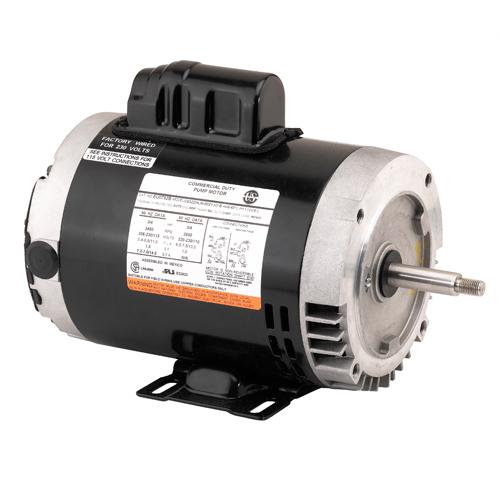

U.S. Motors US Motors Pump, 3 HP, 1-Phase, 3450 RPM Motor, EU3002B
- Brand: U.S. Motors
- PartNumber: EU3002B
- Manufacturer: U.S. Motors
- Label: U.S. Motors
Attributes
| Key | Value |
|---|
| Amps | 14.0-12.8 |
| Bearings | Ball |
| Capacitor | 35MFD/370VAC |
| Composition | Rolled Steel |
| Construction | Rolled Steel |
| Country of Origin (subj. | Mexico |
| Drive End Flange Type | C-Face |
| Enclosure | Open Drip Proof, Open |
| Enclosure Type | ODP (Open Dripproof) |
| Estimated Weight | 41.80 |
| Family Series | US Motors Motors |
| FL Amps | 14.0-12.8 |
| Frame | 56J |
| Frequency | 60 Hz |
| Gross Weight | 40.68 lbs |
| Hertz | 60 |
| Horsepower | 3 hp |
| HP | 3 |
| Hz | 60 |
| Insulation Class | B |
| Item | Motor,3HP,3450RPM,208-2. |
| Item Number | EU3002B |
| Kilowatts | 2.2 kW |
| Manufacturer | US Motors (Nidec), US M. |
| Manufacturer Model # | T063CMR1419013J |
| Manufacturer Part Number | EU3002B |
| Maximum Ambient Tempera. | 40? C |
| Model Number | T063CMR1419013J |
| Mounting | Foot Mount, Base/Face |
| Mounting Type | J-Face, Removable Base |
| NEMA Frame | 56J |
| Net Weight | 0 lbs |
| Nominal Voltage | 208 VAC, 240 VAC |
| Number of Poles | 2 |
| Number of Speeds | 1 |
| Overload Protection | Automatic |
| Part Number | EU3002B |
| Phase | 1 |
| Product Type | Pump, Capacitor Start |
| Rotation | CCW Shaft End |
| RPM | 3450, 3,450 RPM |
| Service Factor | 1.15 |
| Ship Weight | 38 lbs. |
| Speed (RPM) | 3450 |
| Thermal Protection | Automatic |
| Voltage | 208V, 230V |
| Voltage (AC) | 208-230 VAC |
| Volts | 208, 230 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G0921162 | 504.0 | 1 | In Stock | | U.S. Motors | 38.0 | 504.0 @ 1 |
 | Global Industrial | WBB465460 | 630.0 | 1 | In Stock | 17 | US Motors | | 630.0 @ 1 |
 | emotorpro.com | EU3002B | 674.95 | 1 | In Stock | | U.S. Motors | 38.0 | 674.95 @ 1 |
 | motorsandcontrol.com | EU3002B | 688.15 | 1 | In Stock | | US Motors (Nidec) | 41.8 | 688.15 @ 1 |
 | National Supply Network | B465460 | 702.99 | 1 | In Stock | | US MOTORS | | 702.99 @ 1 |
 | Galco | EU3002B-USM | 704.54 | 1 | In Stock | | US Motors | 40.68 | 704.54 @ 1 |
 | motionindustries.com | 04385287 | 901.75 | 1 | In Stock | | US Motors (Nidec) | | 901.75 @ 1 |
