- mpnT34S3B14
- brandname: US Motors
- manufacturername: US Motors

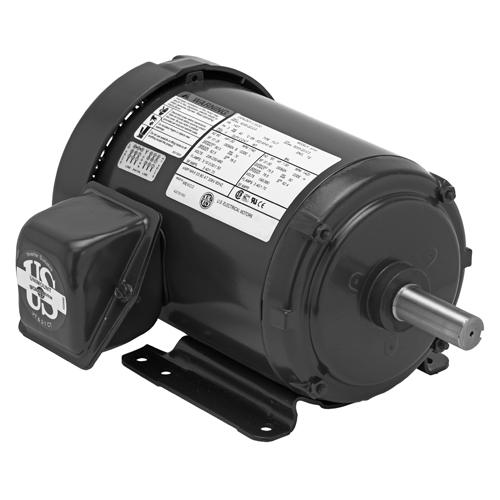

US Motors T34S3B14
- Brand: Emerson
- PartNumber: T34S3B14
- Binding: Kitchen
- Manufacturer: US Motors/Emerson
- Label: US Motors/Emerson
Attributes
| Key | Value |
|---|
| Amps | 3.4-3.5/1.7 |
| Bearing Type | Ball |
| Bearings | Ball |
| Composition | Rolled Steel |
| Construction | Rolled Steel |
| Country of Origin (subj. | Mexico |
| Drive End Flange Type | Standard |
| Efficiency | 75.5% |
| Enclosure | TEFC, Totally Enclosed . |
| Enclosure Type | TEFC (Totally Enclosed . |
| Estimated Weight | 35.20 |
| Family Series | US Motors Motors |
| FL Amps | 3.4-3.5/1.7 |
| FL Efficiency | 75.5 |
| Frame | 143T |
| Frequency | 60 Hz |
| Full Load Amps | 3.4-3.5/1.7 A |
| Gross Weight | 32 lbs |
| Hertz | 60 |
| Horsepower | 3/4 hp |
| HP | 3/4, 0.75 |
| Hz | 60, 60 Hz |
| Ins. Class | B |
| Insulation Class | B |
| Item | Motor |
| Item Number | T34S3B14 |
| Kilowatts | 0.6 kW |
| Manufacturer | US Motors (Nidec), US M. |
| Manufacturer Model # | P063ECT3590025B |
| Manufacturer Part Number | T34S3B14 |
| Manufacturers Warranty . | 1 yr |
| Max. Ambient Temp. | 104 Degrees F |
| Maximum Ambient Tempera. | 40? C |
| Model Number | P063ECT3590025B |
| Motor Application | Blowers, Compressors, D. |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan-Co. |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | None |
| Mounting | Foot Mount, Base |
| Mounting Type | Rigid |
| Nameplate RPM | 1,140 |
| NEMA Frame | 143T |
| Net Weight | 0 lbs |
| No. of Speeds | 1 |
| Nominal Efficiency | 75.5 % |
| Nominal Voltage | 208 VAC, 240 VAC, 480 V. |
| Number of Poles | 6 |
| Number of Speeds | 1 |
| Overload Protection | None |
| Part Number | T34S3B14 |
| Phase | Single, 3 |
| Product Type | General Purpose, Three . |
| Rotation | Reversible |
| RPM | 1140, 1,140 RPM |
| RPM Range | 1,101-1,200 |
| Service Factor | 1.15 |
| Ship Weight | 32 lbs. |
| Speed (RPM) | 1140 |
| Standards | CE Certification, CSA, . |
| Voltage | 208-230/460V AC, 208V, . |
| Voltage (AC) | 208-230 VAC, 460 VAC |
| Voltage Compatibility | 208-230/460V AC |
| Volts | 208, 230, 460 |
| Weight | 32 lb |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G1932556 | 275.0 | 1 | In Stock | | U.S. Motors | 32.0 | 275.0 @ 1 |
 | Global Industrial | WBB467033 | 314.95 | 1 | In Stock | | US Motors | | 314.95 @ 1 |
 | emotorpro.com | T34S3B14 | 343.23 | 1 | In Stock | | U.S. Motors | 32.0 | 343.23 @ 1 |
 | Galco | T34S3B14-USM | 350.58 | 1 | In Stock | | US Motors | 32.0 | 350.58 @ 1 |
 | motorsandcontrol.com | T34S3B14 | 350.58 | 1 | In Stock | | US Motors (Nidec) | 35.2 | 350.58 @ 1 |
 | National Supply Network | B467033 | 356.44 | 1 | In Stock | | US MOTORS | | 356.44 @ 1 |
 | bscsource.com | T34S3B14 | 520.49 | 1 | In Stock | | US Motors | | 520.49 @ 1 |
 | Guardian | 04089470 | 558.71 | 1 | In Stock | | US Motors | | 558.71 @ 1 |
| motionindustries.com | 02899237 | 572.2 | 1 | In Stock | | US Motors (Nidec) | | 572.2 @ 1 |
