- mpnU1P3DC
- brandname: US Motors
- manufacturername: US Motors

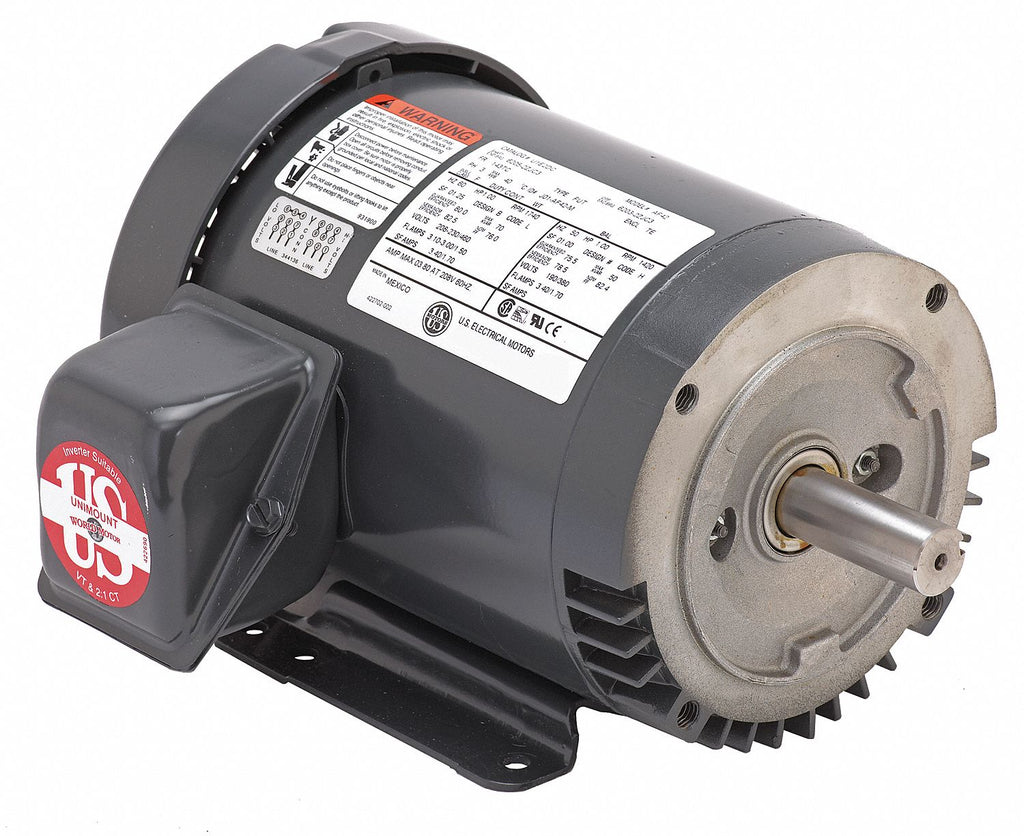

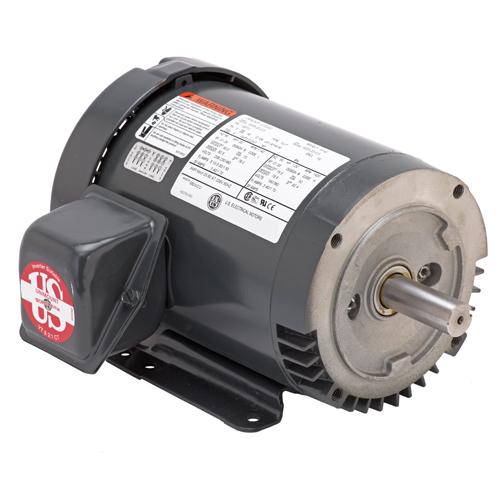

U.S. Motors US Motors Unimount TEFC, 1 HP, 3-Phase, 1155 RPM Motor, U1P3DC
- Brand: U.S. Motors
- PartNumber: U1P3DC
- PackageQuantity: 1
- Manufacturer: U.S. Motors
- Label: U.S. Motors
Attributes
| Key | Value |
|---|
| Amps | 3.6-3.5/1.8 |
| Bearings | Ball |
| Brand | U.s. Motors |
| CC Number | CC030A |
| Composition | Rolled Steel |
| Construction | Rolled Steel |
| Country of Origin (subj. | Mexico |
| Current Stock | 1 |
| Drive End Flange Type | C-Face |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Efficiency | 82.5% |
| Enclosure | TEFC, Totally Enclosed . |
| Enclosure Type | TEFC (Totally Enclosed . |
| Estimated Weight | 44.00 |
| Family Series | US Motors Motors |
| FL Amps | 3.6-3.5/1.8 |
| FL Efficiency | 82.5 |
| Footnotes | 5,10 |
| Frame | 145TC |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 3.6 - 3.5/1.8, 3.6-3.5/. |
| Green Certification or . | NEMA Premium Rated |
| Gross Weight | 35 lbs |
| Hertz | 50, 60 |
| Horsepower | 1, 1 hp |
| HP | 1 |
| Hz | 50/60, 60/50 |
| Ins. Class | F |
| Insulation Class | F |
| International Shipping | No |
| Item | General Purpose Motor |
| Item Number | U1P3DC |
| Kilowatts | 0.7 kW |
| Length Less Shaft | 10-27/32", 10 27/32 in |
| Manufacturer | US Motors (Nidec), US M. |
| Manufacturer Model # | FE12 |
| Manufacturer Part Number | U1P3DC |
| Manufacturers Warranty . | 2 yr., 2 yr |
| Max. Ambient Temp. | 40 Degrees C, 40 Degree. |
| Maximum Ambient Tempera. | 40? C |
| Model Number | FE12 |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Efficiency Group | NEMA Premium Efficient,. |
| Motor Enclosure Design | Totally Enclosed Fan-Co. |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal or Vertical . |
| Motor Mounting Type | Face/Base |
| Motor Service Factor | 1.25 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | None |
| Motor Type | Three Phase Premium Eff. |
| Mounting | Foot Mount, Base/Face |
| Mounting Type | C-Face Footed |
| Mpn | U1P3DC |
| Name Plate RPMs | 1155 |
| Nameplate RPM | 1,200, 1200 |
| NEMA Design | B |
| NEMA Frame | 145TC |
| Net Weight | 0 lbs |
| No. of Speeds | 1 |
| Nominal Efficiency | 82.5 %, 82.5% |
| Nominal Voltage | 208 VAC, 240 VAC, 480 V. |
| Number of Poles | 6 |
| Number of Speeds | 1 |
| Overall Length | 13-1/8", 13 1/8 in |
| Part Number | U1P3DC |
| Phase | 3 |
| Product Type | General Purpose, Three . |
| Rotation | Reversible |
| RPM | 1155, 1,155 RPM |
| RPM Group | 1101-1200 |
| RPM Range | 1101-1200, 1,400 - 1,800 |
| Service Factor | 1.25 |
| Shaft Dia. | 7/8", 7/8 in |
| Shaft Length | 2 1/4 in, 2-1/4" |
| Ship Weight | 35 lbs. |
| SKU | ZO-G4624821 |
| Speed (RPM) | 1155 |
| Standards | UL, CSA, CE, UL Recogni. |
| SubCategory | Motors/Ac Motors |
| Thermal Protection Rati. | None |
| Type of Enclosure | TEFC |
| Voltage | 208-230/460 & 190/380, . |
| Voltage (AC) | 208-230 VAC, 460 VAC |
| Voltage Compatibility | 208, 230, 240, 460, 208. |
| Volts | 208, 230, 460 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| grainger.ca | GGE23J888 | 118.21615584 | 1 | In Stock | | US MOTORS | 44.05 | 118.21615584 @ 1 |
 | Global Industrial | WBB467208 | 475.95 | 1 | In Stock | | US Motors | | 475.95 @ 1 |
 | emotorpro.com | U1P3DC | 516.23 | 1 | In Stock | | U.S. Motors | 35.0 | 516.23 @ 1 |
 | National Supply Network | B467208 | 533.54 | 1 | In Stock | | US MOTORS | | 533.54 @ 1 |
 | Galco | U1P3DC-USM | 544.15 | 1 | In Stock | | US Motors | 35.0 | 544.15 @ 1 |
 | motorsandcontrol.com | U1P3DC | 544.15 | 1 | In Stock | | US Motors (Nidec) | 44.0 | 544.15 @ 1 |
 | Zoro | G4624821 | 570.99 | 1 | In Stock | 26 | U.S. Motors | 44.05 | 570.99 @ 1 |
 | bscsource.com | U1P3DC | 666.19 | 1 | In Stock | | US Motors | | 666.19 @ 1 |
 | simsupply.com | ZO-G4624821 | 689.99 | 1 | 1 | | U.s. Motors | | 689.99 @ 1 |
 | sustainablesupply.com | C2828752 | 735.05 | 1 | In Stock | | US Motors | 44.05 | 735.05 @ 1 |
 | Guardian | 77653657 | 742.07 | 1 | In Stock | | US Motors | | 742.07 @ 1 |
| motionindustries.com | 04487616 | 772.36 | 1 | In Stock | | US Motors (Nidec) | | 772.36 @ 1 |
