- mpnU3P3D
- brandname: US Motors
- manufacturername: US Motors

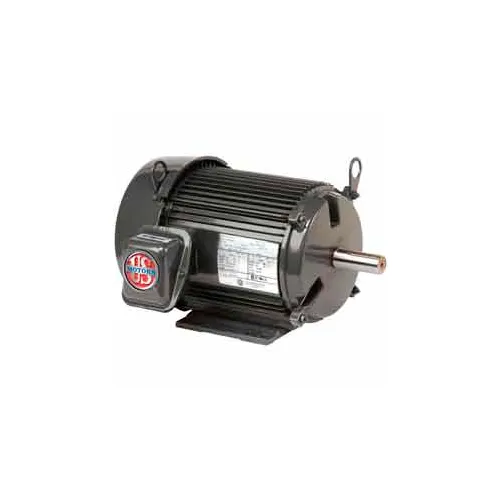

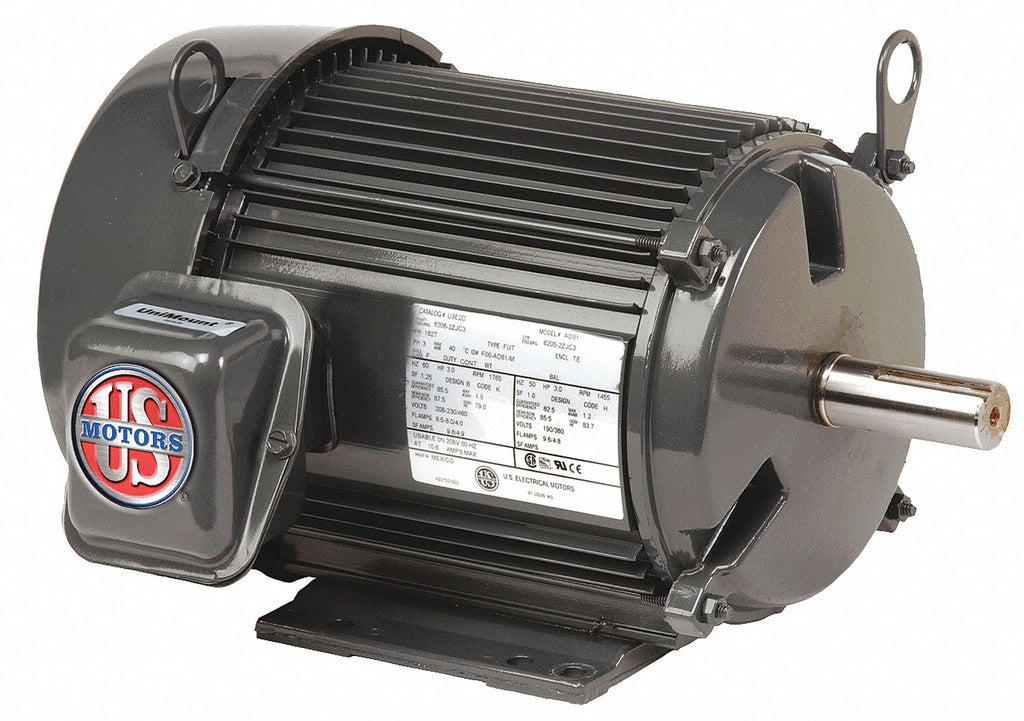

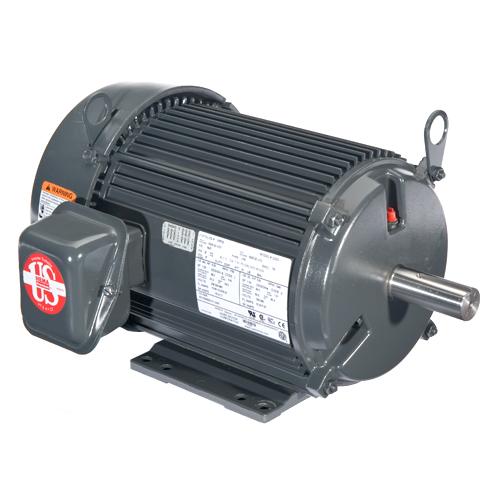

U3P3D General Purpose Motor - 3 ph, 3 hp, 1200 rpm, 208-230/460 V, 213T Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 50/60 Hz, Footed/Horizontal Mount
- Brand: US Motors (Nidec)
- PartNumber: U3P3D
- Manufacturer: US Motors (Nidec)
- Label: US Motors (Nidec)
Attributes
| Key | Value |
|---|
| Amps | 9.3-8.6/4.3 |
| Bearings | Ball |
| CC Number | CC030A |
| Composition | Aluminum |
| Construction | Aluminum |
| Country of Origin (subj. | Mexico |
| Drive End Flange Type | Standard |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Efficiency | 89.5% |
| Enclosure | TEFC, Totally Enclosed . |
| Enclosure Type | TEFC (Totally Enclosed . |
| Estimated Weight | 126.38 |
| Family Series | US Motors Motors |
| FL Amps | 9.3-8.6/4.3 |
| FL Efficiency | 89.5 |
| Footnotes | 5,10 |
| Frame | 213T |
| Frame Material | Aluminum |
| Frequency | 60 Hz |
| Full Load Amps | 9.3-8.6/4.3 |
| Green Certification or . | NEMA Premium Rated |
| Gross Weight | 114.89 lbs |
| Hertz | 50, 60 |
| Horsepower | 3 hp |
| HP | 3 |
| Hz | 50/60, 60/50 |
| Ins. Class | F |
| Insulation Class | F |
| Item | General Purpose Motor |
| Item Number | U3P3D |
| Kilowatts | 2.2 kW |
| Length Less Shaft | 15 1/4 in |
| Manufacturer | US Motors (Nidec), US M. |
| Manufacturer Model # | AS84 |
| Manufacturer Part Number | U3P3D |
| Manufacturers Warranty . | 2 yr |
| Max. Ambient Temp. | 40 Degrees C |
| Maximum Ambient Tempera. | 40? C |
| Model Number | AS84 |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Efficiency Group | Energy Efficient |
| Motor Enclosure Design | Totally Enclosed Fan-Co. |
| Motor Frame Material | Cast Aluminum |
| Motor Mounting Position | Horizontal or Vertical . |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.25 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | None |
| Mounting | Foot Mount, Base |
| Mounting Type | Foot Mount |
| Nameplate RPM | 1,200 |
| NEMA Design | B |
| NEMA Frame | 213T |
| Net Weight | 0 lbs |
| No. of Speeds | 1 |
| Nominal Efficiency | 89.5 % |
| Nominal Voltage | 208 VAC, 240 VAC, 480 V. |
| Number of Poles | 6 |
| Number of Speeds | 1 |
| Overall Length | 18 5/8 in |
| Part Number | U3P3D |
| Phase | 3, Three |
| Product Type | General Purpose, Three . |
| Rotation | Reversible |
| RPM | 1175, 1,175 RPM |
| RPM Group | 1101-1200 |
| RPM Range | 1,101-1,200 |
| Service Factor | 1.15 |
| Shaft Dia. | 1 3/8 in |
| Shaft Length | 3 3/8 in |
| Ship Weight | 115 lbs. |
| Speed (RPM) | 1175 |
| Standards | CE, CSA, UL |
| Voltage | 190V, 230V, 380V, 460V,. |
| Voltage (AC) | 208-230 VAC, 460 VAC |
| Voltage Compatibility | 200-230/440V AC, 200-23. |
| Volts | 208, 230, 460 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Global Industrial | WBB466249 | 781.0 | 1 | 3 | 17 | US Motors | | 781.0 @ 3 |
 | emotorpro.com | U3P3D | 816.5 | 1 | 3 | | U.S. Motors | 115.0 | 816.5 @ 3 |
 | National Supply Network | B466249 | 828.33 | 1 | 3 | | US MOTORS | | 828.33 @ 3 |
 | Zoro | G4607346 | 856.49 | 1 | 3 | | U.S. Motors | 106.0 | 856.49 @ 3 |
 | motorsandcontrol.com | U3P3D | 860.67 | 1 | 3 | | US Motors (Nidec) | 126.38 | 860.67 @ 3 |
 | Galco | U3P3D-USM | 860.68 | 1 | 3 | | US Motors | 114.89 | 860.68 @ 3 |
 | sustainablesupply.com | C1549359 | 897.26 | 1 | 3 | | US Motors | 106.0 | 897.26 @ 3 |
