Walter Tools CCMT120412-PM WPP20

B017BJBP1U

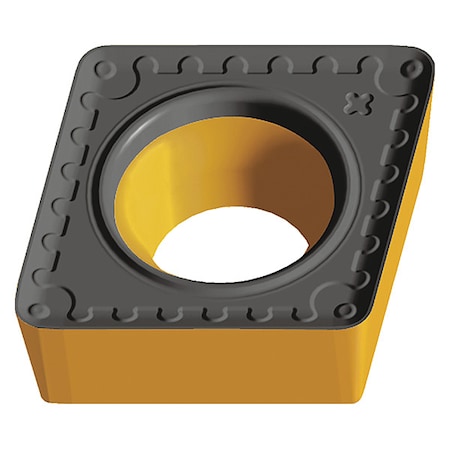

Walter Tools CCMT120412-PM WPP20 Carbide Tiger-Tec Positive Indexable Turning Insert, 3/64" Corner Radius, 1/2" IC, 3/16" Thick, 0.028" - 0.157" Depth of Cut (Pack of 10)

Walter Tools CCMT120412-PM WPP20 Carbide Tiger-Tec Positive Indexable Turning Insert, 3/64" Corner Radius, 1/2" IC, 3/16" Thick, 0.028" - 0.157" Depth of Cut (Pack of 10)zoom

Attributes

Key Value
ANSI CodeCCMT433-PM WPP20
ANSI NumberCCMT433-PM
Cast Iron (K) Compatibi.No
Chip-BreakerYes
Chip-Breaker CodePM
Clearance Angle7 Degrees
CoatingCVD
Corner Radius3
Country of Origin (subj.Germany
Cutting ApplicationTurning
Cutting DirectionNeutral
Cutting Edge Length12.90mm
Depth of Cut0.70 to 4.00mm
Finish - MachiningTiCN+Al2O3+TiN
For Use WithToolholders and Boring .
GradeWPP20
Hardened (H) Compatibil.No
Included Angle80 Degrees
Inscribed Circle4
Insert ApplicationMedium
Insert CodeCCMT433
Insert Holding Type40 Degrees to 60 Degre.
Insert MaterialCarbide
Insert ShapeDiamond
Insert Size433
Insert StyleCCMT
Insert Thickness0.1875"
ISO NumberCCMT120412-PM WPP20
ItemDiamond Turning Insert
Manufacturer GradeWPP20
MaterialCarbide
Material - MachiningCarbide
Measurement SystemFractional Inch
Mounting StyleScrew Held
No. of Edges2
Non Ferrous (N) Compati.No
Nose Radius0.047"
Number of Cutting Edges2
Primary Material Applic.Steel
Primary Material Applic.P
RakePositive
Relief Angle7 Degrees
ShapeRhombic
Stainless (M) Compatibi.No
Steel (P) CompatibilityYes
Super Alloy (S) Compati.No
Thickness3
Wiper InsertYes
Workpiece CompatibilitySteel (P)

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG826112718.161010Walter Valenite0.2218.16 @ 10
