Worldwide Electric HdRF175-50/1-L-56C

B00KC4HK2U

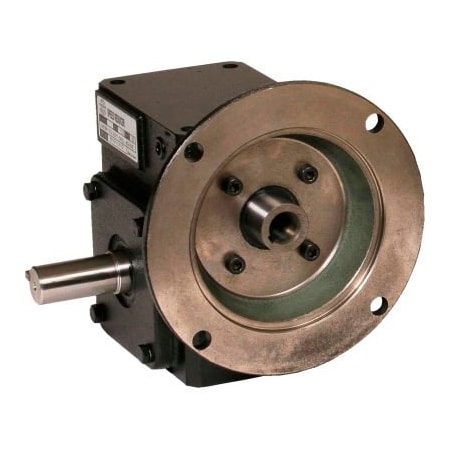

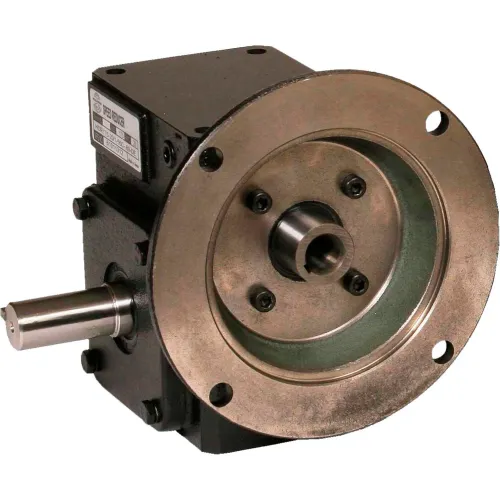

Worldwide Electric HdRF175-50/1-L-56C Worm Gear Reducers, Left Hand Output, 50:1 Ratio, 35 Output RPM, 56C Frame, 1.75" WCD Center

Worldwide Electric HdRF175-50/1-L-56C Worm Gear Reducers, Left Hand Output, 50:1 Ratio, 35 Output RPM, 56C Frame, 1.75" WCD Centerzoom

Attributes

Key Value
Box size175
Box Size175
Center Distance1.75, 1.75 "
ClassificationRight Angle Worm
Country of Origin (subj.Taiwan, Province of Chi.
Description:Worm Gear Reducer - 50:.
Family SeriesWorldwide Electric Corp.
Frame56C
Gearbox TypeWorm
Gross Weight0 lbs
Input Bore Size0.625 "
Input TypeFlange
Input typeFlange input
Item ConditionFactory New
Item NumberHdRF175-50/1-L-56C
ManufacturerWorldwide, Worldwide El.
Manufacturer Part NumberHdRF175-50/1-L-56C
MaterialCast Iron
MAX HP0.5
Max Input HP (@ 1750 RP.0.5 hp
Max Output Torque575
Max OverHung Load (OHL)575
MFG Part #:HdRF175-50/1-L-56C
Motor Frame SizeNEMA 56C
NEMA Motor frame56C
Net Weight0 lbs
Nominal Torque (in-lbs)575 in-lbs
Nominall Ratio50:1
OHL650
Output RPM at 1800 RPM .35
Output Shaft Diameter0.875 "
Output Shaft TypeLeft Handed Shaft
Output Speed (RPM)35 RPM
Output typeLeft hand
Output TypeLeft Hand Shaft
Product SeriesHDR
Ratio1, 50:1
RPM35
Stages1
Supplier:Worldwide Electric Corp.
Warranty lengthOne year
WCD center1.76 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomNational Supply NetworkB1856401241.741In StockWorldwide Electric Corporation241.74 @ 1
thumbzoomGlobal IndustrialWBB1856401264.951In StockWorldwide Electric Corporation264.95 @ 1
thumbzoomDealers ElectricHDRF175-50/1-L-56C266.931In StockWorldwide27.0266.93 @ 1
thumbzoomMRO Supply1848437271.71In StockWorldWide Electric271.7 @ 1
thumbzoomGalcoHDRF175-50/1-L-56C-WWEC283.871In StockWorldwide Electric Corporation283.87 @ 1
kscdirect.comWWE HDRF175-50/1-L-56C302.581In StockWorldwide Electric Corporation302.58 @ 1
thumbzoomZoroG604902394457.251In StockWorldwide Electric457.25 @ 1
