3M MVU14-10RK

mpnMVU14-10RK
brandname: 3-M
manufacturername: 3-M

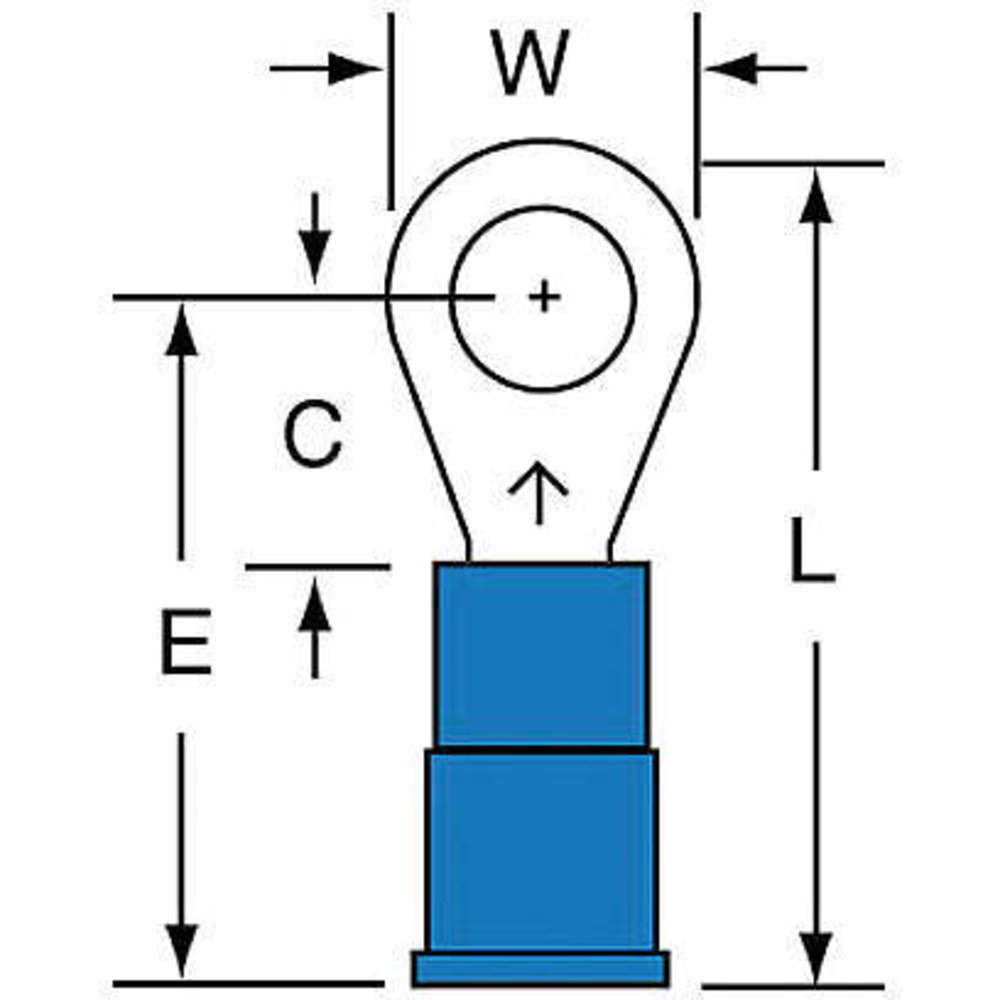

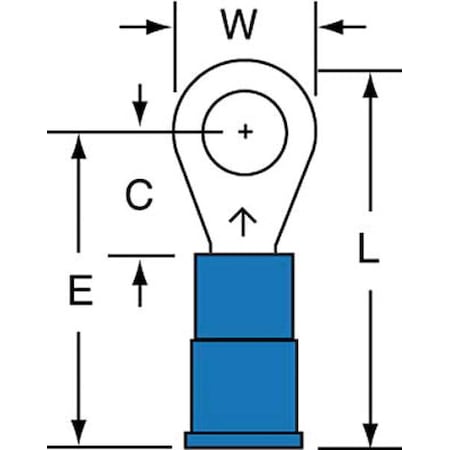

3M MVU14-10RK Ring Term,Vinyl,#10,0.900 in,PK1000

3M MVU14-10RK Ring Term,Vinyl,#10,0.900 in,PK1000

zoom

Brand: 3M
PartNumber: MVU14-10RK
Model: MVU14 10RK
Color: Blue
PackageQuantity: 1
Binding: Misc.
Manufacturer: 3M
Label: 3M

Attributes

Key	Value
3M Number	MVU14-10RK
Allowable Gauge Range	16 - 14
Alternate Part No.	517-MVU14-10RK
Base Product Number	MVU14
Brand	3M Electronic Specialty.
Category	Electrical Insulating T.
Clearance	0.29 in
Color	Blue
Connection Material	Copper
Connection Type	Crimp
Contact Finish	Tin
Contact Material	Copper, ETP
Country of Origin	USA
Country of Origin (subj.	United States
Features	-
Inside Diameter	0.07 in
Insulation	Insulated
Insulation Color	Blue
Insulation Diameter	0.170" (4.32mm)
Insulation Length	0.74 in
Insulation Material	Vinyl
Insulation Type	Vinyl
Item	Ring Terminal
Length - Overall	0.900" (22.86mm)
Manufacturer	3M
Manufacturer Part No.	MVU14-10RK
Material	Vinyl, Electrolytic (ET.
Material - Insulation	Vinyl
Max. Temp.	221 Degrees F
Max. Voltage	600 V
Maximum Voltage	600 V
Mfr	3M
Minimum Conductor Leg D.	16 AWG
Mounting Type	Free Hanging (In-Line)
Overall Length	0.9 in
Overall Width	0.33 in
Package	Bulk
Package Quantity	1000 per case
Part # Aliases	05400701452 80610041016
Part Status	Active
Product	Ring Terminals
Product Category	Terminals
Ring Width	0.33 in
Seam	Butted
Series	Scotchlok?
Standards	CSA Certified, UL Listed
Stud Size	#10
Stud/Tab Size	10 Stud, 10
Terminal Connection	Crimp
Terminal Type	Standard, Circular
Termination	Crimp
Thickness	0.030" (0.76mm)
Tongue Width - Wire Con.	0.33 in
Trade Name	Scotchlok
Type	Vinyl Insulated, Ring T.
Unit Weight	1.064 kg
UNSPSC	31201502
UPC	054007014522
Volts AC	600
Width - Outer Edges	0.330" (8.38mm)
Wire Gauge	16-14, 14-16 AWG
Wire Range	16 to 14 AWG

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Hotenda	H1655865	0.26872	1	1000		3M		0.26872 @ 1000
	Heilind Electronics	MVU14-10RK	0.29582	1	1000		3M		0.29582 @ 1000
	Digi-Key	31201	0.30347	2500	4420		3M		0.30347 @ 1000
	turtle.com	MMM MVU14-10RK	0.31	1	1000		3M		0.31 @ 1000
	Platt.com	0063549	0.37	1	2000		3M		0.37 @ 1000
	Newark	17M9580	0.377	1000	1000		3M		0.377 @ 1000
	swatee.com	MVU14-10RK	0.61	1	1000		3M		0.61 @ 1000
	Zoro	G5696293	197.05	1	1000	26	3M	2.3	197.05 @ 1000
	Grainger	2GAJ1	240.0	1	1000		3M		240.0 @ 1000
	rshughes.com	054007-01452	250.0	1000	1000		3M		250.0 @ 1000
	gordonelectricsupply.com	MVU14-10RK	259.0	1	1000	455	3-M		259.0 @ 1000
	Dale-Electric	MVU14-10RK	285.74	1	1000		3M		285.74 @ 1000
	Raptor Supplies	AB9XQJ	366.379065	1	1000		3M		366.379065 @ 1000
	electricalparts.com	MVU14-10RK	414.4	1	1000		3M		414.4 @ 1000
