Burndy K2C26

B00BKAEYO2

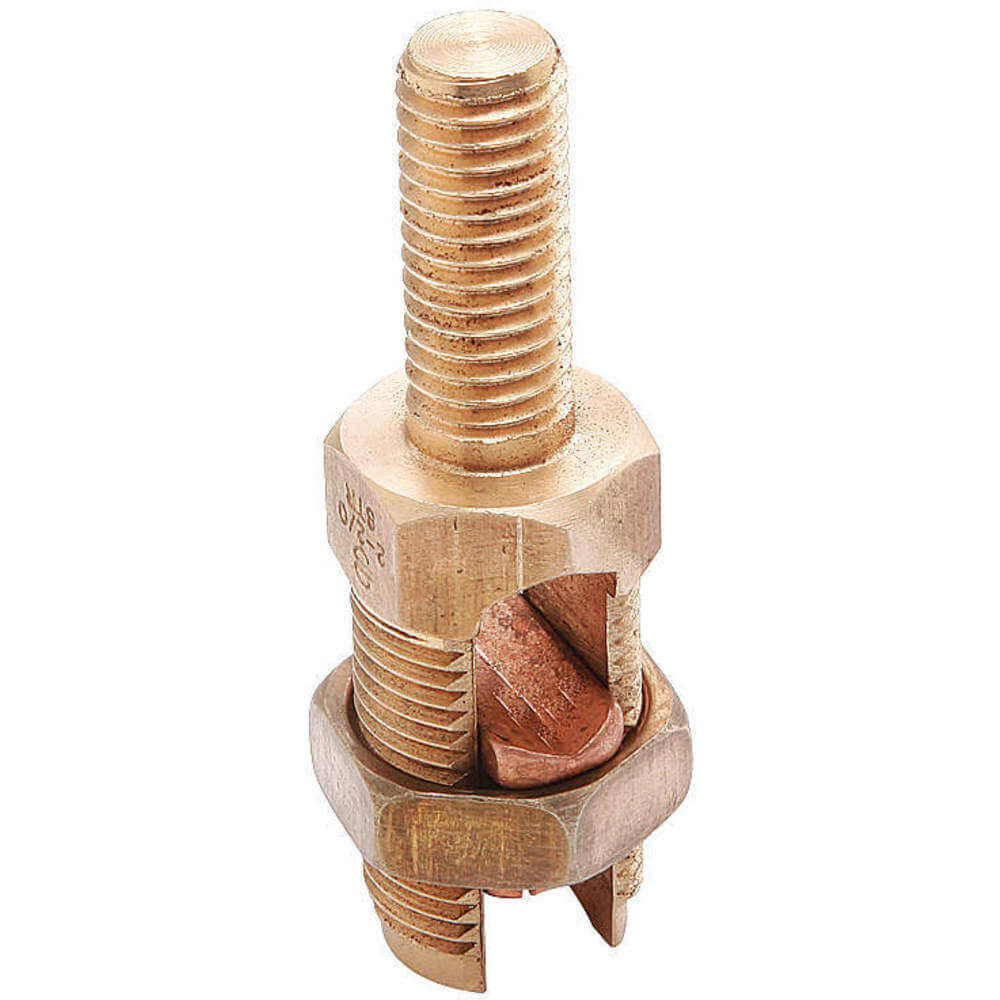

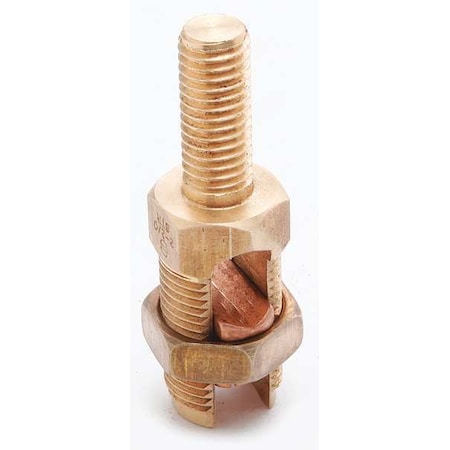

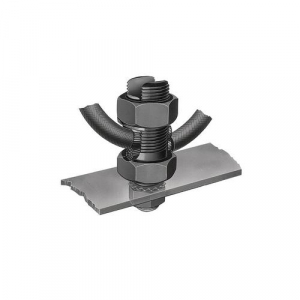

BURNDY K2C26 Bronze Alloy, Mechanical GROUNDING Connector, 3/4 INCH Split Bolt, Cable to Flat

BURNDY K2C26 Bronze Alloy, Mechanical GROUNDING Connector, 3/4 INCH Split Bolt, Cable to Flatzoom

Attributes

Key Value
ApplicationFor Direct Burial Appli.
ApprovalsUL
Certification - UL List.Yes
Conductor - Copper Soli.2 AWG;1 AWG;1/0 AWG;2/0.
Conductor - Copper Soli.2 AWG-3/0 AWG
Conductor - Copper Str .2 AWG;1 AWG;1/0 ;2/0 AWG
Conductor - Copper Str .2/0 AWG - 2 AWG
Conductor Size2 to 2/0 AWG STR
Conductor Size Range2-3/0 AWG
Conductor TypeRun
Connector MaterialLeaded Bronze Alloy
Connector TypeMechanical
Country of OriginUS - United States
Dimension - B Length fr.17/32 in
Dimension - B Length in.0.52 in
Dimension - Body Width .0.88 in
Dimension - Bolt Size f.44928
Dimension - D inch0.75 in
Dimension - Height frac.39450
Dimension - Height inch1.81 in
Dimension - L Length Ov.67 mm
Dimension - Length Over.2.62 in
Dimension - Nut Width i.1.04 in
Dimension - P inch0.44 in
Dimension - Threads per.13
Dimension - Width inch46 mm
Direct BurialYes
ECCNEAR99
Family SeriesBurndy Grounding
For Use WithBusbar, Steel Structure.
Gross Weight0.0194 lbs
Grounding Wire Size2 to 2/0 AWG STR, 2 to .
Industry Standard(s)UL467
Installation Torque480 in-lb
ItemGrounding Split Bolt Co.
Item - Grounding Connec.Grounding Split Bolt Co.
Item NumberK2C26
Length - Grounding Stud17/32 in
ManufacturerBurndy
Manufacturer Part NumberK2C26
MaterialBronze
Material - Grounding Co.Leaded Bronze Alloy
Material of ConstructionLeaded Bronze Alloy
Max Conductor Size3/0 AWG
Min Conductor Size2 AWG
Net Weight0 lbs
Number of Conductors2
Number of Wires - Groun.1
Overall Length2 5/8 in
Overall Width7/8 in
Physical Attribute - Nu.2
Plating TypeUnplated
RoHSYes
SeriesK2C, KC
StandardsUL Listed, UL Listed-Di.
Standards - Industry St.UL467
Stud Installation Torqu.480 LBS/in
Stud Length17/32"
Stud Size1/2-13
Thread Size1/2"-13
Thread Size - Grounding.1/2 in 13
TypeKC and K2C Series
Type - Grounding Connec.Mechanical
UL ListedYes
UNSPSC39121408
UPC Code781810257401
Wire Size - Grounding2 to 1/0 AWG Stranded, .

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
steinerelectric.com59832239.981In StockBURNDY39.98 @ 1
thumbzoomKelly HayesK2C2667.3911072Burndy67.39 @ 1
AmazonB00BKAEYO277.111In StockBurndy77.11 @ 1
thumbzoomZoroG468526578.39116Burndy0.378.39 @ 1
Graybar8804756084.92961In StockBurndy84.9296 @ 1
thumbzoomMegadepotK2C26100.91In StockBurndy100.9 @ 1
thumbzoomusmegastore.comK2C26100.91In StockBurndy100.9 @ 1
thumbzoomgordonelectricsupply.comK2C26124.431In StockBURNDY124.43 @ 1
thumbzoomGalcoK2C26-BURN146.721In StockBurndy0.0194146.72 @ 1
us.rs-online.com71486418161.4714BURNDY161.47 @ 1
thumbzoomUnited Electric707584178.01In StockBURNDY178.0 @ 1
thumbzoomRaptor SuppliesAB6QZP208.8774091In StockBURNDY208.877409 @ 1
kirbyrisk.com539337218.31127Burndy218.31 @ 1
