- mpnC40811
- brandname: Cleveland
- manufacturername: Cleveland

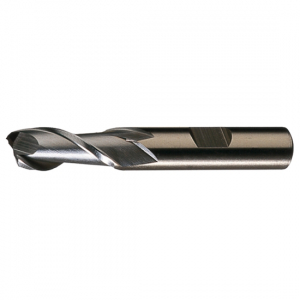

Cleveland C40811 1/4 X 3/8 Tin Ctd Co Pm Sem 2fl
- Brand: Cleveland Twist Drill
- PartNumber: C40811
- Manufacturer: Cleveland
- Label: Cleveland
Attributes
| Key | Value |
|---|
| Cast Iron (K) Compatibi. | No |
| Center Cutting: | Yes |
| Chip-Breaker | No |
| Construction: | High Performance Finish. |
| Corner Radius | 0.000 in |
| Country of Origin (subj. | United States |
| Cutter Diameter | 1/4 in |
| Cutting Direction | Right Hand |
| Cutting Direction - Mac. | Right Hand |
| Decimal Equivalent: | 0.2500"/6.35mm |
| Diameter Fractional: | 1/4" |
| Dimension Type | Fractional Inch |
| Double Ended: | No |
| Drilling Tool Configura. | Individual |
| End Mill Application | Finishing |
| End Mill Cutting Type | Center Cutting |
| End Mill Material | Powdered Metal |
| End Mill Style | Square |
| End Style: | Square |
| Finish | TiN, TiN Coated |
| Finish - Machining | TiN |
| Flute Type | Spiral |
| Grade | Heavy Duty |
| Hand of Spiral Cut: | RHS / RHC |
| Hardened (H) Compatibil. | No |
| Helix Angle | 37 deg, 37 Degrees |
| Item | Square End Mill |
| Length of Cut | 5/8 in |
| Length of Cut: | 0.6250"/ 15.88mm |
| List Number | PM-2-TN |
| List Style: | PM-2 |
| Material | HSS-E (PM), PM HSS-E |
| Material - Machining | Powdered Metal |
| Material Grade - Machin. | Heavy Duty |
| Material: | Powdered Metal |
| Measurement System | Fractional Inch |
| Milling Dia. | 1/4 in |
| Milling Diameter | 1/4" |
| Neck Dia. | Not Applicable |
| Neck Length | Not Applicable |
| Non Ferrous (N) Compati. | Yes |
| Number of Flutes | 2 |
| Number of Flutes: | 2 |
| Overall Length | 2-7/16 in, 2 7/16 in |
| Overall Length: | 2.4375"/61.91mm |
| Primary Material Applic. | All Materials |
| Primary Material Applic. | H, K, M, N, P, S |
| Series | PM-2 |
| Shank Dia. | 3/8 in |
| Shank Diameter | 3/8 in |
| Shank Diameter: | 0.3750"/9.52mm |
| Shank Type | Straight/Weldon Flat, W. |
| Shank Type - Machining | Weldon Flat |
| Shank: | Straight w/ Weldon Flats |
| Single End/Double End | Single End |
| Stainless (M) Compatibi. | Yes |
| Steel (P) Compatibility | Yes |
| Style | PM-2-TN |
| Super Alloy (S) Compati. | Yes |
| Surface Condition | TiN |
| Surface Condition: | TiN |
| Tool Size | 1/4" x 3/8" x 5/8" x 2-. |
| Type | Center Cutting Single E. |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | MRO Supply | 6116565 | 28.46 | 2 | In Stock | | Cleveland | | 28.46 @ 2 |
 | Zoro | G2975143 | 30.09 | 1 | In Stock | 8 | Cleveland | 0.07 | 30.09 @ 1 |
 | usmegastore.com | C40811 | 31.4 | 1 | In Stock | | Cleveland | | 31.4 @ 1 |
 | sustainablesupply.com | C2769820 | 48.18 | 1 | In Stock | | Cleveland | 0.06 | 48.18 @ 1 |
