CLEVELAND C70169

mpnC70169
brandname: CLEVELAND
manufacturername: CLEVELAND

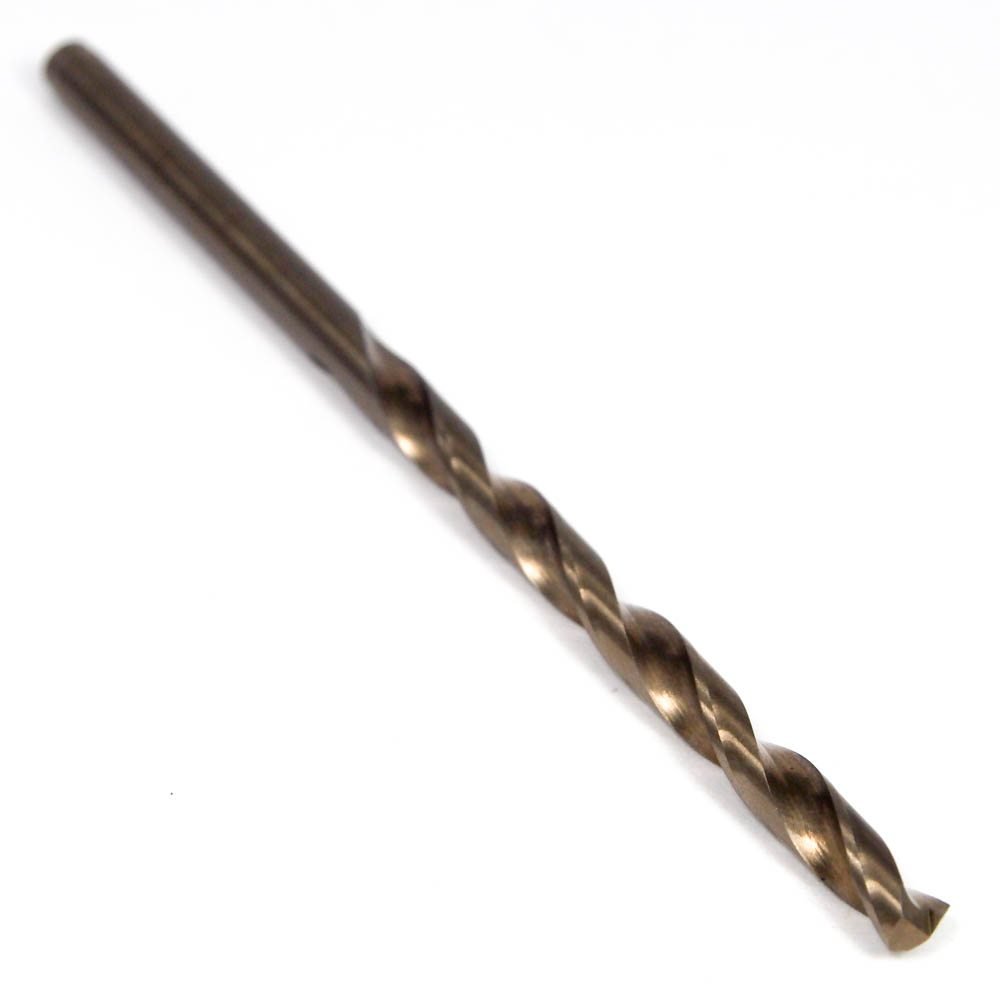

Cleveland Twist #36 Dia. 2-1/2" OAL Cobalt Jobber Length Drill

Cleveland Twist #36 Dia. 2-1/2" OAL Cobalt Jobber Length Drill

zoom

Brand: CLEVELAND
PartNumber: C70169
Model: C70169
Manufacturer: Cleveland Twist Drill
Label: Cleveland Twist Drill

Attributes

Key	Value
Construction	NAS 907 TYPE J
Coolant Fed	Non-Coolant Through
Cutting Depth	1-7/16 in
Cutting Direction	Right Hand
Cutting Edge Material	M42 HSS-Co 8%
Decimal Equivalent	0.1065, 0.1065" / 2.71mm
Depth x Dia. Ratio	4xD
Depth:Dia. Ratio	4xD
Diameter Wire	36
Drill Bit Dimension Type	Wire
Drill Bit Finish	Straw/Bronze
Drill Bit Grouping	Drill Bit
Drill Bit Material	Cobalt
Drill Bit Point Angle	135 Degrees
Drill Bit Size	#36
Drill Diameter Measurem.	Imperial
Drill Diameter Tolerance	+0.0000 in/-0.0005 in
Drill Length Class	Jobber Length
Drill Point Length	0.0221 in
Drill Size - Decimal In.	0.1065 in
Drill Size - Wire	#36
Finish	Straw Oxide
Flute Length	1 7/16 in, 1-7/16 in
Flute Type	Right Spiral, Spiral
Hand of Spiral Cut	RHS / RHC
Item	Jobber Length Drill Bit
Length of Flute	1.4375" / 36.51mm
List Style	2213
Material	M42 HSS-Co 8%, HSS-CO 8.
Maximum Drilling Depth	1 1/16 in
Number of Flutes	2
Number of Pieces	12
Overall Length	2.5000" / 63.50mm, 2-1/.
Point	135? Split
Point Angle	135 deg
Point Type	Split
Series	2213
Shank	Straight
Shank Dia.	3/32 in
Shank Length	1 1/16 in
Shank Size	0.106 in Dia x 1.0625 i.
Shank Type	Straight
Style	2213
Surface Condition	Straw, Straw / Gold Oxi.
Through Coolant (Yes/No)	No
Tool Size	#36
Type	General Purpose Heavy D.

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	MRO Supply	6112514	2.06	17	12		Cleveland		2.06 @ 17
	Megadepot	C70169	2.17	1	12		Cleveland		2.17 @ 12
	usmegastore.com	C70169	2.61	1	12		Cleveland		2.61 @ 12
	sustainablesupply.com	C2765758	2.87	1	12		Cleveland		2.87 @ 12
	Zoro	G2842703	3.0	1	154		Cleveland	0.08	3.0 @ 12
	Guardian	74331349	4.36	1	12		Cleveland		4.36 @ 12
	National Supply Network	74331349	4.4025	12	12		Cleveland		4.4025 @ 12
	AmazonSC	B01BH7GTMW	8.0	1	12		Cleveland		8.0 @ 12
