Dayton 1L511

mpn1L511
brandname: DAYTON
manufacturername: DAYTON

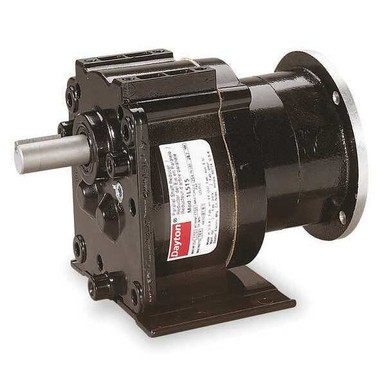

Speed Reducer, C-Face, 42CZ/48, 19.1:1

Speed Reducer, C-Face, 42CZ/48, 19.1:1

zoom

Brand: Dayton
PartNumber: 1L511
Model: 1L511
Manufacturer: DAYTON
Label: DAYTON

Attributes

Key	Value
Base	Removable
Bearings	Ball
Bore Dia.	1/2"
Brand	Dayton
Current Stock	3
Dimension A	3.344 in
Dimension B	2.625 in
Dimension C	4.97 in
Dimension D	0.22 in
Finish	Gloss Black Powder Coat.
Frame	42CZ/48
Gear Type	Helical First Stage
Gearing	Helical First Stage
Housing	Die Cast Aluminum Gearc.
Housing Material	Die Cast Aluminum
Input RPM	1725 RPM, 1725
International Shipping	No
Item	Speed Reducer
Lead Time	Expected to ship in 1-2.
Lubrication	Heavy Duty Oil
Max. Input HP	1/3, 0.3333 hp
Max. Output Torque	226.00 in.-lb., 226.0 i.
Max. Torque (In.-Lbs.)	226
Mounting	All Position, Any Posit.
Mpn	1L511
NEMA/IEC Frame	42CZ/48C-Face
Nominal Output RPM	92
Nominal Ratio	19.1:1
Number of Stages	2
Oil Seal	Spring-Loaded Lip
Output Shaft Dia.	5/8 in
Output Shaft Dia. (In.)	5/8
Output Shaft Diameter	5/8 in
Output Shaft Height	3 11/32 in
Output Shaft Height (In.	3.34
Output Torque @ 1/3 HP	226 in-lb
Output Torque @ 1/3 HP .	226
Output Torque @ 1/4 HP	160 in-lb
Output Torque @ 1/4 HP .	160
Output Torque @ 1/6 HP	110 in-lbs
Output Torque @ 1/6 HP .	110
Output Torque @ 1/8 HP	80 in-lb, 80 in-lbs
Output Torque @ 1/8 HP .	80
Overall Height	4.75 in
Overall Length	5.38 in
Overall Width	4.06 in
Overhung Load	175 lb.
Overhung Load (Lb.)	175
Pinion	Heat Treated Steel
Pinion Material	Hardened Steel
Seal Type	Spring Loaded Lip
Shaft Orientation	Parallel
Ship Weight	7 lbs.
SKU	ZO-G1806655
Speed Reducer Type	C-Face
SubCategory	Power Transmission
Type	C-Face
UPC	190735142448

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Zoro	G1806655	378.99	1	11		Dayton	6.45	378.99 @ 1
	simsupply.com	ZO-G1806655	455.69	1	3		Dayton		455.69 @ 1
	sustainablesupply.com	C2878282	479.69	1	In Stock		Dayton	6.45	479.69 @ 1
	grainger.ca	WWG1L511	491.34888782	1	In Stock		DAYTON	6.45	491.34888782 @ 1
	Raptor Supplies	AB2CAM	623.1796155	1	In Stock		DAYTON		623.1796155 @ 1
	emotorpro.com	1L511	722.76	1	In Stock		Dayton	7.0	722.76 @ 1
