Dayton 1L512

B000LEWG9I

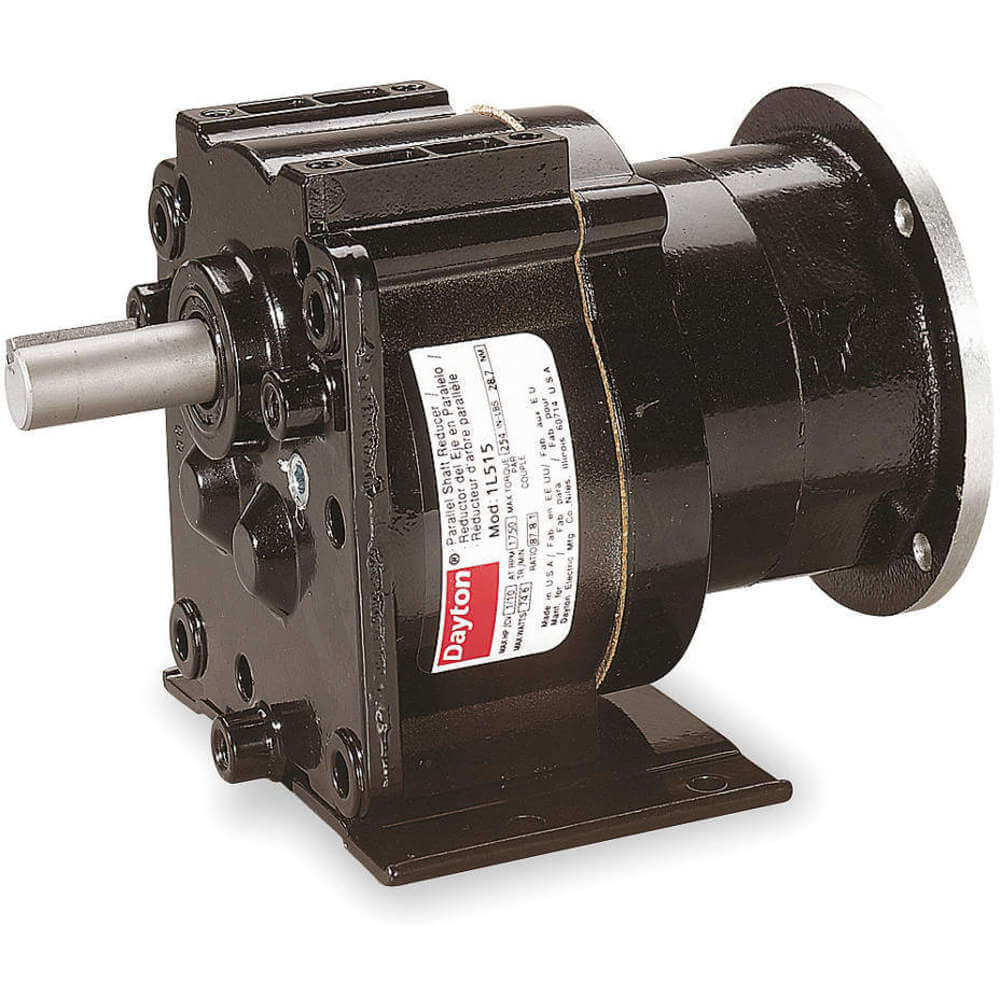

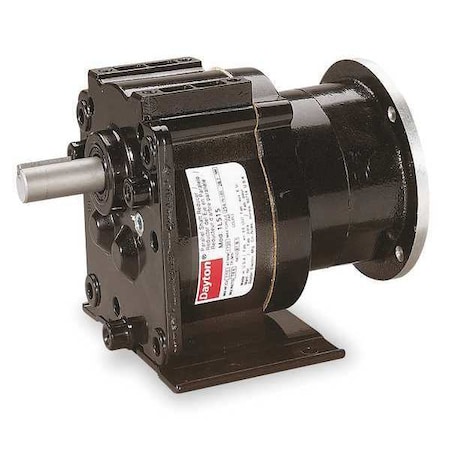

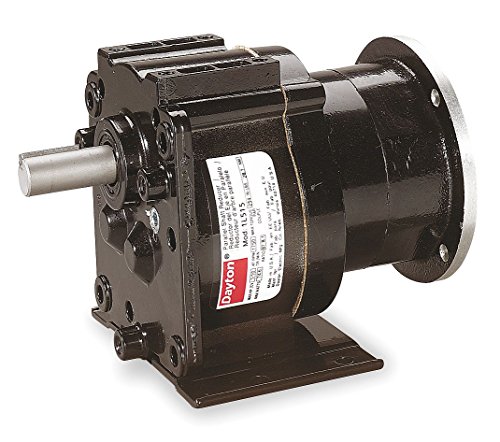

Dayton 1L512 Reducer,Speed,77 RPM - 1L512

Dayton 1L512 Reducer,Speed,77 RPM - 1L512zoom

Attributes

Key Value
BaseRemovable
BearingsBall
Bore Dia.1/2"
Country of Origin (subj.United States
Dimension A3.344 in
Dimension B2.625 in
Dimension C4.953 in
Dimension D0.203 in
FinishGloss Black Powder Coat.
Frame42CZ/48
Gear TypeHelical First Stage
GearingHelical First Stage
HousingDie Cast Aluminum Gearc.
Housing MaterialDie Cast Aluminum
Input RPM1725 rpm, 1725
ItemSpeed Reducer
LubricationHeavy Duty Oil
Max. Input HP0.25 hp, 1/4
Max. Output Torque184 in-lb
Max. Torque (In.-Lbs.)184
MountingAll Position, Any Posit.
NEMA/IEC Frame42CZ/48C-Face
Nominal Output rpm77 RPM
Nominal Output RPM77, 77 RPM
Nominal Ratio22.7:1
Number of Stages2
Oil SealSpring-Loaded Lip
Output Shaft Dia.5/8 in
Output Shaft Dia. (In.)5/8
Output Shaft Height3 11/32 in
Output Shaft Height (In.3.34
Output Torque @ 1/4 HP184 in-lb
Output Torque @ 1/4 HP .184
Output Torque @ 1/6 HP125 in-lb
Output Torque @ 1/6 HP .125
Output Torque @ 1/8 HP95 in-lb
Output Torque @ 1/8 HP .95
Overhung Load175 lb
Overhung Load (Lb.)175
PinionHeat Treated Steel
Pinion MaterialHardened Steel
Rotation-
Seal TypeSpring Loaded Lip
Shaft OrientationParallel
Ship Weight5 lbs.
Speed Reducer TypeC-Face
TypeC-Face

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG2260903388.171In StockDayton5.0388.17 @ 1
thumbzoomsustainablesupply.comC2878370479.741In StockDayton5.0479.74 @ 1
thumbzoomRaptor SuppliesAB2CAN630.19657351In StockDAYTON630.1965735 @ 1
thumbzoomemotorpro.com1L512722.761In StockDayton5.0722.76 @ 1
