Dayton 1L513

B000CD75X0

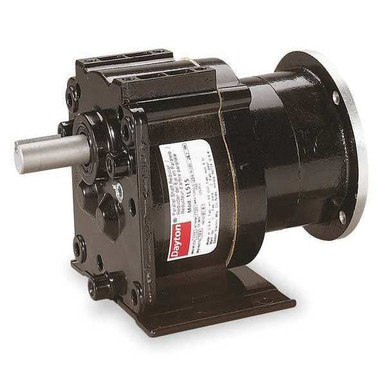

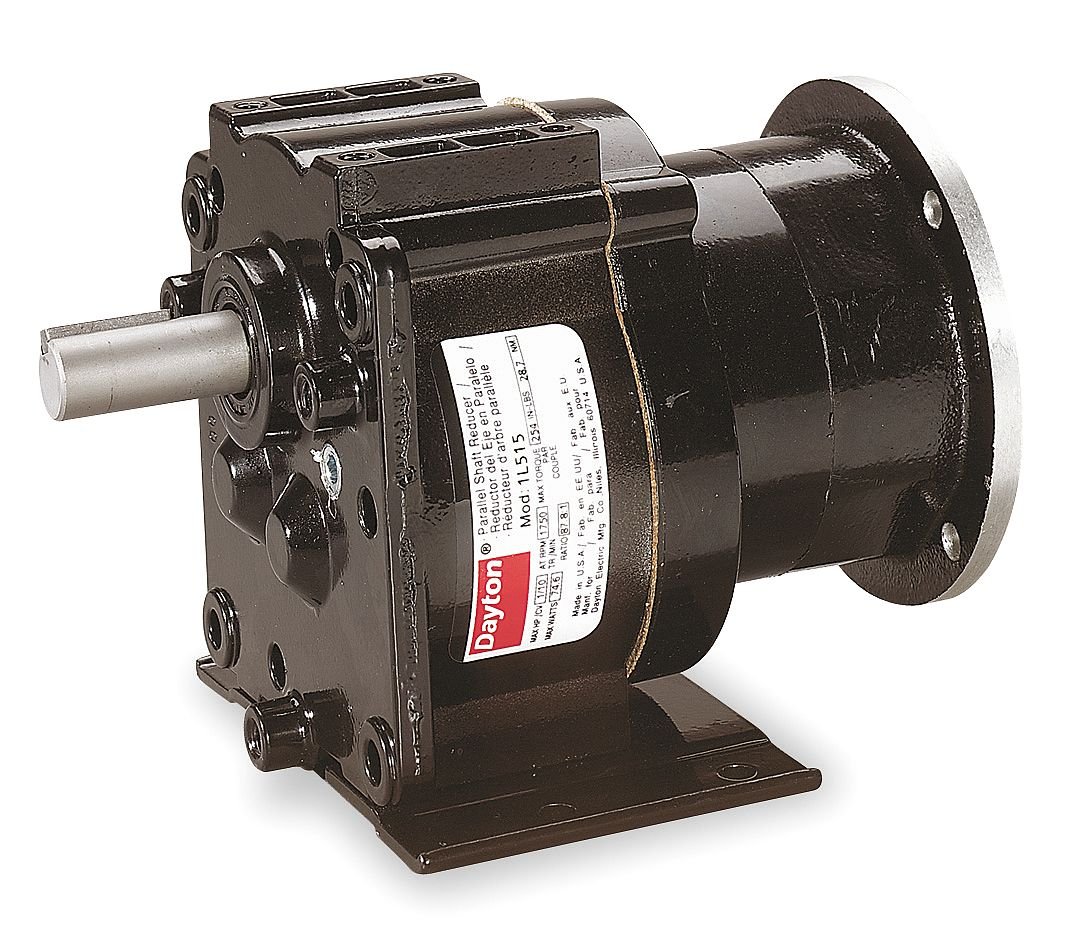

Speed Reducer, C-Face, 42Cz/48, 28.1:1

Speed Reducer, C-Face, 42Cz/48, 28.1:1zoom

Attributes

Key Value
BaseRemovable
BearingsBall
Bore Dia.1/2"
BrandDayton
Current Stock3
Dimension A3.344 in
Dimension B2.625 in
Dimension C4.953 in
Dimension D0.203 in
FinishGloss Black Powder Coat.
Frame42CZ/48
Gear TypeHelical First Stage
GearingHelical First Stage
HousingDie Cast Aluminum Gearc.
Housing MaterialDie Cast Aluminum
Input RPM1725 rpm, 1725
International ShippingNo
ItemSpeed Reducer
Lead TimeExpected to ship in 1-2.
LubricationHeavy Duty Oil
Max. Input HP1/4
Max. Output Torque240.00 in.-lb.
Max. Torque (In.-Lbs.)240
MountingAll Position
Mpn1L513
NEMA/IEC Frame42CZ/48C-Face
Nominal Output RPM62 RPM, 62
Nominal Ratio28.1:1
Number of Stages2
Oil SealSpring-Loaded Lip
Output Shaft Dia.5/8 in
Output Shaft Dia. (In.)5/8
Output Shaft Diameter5/8 in
Output Shaft Height3 11/32 in
Output Shaft Height (In.3.34
Output Torque @ 1/4 HP240 in-lb
Output Torque @ 1/4 HP .240
Output Torque @ 1/6 HP160 in-lbs
Output Torque @ 1/6 HP .160
Output Torque @ 1/8 HP120 in-lbs, 120 in-lb
Output Torque @ 1/8 HP .120
Overall Height4.75 in
Overall Length5.38 in
Overall Width4.06 in
Overhung Load175 lb, 175 lb.
Overhung Load (Lb.)175
PinionHeat Treated Steel
Pinion MaterialHardened Steel
Seal TypeSpring Loaded Lip
Shaft OrientationParallel
Ship Weight7 lbs.
SKUZO-G2867322
Speed Reducer TypeC-Face
SubCategoryPower Transmission
TypeC-Face
UPC190735142462

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG2867322397.991In StockDayton6.9397.99 @ 1
thumbzoomsimsupply.comZO-G2867322482.913Dayton482.9 @ 1
thumbzoomAmazonSCB000CD75X0490.221In StockDayton490.22 @ 1
AmazonTPB000CD75X0494.941In Stock5Dayton494.94 @ 1
grainger.caWWG1L513626.668158461In StockDAYTON6.9626.66815846 @ 1
thumbzoomRaptor SuppliesAB2CAP653.97378151In StockDAYTON653.9737815 @ 1
emotorpro.com1L513722.761In StockDayton7.0722.76 @ 1
