CAI - DAYTON 4M090

mpn4M090
brandname: DAYTON
manufacturername: DAYTON

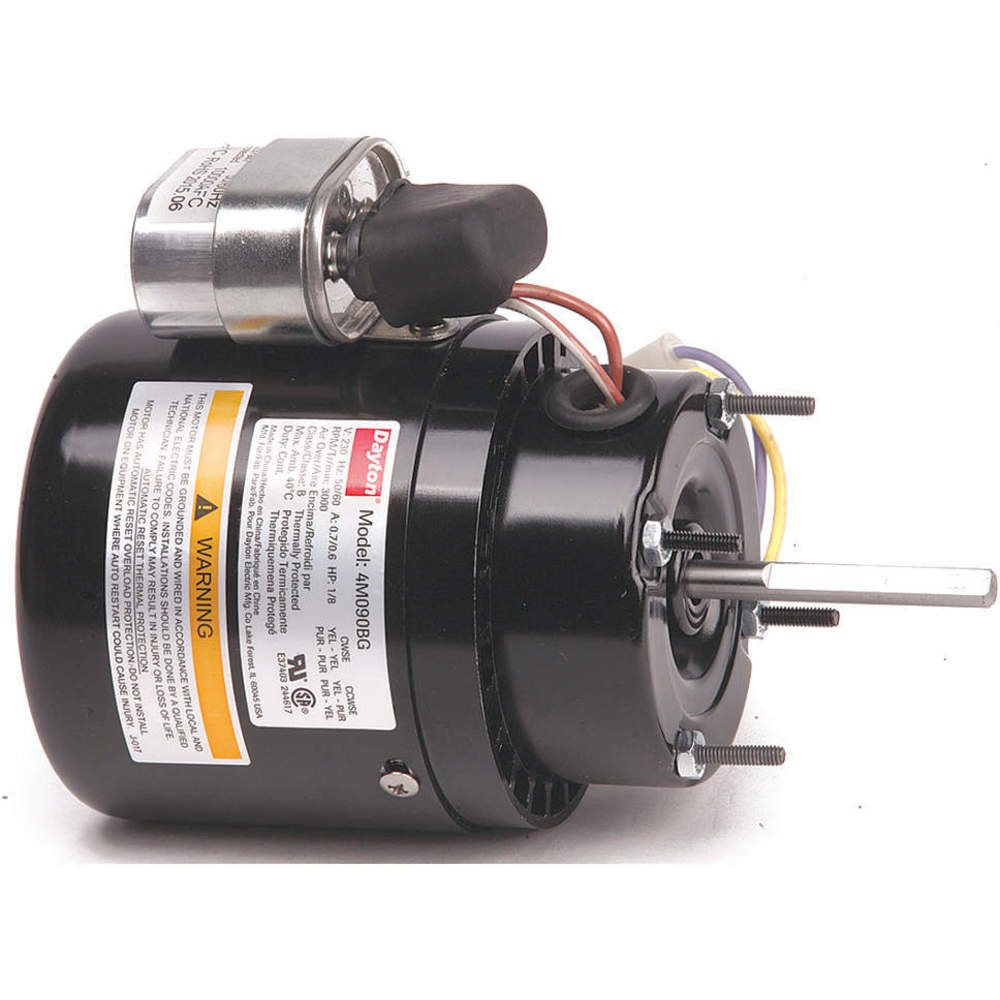

HVAC Motor, 1/8 HP, 3000 RPM, 230V, 3.3

HVAC Motor, 1/8 HP, 3000 RPM, 230V, 3.3

zoom

Brand: CAI - DAYTON
PartNumber: 4M090
Model: 4M090
PackageQuantity: 1
Binding: Misc.
Manufacturer: CAI - DAYTON
Label: CAI - DAYTON

Attributes

Key	Value
Amps	0.6
Bearings	Ball
Body Dia.	4"
Capacitor	Included
Capacitor Required	Yes
Cord Length	12"
Duty Cycle	Continuous
Enclosure Type	TEFC (Totally Enclosed .
Frame	3.3, 3-3/8"
Full Load Amps	0.6
HP	1/8
Hz	50/60, 60/50
Ins. Class	B
Insulation Class	B
Item	HVAC Motor
Length Less Shaft	5-3/16"
Max. Ambient Temp.	40 Degrees C
Maximum Ambient Tempera.	40? C
Motor Application	HVAC/R
Motor Bearings	Sleeve
Motor Design	Permanent Split Capacit.
Motor Diameter	3-3/8"
Motor Enclosure Design	Totally Enclosed Fan-Co.
Motor Mounting Position	All Angle
Motor Mounting Type	Stud
Motor Service Factor	1.00
Motor Shaft Design	Flat
Motor Shaft Rotation	CW/CCW
Motor Shell Length	5-3/16"
Motor Sub Application	Direct Drive Fan/Blower
Motor Thermal Protection	Auto
Mounting	Stud
Mounting Stud Location	4/Shaft End
Mounting Stud Pattern	2" x 2"
Nameplate RPM	3,000
No. of Speeds	1
Number of Shafts	1
Number of Speeds	1
Phase	1
Product Type	PSC (Permanent Split Ca.
Rotation	Reversible
RPM	3000
Service Factor (SF)	1.00
Shaft Dia.	5/16"
Shaft Diameter	5/16"
Shaft Length	2-5/16"
Ship Weight	7 lbs.
Standards	UL Recognized (E37403),.
Thermal Protection	Automatic
Usable @ 200V	No
Usable @ 208V	No
Voltage	230
Volts	230

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	grainger.ca	WWG4M090	152.03458282	1	In Stock		DAYTON	6.2	152.03458282 @ 1
	Raptor Supplies	AD8TEC	202.1844825	1	In Stock		DAYTON		202.1844825 @ 1
	emotorpro.com	4M090	229.64	1	In Stock		Dayton	7.0	229.64 @ 1
