- mpn4M263
- brandname: DAYTON
- manufacturername: DAYTON

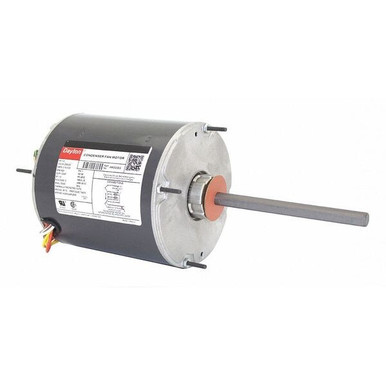

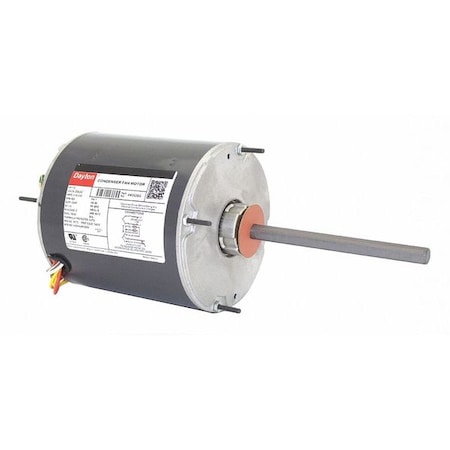

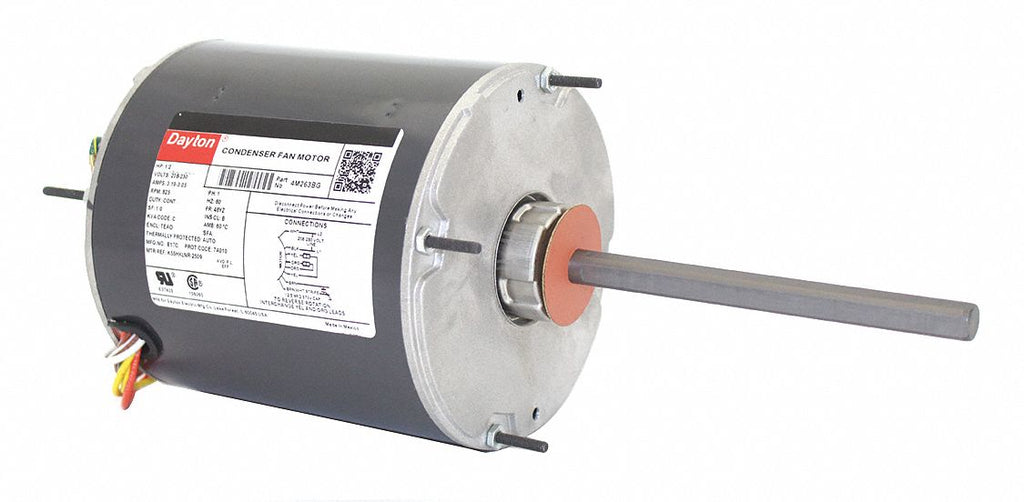

1/2 HP Condenser Fan Motor,Permanent Split Capacitor,825 Nameplate RPM,208-230 Voltage,Frame 48YZ
- Brand: CAI - DAYTON
- PartNumber: 4M263
- PackageQuantity: 1
- Manufacturer: CAI - DAYTON
- Label: CAI - DAYTON
Attributes
| Key | Value |
|---|
| Amps | 2.6-2.9 |
| Bearings | Ball |
| Body Dia. | 5 5/8 in, 5-5/8" |
| Bolt Circle Dia. | 5-1/8", 5 1/8 in |
| Brand | Dayton |
| Capacitor | 12.5MFD @ 370VAC Run Ca. |
| Capacitor Required | WWG2MDV8 |
| Current Stock | 9 |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Enclosure Type | TEAO (Totally Enclosed . |
| Features | Reversing Plug, Totally. |
| Frame | 48YZ |
| Full Load Amps | 3.19/3.05, 2.6 to 2.9 |
| HP | 1/2 |
| Hz | 60 |
| Ins. Class | B |
| Insulation Class | B |
| International Shipping | No |
| Item | Condenser Fan Motor |
| Lead Length | 30", 30 in |
| Lead Time | Expected to ship in 1-2. |
| Length Less Shaft | 6 1/2 in, 6 5/8 in |
| Max. Ambient Temp. | 60 Degrees C |
| Maximum Ambient Tempera. | 60? C |
| Motor Application | HVAC/R |
| Motor Bearings | Ball |
| Motor Design | Permanent Split Capacit. |
| Motor Diameter | 5-5/8" |
| Motor Enclosure Design | Totally Enclosed Air-Ov. |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Stud |
| Motor Service Factor | 1.00 |
| Motor Shaft Design | Double-Flat |
| Motor Shaft Rotation | CW/CCW |
| Motor Shell Length | 6-7/16" |
| Motor Sub Application | Condenser Fan |
| Motor Thermal Protection | Auto |
| Mounting | Stud |
| Mounting Stud Pattern | 3 5/8 in x 3 5/8 in |
| Mpn | 4M263 |
| Nameplate RPM | 825 |
| No. of Speeds | 1 |
| Nominal Efficiency | 63.30% |
| Number of Speeds | 1 |
| Overall Length | 12-1/2", 12 5/8 in |
| Phase | 1, Single |
| Product Type | PSC (Permanent Split Ca. |
| Rotation | Reversible |
| RPM | 825 |
| RPM Range | 0-1,000 |
| Service Factor (SF) | 1.00 |
| Shaft Dia. | 1/2 in |
| Shaft Diameter | 1/2" Double Flatted |
| Shaft Length | 6", 6 in |
| Ship Weight | 17 lbs. |
| SKU | ZO-G0364183 |
| Standards | UL Recognized (E47479),. |
| Stud Quantity | 4 |
| Stud Size | 8-32 UNC x 3/4 in, 8-32. |
| SubCategory | Motors/Ac Motors |
| Thermal Protection | Automatic |
| UPC | 190735330463 |
| Voltage | 208 - 230, 208-230V AC |
| Volts | 208-230 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| AmazonTP | B0042GFQQQ | 142.55 | 1 | In Stock | 2 | DAYTON | | 142.55 @ 1 |
| AmazonSC | B0042GFQQQ | 187.08 | 1 | In Stock | | Dayton | | 187.08 @ 1 |
 | Zoro | G0364183 | 211.99 | 1 | 23 | | Dayton | 21.75 | 211.99 @ 1 |
| grainger.ca | GGE4M263 | 238.94259326 | 1 | In Stock | | DAYTON | 16.32 | 238.94259326 @ 1 |
| emotorpro.com | 4M263 | 240.32 | 1 | In Stock | | Dayton | 17.0 | 240.32 @ 1 |
 | simsupply.com | ZO-G0364183 | 250.97 | 1 | 9 | | Dayton | | 250.97 @ 1 |
 | sustainablesupply.com | C1561277 | 282.76 | 1 | In Stock | | Dayton | 21.75 | 282.76 @ 1 |
 | Raptor Supplies | AD8TGT | 348.702588 | 1 | In Stock | | DAYTON | | 348.702588 @ 1 |
