Cutler & Hammer EHD3015L

B0027S8DI4

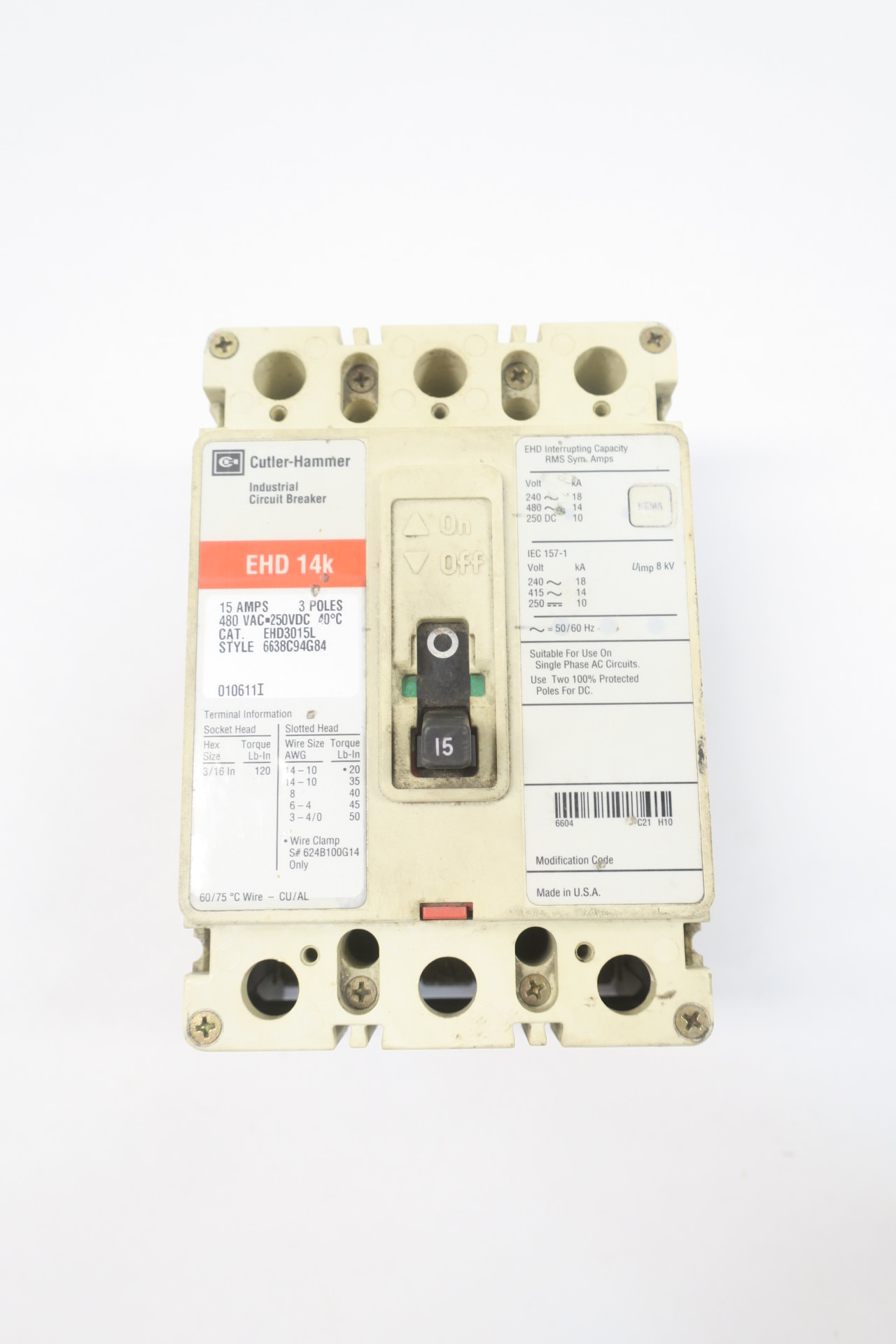

CUTLER HAMMER EHD3015L 480 VAC / 250 VDC MAX, WITH NON-INTERCHANGEABLE TRIP UNIT, 14 KAIC AT 480 VAC, THERMAL-MAGNETIC CIRCUIT BREAKER, 15 AMP RATING, LINE AND LOAD TERMINALS, 3 POLE, TYPE EHD

CUTLER HAMMER EHD3015L 480 VAC / 250 VDC MAX, WITH NON-INTERCHANGEABLE TRIP UNIT, 14 KAIC AT 480 VAC, THERMAL-MAGNETIC CIRCUIT BREAKER, 15 AMP RATING, LINE AND LOAD TERMINALS, 3 POLE, TYPE EHDzoom

Attributes

Key Value
100% RatedNo
Alarm SwitchOptional
Alternate Mfr Part Numb.EHD3015L
Amperage Rating15 A
Amps15
ApplicationElec Assemblies, Panels.
Auxiliary SwitchOptional
BrandEaton
Catalog NumberEHD3015L
Connection TypeLine/Load/Pressure
Country of OriginDominican Republic
CSA Standard22.2
Current Rating15 A
Description:TYPE EHD BRK 3P 15A 480.
Dimensions6 in H x 4.13 in W x 3..
DisplayEHD3015L TYPE EHD BREAK.
Enclosure TypeEEMAC 1/NEMA AB1-1993
Family SeriesCutler Hammer, Div of E.
FrameF
Frequency Rating50/60 Hz
Gross Weight4.18 lbs
IEC StandardEN60898/60947-2
Interrupt Rating17 kA at 277 VAC/10 kA .
Interrupt Rating AC14 kA
Item NumberEHD3015L
Item TypeMolded case circuit bre.
kAIC @ 240 VAC18
kAIC @ 480 VAC14
Made in USANo
ManufacturerCutler Hammer, Div of E.
Manufacturer Part NumberEHD3015L
Max Voltage480 VAC
MFG Part #:EHD3015L
MountingPanel
Mounting TypeSurface
Net Weight4.1 lbs
Neutral PoleNo
Neutral ProtectionNo
Number of Poles3
Part NumberEHD3015L
Phase3
Poles3
Product SeriesC
ProtectionBranch Circuit
SeriesC Series
Shunt TripOptional
StandardUL Listed
Supplier:CUTLER-HAMMER INC
Temperature Rating40 deg C
Terminals IncludedLine and Load
Trip TypeNon-Interchangeable/The.
Trip UnitFixed Thermal / Fixed M.
TypeType EHD
UL Standard489
Undervoltage ReleaseOptional
UPC786679317051
UPC:786679317051
Voltage Rating277 VAC, 125 VDC
Volts AC480
Volts DC250
Wire Size14 to 10 AWG Al/Cu

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomNRI IndustrialD59458939.541In StockCUTLER HAMMER39.54 @ 1
AmazonSCB00A2BR2P8242.01In StockCutler & Hammer242.0 @ 1
thumbzoomkempstoncontrols.co.ukEHD3015L488.38251151In StockEaton488.3825115 @ 1
simplybreakers.comEHD3015L499.991In StockEaton Cutler-Hammer499.99 @ 1
thumbzoomKelly HayesEHD3015L549.291In StockEaton549.29 @ 1
us.rs-online.com72811931618.1112Eaton - Cutler Hammer618.11 @ 1
Newark46K7875642.831In StockEATON CUTLER HAMMER642.83 @ 1
thumbzoomcappusa.com511954701.671In StockEaton701.67 @ 1
thumbzoomWalker IndustrialEHD3015L911.261In StockEaton Cutler-Hammer911.26 @ 1
thumbzoommotorsandcontrol.comEHD3015L911.261In StockEaton Cutler Hammer911.26 @ 1
thumbzoomturtle.comCUH EHD3015L920.181In StockEaton920.18 @ 1
thumbzoomPlatt.com0166510956.631In StockEaton956.63 @ 1
thumbzoomGalcoEHD3015L-CHGP981.351In StockCutler Hammer, Div of Eaton Co4.18981.35 @ 1
thumbzoomcrescentelectric.com434861001.271In StockEaton1001.27 @ 1
kscdirect.comCH EHD3015L1230.71In StockCUTLER-HAMMER INC1230.7 @ 1
thumbzoombscsource.comEHD3015L1234.591In StockEaton Cutler-Hammer1234.59 @ 1
Airline HydraulicsEATON EHD3015L1370.021In StockEaton1370.02 @ 1
kirbyrisk.com23703501558.911In StockCutler Hammer1558.91 @ 1
thumbzoomNational Supply Network48830391926.911In StockEaton Cutler-Hammer1926.91 @ 1
