Ruland Manufacturing Co Inc

B07DL1WY83

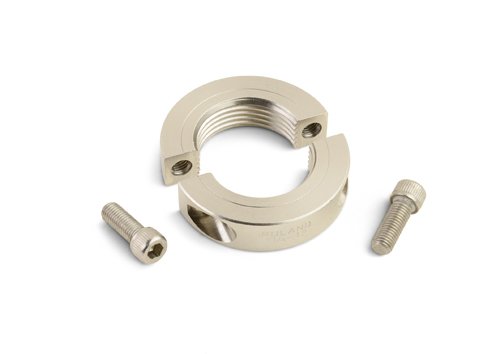

Ruland Manufacturing Co Inc TSP-3-24-SS - Shaft Collar - TSP Series, Two Piece - Clamp, Stainless Steel - 303, Threaded Bore,x23;10-24 TPI in ID.6250 in OD, 0.281 in Wide

Ruland Manufacturing Co Inc TSP-3-24-SS - Shaft Collar - TSP Series, Two Piece - Clamp, Stainless Steel - 303, Threaded Bore,x23;10-24 TPI in ID.6250 in OD, 0.281 in Widezoom

Attributes

Key Value
Bore Dia.#10-24
Bore Type - CollarsThreaded Bore
Clearance Dia.0.75 in
Clearance Diameter (C) .0.750 in
Collar StyleClamp, Threaded
Country of OriginUSA
Country of Origin (subj.United States
Dimension TypeInch
Finish SpecificationBright, No Plating
Forged Clamp Screw#4-40
Hex Wrench Size3/32 in
ItemShaft Collar
Item - Shaft CollarsShaft Collar
ManufacturerRuland Manufacturing
Material303 Stainless Steel
Material - Collars303 Stainless Steel
Material SpecificationType 303 Austenitic, No.
Note 1Performance ratings are.
Number of Pieces2
Number of Screws2 ea
Operating Temp. Range-40 Degrees to 350 Degr.
Outer Diameter (OD)5/8 in
Outside Dia.5/8 in
Recommended Gap0.047 in
Recommended Shaft Toler.+0.0000 in / -0.0005 in
Screw FinishBright
Screw Location (R)0.210 in
Screw Material18-8 300 Series Stainle.
Screw Size#4-40
Seating Torque8 lb-in
Shaft Locking Type - Co.2 Piece Clamp
System of MeasurementInch
Tariff Code8483.60.8000
Temperature-40?F to 350?F (-40?C t.
Thread Class3B
Threaded Bore (B)#10 - 24 TPI
UNSPC31162811
UPC634529029619
UPC Code63452902961
Weight (lbs)0.020100
Width9/32 in
Width (W)0.281 in
Width Tolerance+0.003 in / -0.010 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
AmazonSCB0063LA76M6.141In StockRuland6.14 @ 1
thumbzoomZoroG817759217.01In Stock10Ruland0.0217.0 @ 1
thumbzoomsustainablesupply.comC164663318.271In StockRuland Manufacturing0.0218.27 @ 1
thumbzoomRulandTSP-3-24-SS20.081In StockRuland0.020120.08 @ 1
us.rs-online.com7233784037.641In StockRuland Manufacturing37.64 @ 1
thumbzoomRaptor SuppliesAF9YFJ43.4649151In StockRULAND MANUFACTURING43.464915 @ 1
motionindustries.com0233821857.511In StockRuland Manufacturing Co Inc57.51 @ 1
