- mpnDJ7P2HM
- brandname: US Motors
- manufacturername: US Motors

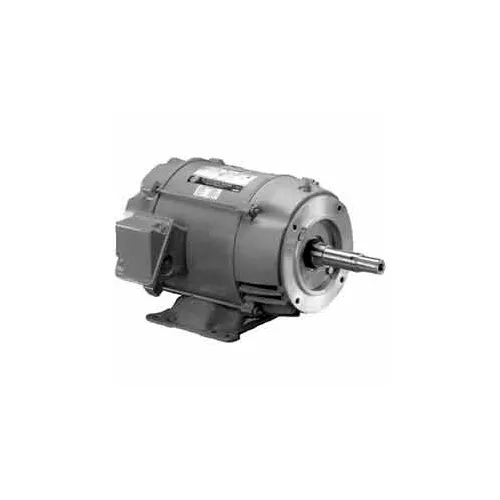

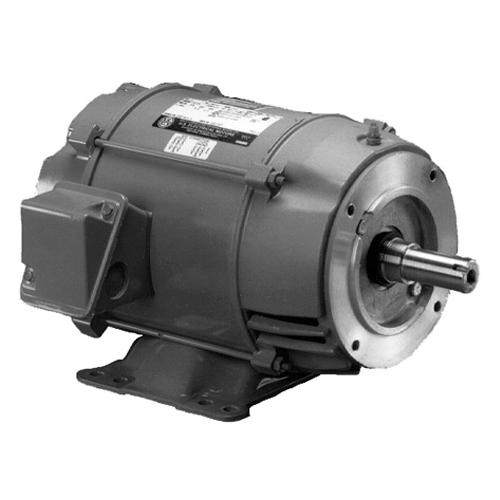

U.S. Motors US Motors Pump, 7.5 HP, 3-Phase, 1765 RPM Motor, DJ7P2HM
- Brand: US Motors
- PartNumber: DJ7P2HM
- PackageQuantity: 1
- Manufacturer: U.S. Motors
- Label: U.S. Motors
Attributes
| Key | Value |
|---|
| Amps | 21.4 |
| Bearings | Ball |
| Composition | Rolled Steel |
| Construction | Rolled Steel |
| Country of Origin (subj. | Mexico |
| Drive End Flange Type | C-Face |
| Efficiency | 91% |
| Enclosure | Open Drip Proof, Open |
| Enclosure Type | ODP (Open Dripproof) |
| Estimated Weight | 99.00 |
| Family Series | US Motors Motors |
| FL Amps | 21.4 |
| FL Efficiency | 91 |
| Frame | 213JM |
| Frequency | 60 Hz |
| Gross Weight | 90 lbs |
| Hertz | 60 |
| Horsepower | 7-1/2 hp |
| HP | 7-1/2, 7.5 |
| Hz | 60 |
| Insulation Class | F |
| Item | Motor,3PH,7.5HP,1800,20. |
| Item Number | DJ7P2HM |
| Kilowatts | 5.6 kW |
| Manufacturer | US Motors (Nidec), US M. |
| Manufacturer Model # | CS22 |
| Manufacturer Part Number | DJ7P2HM |
| Maximum Ambient Tempera. | 40? C |
| Model Number | CS22 |
| Mounting | Foot Mount, Base/Face |
| Mounting Type | Foot Mount |
| NEMA Frame | 213JM |
| Net Weight | 0 lbs |
| Nominal Voltage | 240 VAC |
| Number of Poles | 4 |
| Number of Speeds | 1 |
| Part Number | DJ7P2HM |
| Phase | 3 |
| Product Type | Pump, Three Phase |
| Rotation | Reversible |
| RPM | 1,765 RPM, 1765 |
| Service Factor | 1.15 |
| Ship Weight | 90 lbs. |
| Speed (RPM) | 1765 |
| Voltage | 200V |
| Voltage (AC) | 200 VAC |
| Volts | 200 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G0398874 | 649.0 | 1 | In Stock | | U.S. Motors | 90.0 | 649.0 @ 1 |
 | Global Industrial | WBB465443 | 714.0 | 1 | In Stock | | US Motors | | 714.0 @ 1 |
 | emotorpro.com | DJ7P2HM | 743.2 | 1 | In Stock | | U.S. Motors | 90.0 | 743.2 @ 1 |
 | National Supply Network | B465443 | 762.39 | 1 | In Stock | | US MOTORS | | 762.39 @ 1 |
 | motorsandcontrol.com | DJ7P2HM | 783.41 | 1 | In Stock | | US Motors (Nidec) | 99.0 | 783.41 @ 1 |
 | Galco | DJ7P2HM-USM | 960.42 | 1 | In Stock | | US Motors | 90.0 | 960.42 @ 1 |
| motionindustries.com | 04636146 | 1164.35 | 1 | In Stock | | US Motors (Nidec) | | 1164.35 @ 1 |
