WEG 00518ET3E184TC-W22

B073WMHRQK

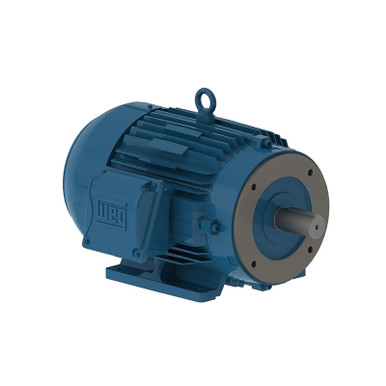

WEG Mtr,3 Ph,5 HP,1755,230/460V,Eff 89.5 (00518ET3E184TC-W22)

WEG Mtr,3 Ph,5 HP,1755,230/460V,Eff 89.5 (00518ET3E184TC-W22)zoom

Attributes

Key Value
Amperage Rating14.3 to 12.9/6.45 A
Application TypeGeneral Purpose AC Moto.
Bearing TypeBall
BrandWEG
CC NumberCC029A
ClassificationThree Phase
CompositionCast Iron
ConditionNew
ConstructionCast Iron
Country of Origin (subj.Multiple
Current Stock36
Degree of ProtectionIP55
Description:MOTOR 5HP 4P 182/4TC WF.
Drive End Flange TypeC-Face
DutyContinuous
Duty CycleContinuous
Efficiency %89.5 %
EnclosureTEFC, IC411-TEFC, Total.
Enclosure TypeTotally Enclosed Fan Co.
Estimated Weight109.00
Family SeriesWEG Electric Motors
FL Amps6.45
FL Efficiency89.5
FlangesWithout
FRAME182/4TC
Frame182/4T, 182TC, 182/4TC,.
Frame MaterialCast Iron
Frame RemarksFooted
Frequency60 Hz
Frequency Rating60 Hz
Full Load Amps6.45, 12.9/6.5
Full Load Amps @ 50Hz6.1, 6.4, 7.4, 7.7
Green Certification or .NEMA Premium(R) Rated
Gross Weight110 lbs
Hertz60
Horsepower5 hp
HP5
HP @ 50Hz4, 5
Hz60
Ins. ClassF
Insulation ClassClass F
International ShippingNo
Inverter RatedYes
ItemGeneral Purpose Motor
Item ConditionFactory New
Item Number00518ET3E184TC-W22
Kw3.7
Length Less Shaft13 1/8 in
ManufacturerWEG Electric, WEG, WEG .
Manufacturer Part Number00518ET3E184TC-W22
Manufacturers Warranty .3 yr
MaterialCast Iron
Max. Ambient Temp.40 Degrees C, 40 Degre.
MFG Part #:00518ET3E184TC-W22
Model11610620
Motor ApplicationGeneral Application
Motor BearingsBall
Motor Design3-Phase
Motor Efficiency GroupNEMA Premium Efficient
Motor Enclosure DesignTEFC, Totally Enclosed .
Motor Frame MaterialCast Iron
Motor Mounting PositionAll Angle
Motor Mounting TypeFOOT, Face/Base
Motor Service Factor1.25
Motor Shaft DesignKeyed
Motor Shaft RotationCW/CCW
Motor Thermal ProtectionNone
MountingFoot Mount, Foot-mounte.
Mounting TypeFooted, Foot Mount
Mpn00518ET3E184TC-W22
Nameplate RPM1,755, 1800
NEMA DesignB
NEMA Frame184TC
Net Weight108 lbs
No. of Speeds1
Nominal Efficiency89.5 %, 89.5
Nominal Voltage208 VAC
Number of Poles4
Number of Speeds1
Output Rating25 HP
Overall Length15 7/8 in, 15.86
Part Number00518ET3E184TC-W22
Phase3, Three
Product TypeGeneral Purpose
RotationCW/CCW
RPM1755, 1,800 RPM, 1800
RPM @ 50Hz1,460
RPM Group1701-1800
RPM Range1,701-1,800
Service Factor1.25
Service Factor @ 50Hz1.15
Shaft Dia.1 1/8 in
Shaft Length2 3/4 in
Shaft Size1-1/8 in Dia x 2-3/4 in.
SKUZO-G1479816
Special Features4-Pole, Direct On Line .
Speed1800 rpm
Speed (RPM)1800
StandardNEMA MG-1
StandardsUL, CSA, CE, NOM, CE, C.
SubCategoryMotors/Ac Motors
Supplier:WEG ELECTRIC CORP
Synchronous Speed1800 rpm
Terminal BoxLeft position
UPC:7891327533523
Usable @ 200VNo
Usable @ 208VYes
Voltage575 V, 230/460V AC, 208.
VOLTAGE230/460
Voltage (AC)208 VAC
Voltage @ 50Hz380V AC, 400V AC, 415V .
Voltage Compatibility200-230/440V AC, 200-23.
Volts208/230/460
Weight105 lb
WEIGHT107

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.com00518ET3E184TC-W22528.01In StockWEG105.0528.0 @ 1
AmazonTPB073WMHRQK553.371In Stock3Weg Electric553.37 @ 1
thumbzoomvfds.com00518ET3E184TC-W22580.01In StockWEG580.0 @ 1
thumbzoomWalker Industrial00518ET3E184TC-W22607.51In Stock17WEG607.5 @ 1
thumbzoomZoroG1479816607.5164Weg95.0607.5 @ 1
thumbzoommotorsandcontrol.com00518ET3E184TC-W22607.518WEG Electric109.0607.5 @ 1
thumbzoommidwestapplianceparts.com00518ET3E184TC-W22-WG-P617.831In StockWeg617.83 @ 1
kscdirect.comWEG 00518ET3E184TC-W22622.061In StockWEG ELECTRIC CORP622.06 @ 1
thumbzoomMRO Supply1312200639.691In StockWEG639.69 @ 1
thumbzoomDealers Electric00518ET3E184TC-W22665.61In StockWeg109.0665.6 @ 1
thumbzoomGalco00518ET3E184TC-W22-WEG678.8615WEG Electric110.0678.86 @ 1
thumbzoomindustrialrefrigerationparts.com00518ET3E184TC-W22708.671In StockWEG708.67 @ 1
thumbzoomRadwell00518ET3E184TC-W22740.01In StockWEG740.0 @ 1
thumbzoomsimsupply.comZO-G1479816773.221In StockWeg773.22 @ 1
Airline HydraulicsWEG 00518ET3E184TC-W22835.051In StockWEG835.05 @ 1
grainger.caWWG6FDR0843.691410521In StockWEG95.0843.69141052 @ 1
thumbzoomPurvis00518ET3E184TC-W22899.11In StockWEG899.1 @ 1
thumbzoomNational Supply NetworkB8735041032.391In StockWeg Electric Motors1032.39 @ 1
thumbzoomRaptor SuppliesAE8TCA1177.9997581In StockWEG1177.999758 @ 1
