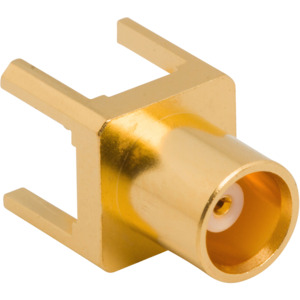

AMPHENOL RF 919-NM109J-51P CONNECTOR, MCX, JACK, 50 OHM, PCB (5 pieces)

AMPHENOL RF 919-NM109J-51P CONNECTOR, MCX, JACK, 50 OHM, PCB (5 pieces)zoom

Attributes

Key Value
Anglestraight
ApplicationCommercial
Base Product Number919NM
Body FinishGold
Body materialBeryllium Copper
Body MaterialBeryllium Copper
Body platingGold
Cable Group-
CategoryConnectors, Interconnec.
Center Contact MaterialBeryllium Copper
Center Contact PlatingGold
Connectorsocket
Connector StyleMCX
Connector TypeJack, Female Socket
Contact materialBeryllium Copper
Contact MaterialBeryllium Copper
Contact PlatingGold
Contact platinggold-plated
Contact TerminationSolder
DescriptionCONN MCX JACK STR 50 OH.
Detailed DescriptionMCX Connector Jack, Fem.
Dielectric MaterialPolytetrafluoroethylene.
Digi-Key Part NumberARF1771-ND
Electrical mountingTHT
Fastening TypeSnap-On
FeaturesNon-Magnetic
Frequency6GHz
Frequency - Max6 GHz
Housing ColorGold
Housing FinishGold
Housing MaterialBrass
Impedance50Ohm, 50 Ohms
Includes-
Ingress Protection-
Insertion Loss0.1dB
Insulator materialPTFE
Kind of connectorfemale
ManufacturerAmphenol RF
Manufacturer Product Nu.919-NM109J-51P
Manufacturer Standard L.6 Weeks
Mating Cycles500
Mating TypeSnap-On
Max. frequency6GHz
Mechanical durability500 cycles
Mechanical mountingon PCBs
MfrAmphenol RF
Mounting Feature-
Mounting TypePCB Mount ; Through Hol.
Number of Ports1
Operating Temperature-40?C ~ 155?C
Operating temperature-65...165?C
PackageBulk
PackagingBulk
Primary TypeMCX
Product StatusActive
Series-, MicroMate Series
Shield TerminationSolder
Spatial orientationstraight
Special FeaturesNonMagnetic
TerminationSolder
TypePCB Jack
Type of connectorMCX
Voltage Rating335 V
Wave impedance50?

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomNewark51M24692.2812AMPHENOL RF2.28 @ 1
Hawk Electronics919-NM109J-51P6.9500In StockAmphenol-RF6.9 @ 500
Onlinecomponents.com919-NM109J-51P7.111In StockAMPHENOL RF7.11 @ 1
us.rs-online.com701417648.191000In StockAmphenol RF8.19 @ 1000
thumbzoomjensentools.com57644.19.231In StockAmphenol RF9.23 @ 1
HotendaH83663210.471In StockAmphenol RF10.47 @ 1
thumbzoomDigi-Key264268411.4481652Amphenol RF11.448 @ 1
Radwell919-NM109J-51P12.61In StockAMPHENOL12.6 @ 1
TME919-NM109J-51P14.261In StockAMPHENOL RF14.26 @ 1
AmazonTPB00M1IM9E415.361In Stock2Amphenol RF15.36 @ 1
AmazonUNKB00M1IM9E415.361In StockAmphenol RF15.36 @ 1
